Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
3403,000121°
3554,000121°

Key Features

 Very simple design, the products CHIODO can be used both hidden inside the bushes, or in view. In the first case it highlights the lighting capacity, generating an intense light particularly suitable for scenic lighting of gardens or large vases with flowers and greenery. In the second case it can create magical compositions by using elements of different heights, such as small forests of pure light. CHIODO can be fixed in the ground by its spike, or on the floor through a small base. The product is available also in the applique version, which radiates the wall with a soft light and creates a unique and suggestive atmosphere. CHIODO applique can be used in different combinations, that give life to original lighting effects.

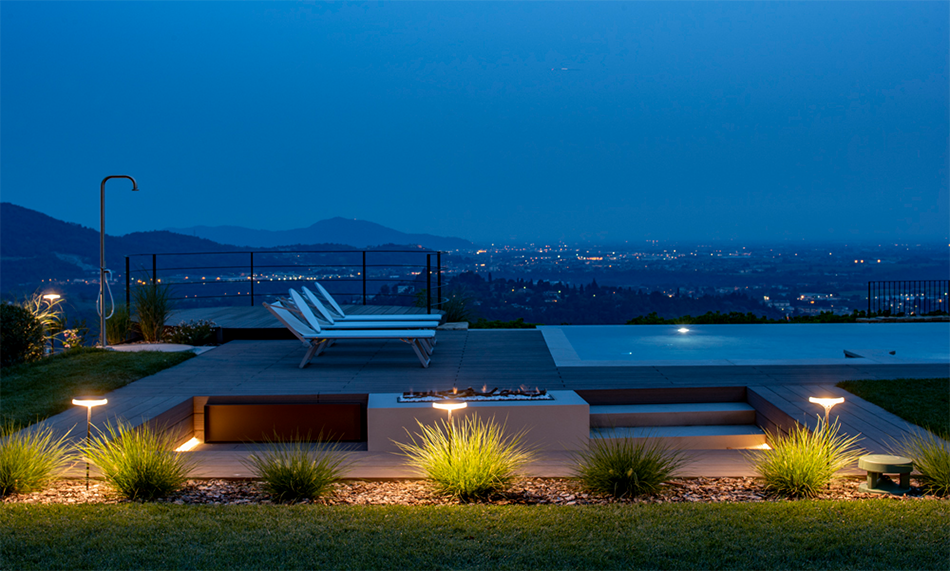

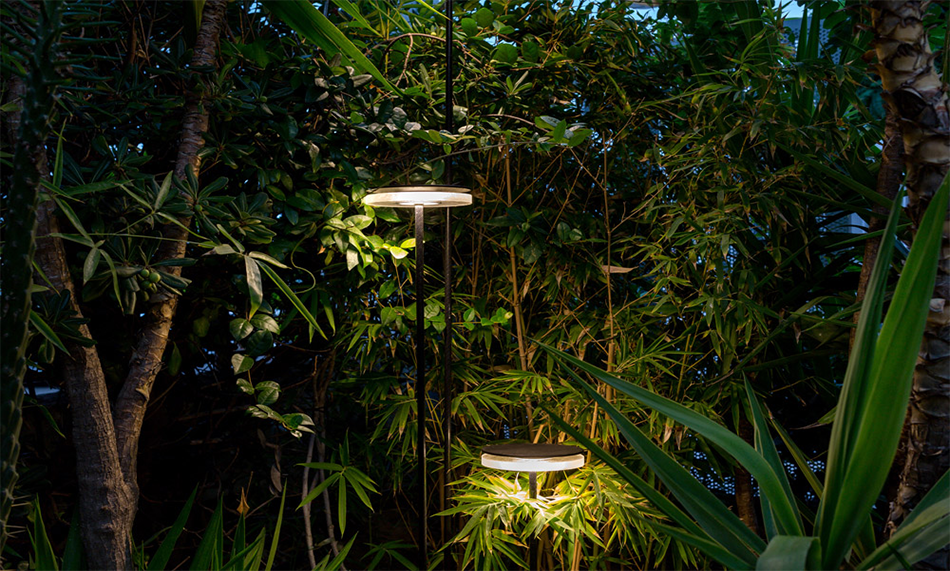

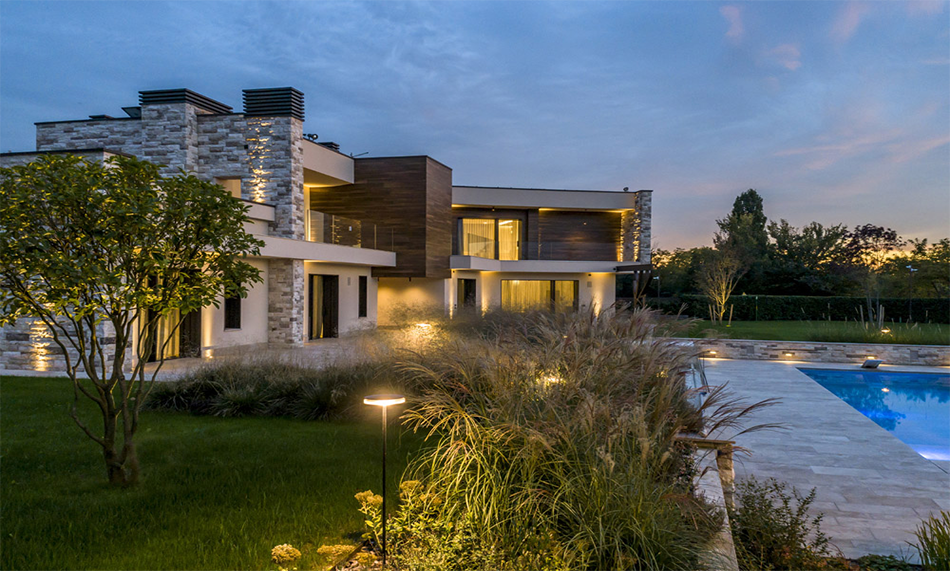

Applications

Distribution

121°

Specification

aluminium coated carbon fibre rod. Pickets for fixing in the ground with AISI 316 stainless steel. PMMA opal diffuser screen. No visible screws. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.

Copy specification to clipboard

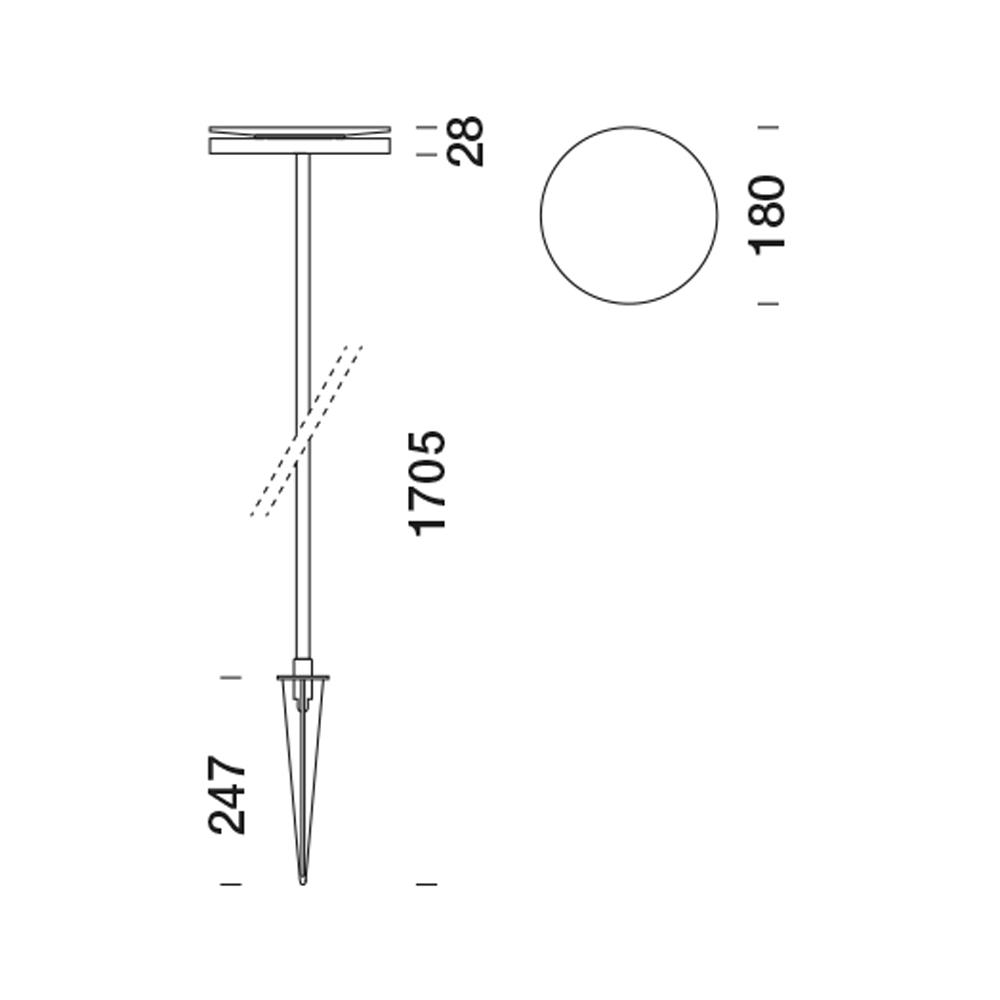

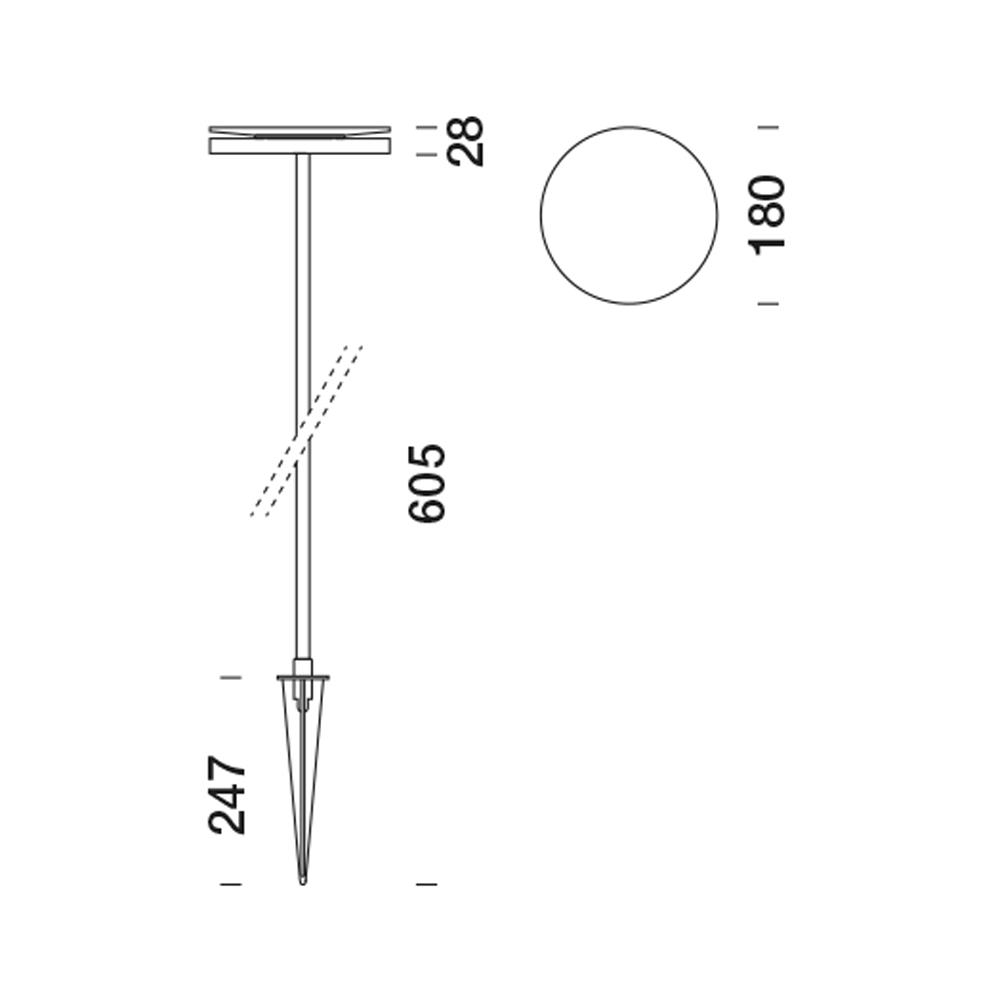

Dimensions

Feature
