MINI ONE Wall

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
203,0001 Lens
214,0001 Lens
1053,0001 Lens / 1 Opening
1104,0001 Lens / 1 Opening
2453,0001 Opening
2554,0001 Opening
4653,00012°
4854,00012° (1 light)
403,0002 Lenses
424,0002 Lenses
4903,0002 Openings
5104,0002 Openings
4353,00033° (2 opening)
4504,00033° (2 opening)
803,0004 Lenses
834,0004 Lenses
7003,0004 Openings
7504,0004 Openings
853,00050° (1 opening)
904,00050° (1 opening)
12
Download all Photometry and BIM Data

Key Features

The basic version can be installed to get grazing light on the walls and ceiling and as a floodlight with the supplied bracket. The purity of MINI ONE is enhanced by the total absence of visible screws and wall mount totally hidden. It is available with two and four windows and, alternatively, with blades of light. The bollard version is designed for lighting pedestrian walkways and gardens.

Applications

Distribution

1 Lens
1 Lens / 1 Opening
1 Opening
12°
12° (1 light)
2 Lenses
2 Openings
33° (2 opening)
4 Lenses
4 Openings
50° (1 opening)
50° (2 openings)
50° (4 openings)

Specification

Die-cast body and flange made of aluminium alloy with very low copper content. No visible screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

 Copy specification to clipboard

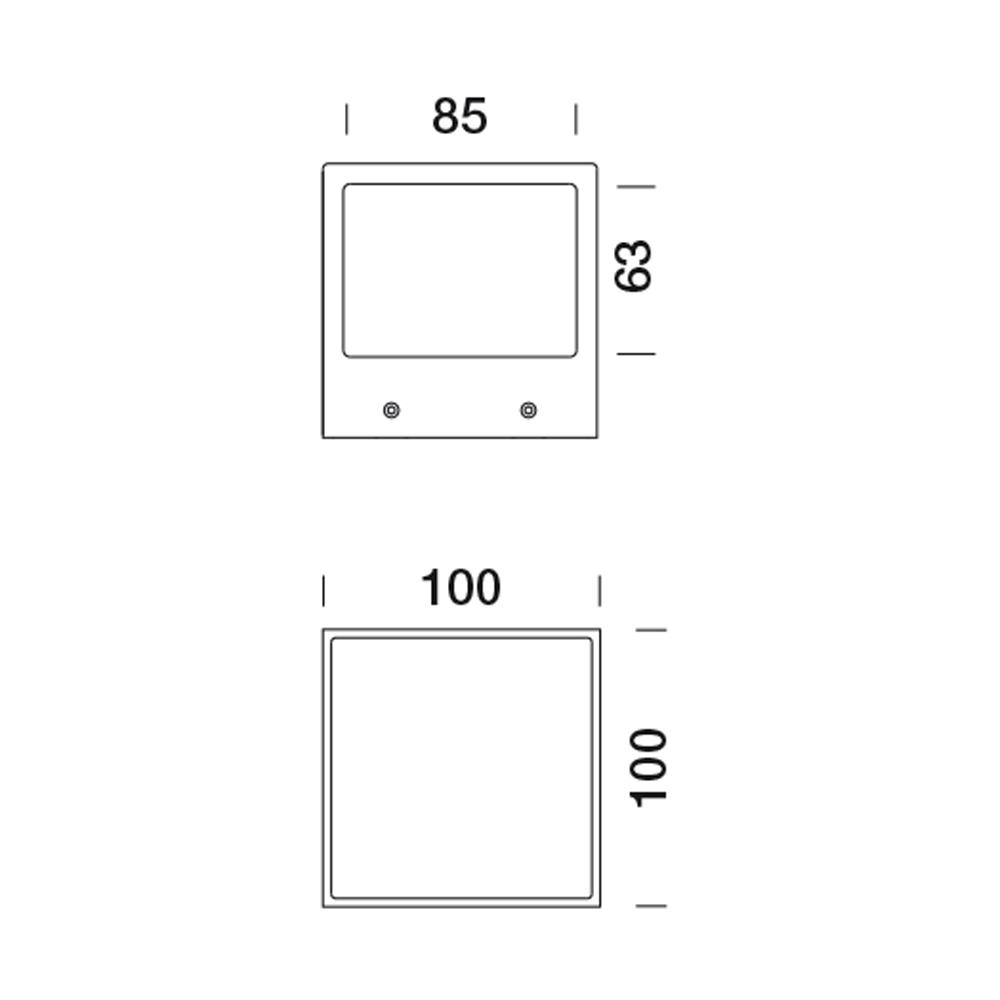

Dimensions
