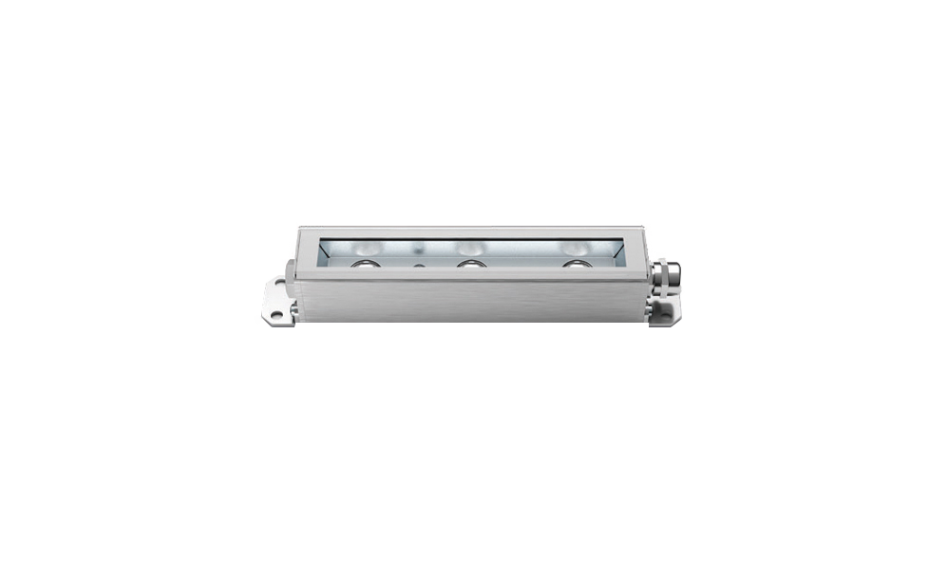

MINI CORNICHE FULL INOX

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
2503,00013°
2604,00013°
4903,00013°
5204,00013°
2603,00026°
2704,00026°
5153,00026°
5354,00026°
2353,00040°
2454,00040°
4653,00040°
4804,00040°
2153,000Elliptical
2254,000Elliptical
4303,000Elliptical
4454,000Elliptical
Download all Photometry and BIM Data

Key Features

The applications are almost limitless: from the lighting of facades and big walls to the enhancement of monuments or architectures. A lighting system that is flexible and customizable, available in various sizes and powers. The stainless steel product can operate in immersion and out of water. MINI CORNICHE is developed as recessed walk over fitting or to light the surfaces from below and as a wall light.

Applications

Distribution

13°
26°
40°
Elliptical

Specification

AISI 316L stainless steel body with brushing treatment. 5 mm thick extra-clear flat tempered glass. IP68 protection rating. Product supplied with 5 m cable. External power supply by 24V DC transformer. The product can also be installed out of water. Gore valve to prevent condensation inside the product.

 Copy specification to clipboard

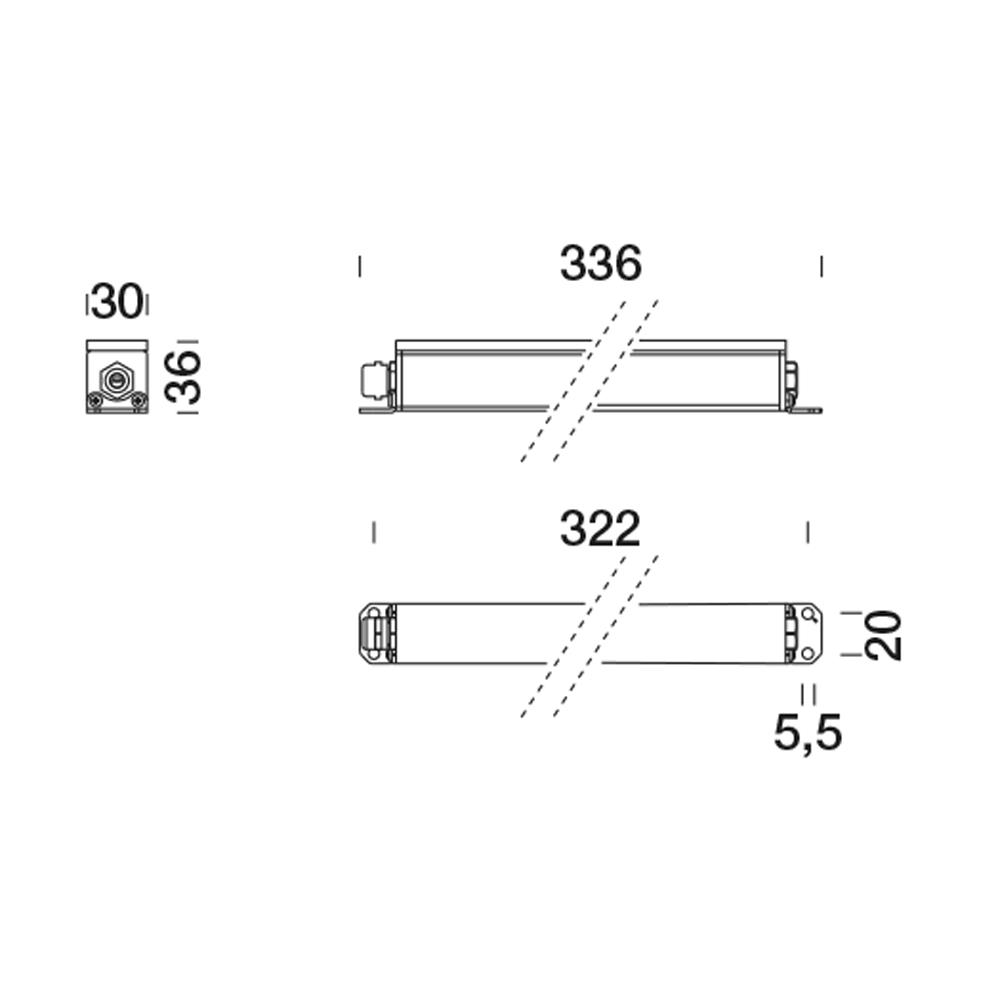

Dimensions
