Holophane - MICRO FULL INOX

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

12°

33°

44°

Lumen (lm)	Colour Temperature (K)	Distribution
465	3,000	12°
485	4,000	12°
465	3,000	12°
485	4,000	12°
435	3,000	33°
450	4,000	33°
435	3,000	33°
450	4,000	33°
440	3,000	44°
460	4,000	44°
440	3,000	44°
460	4,000	44°

Download all Photometry and BIM Data

Gallery

Key Features

MICRO stands for pure light: it produces a light beam which is important when switched on, to disappear from view once it is off. Those features, with the simple ease of installation, allow MICRO to be used as a single light point or in series, either for the floor or for the ceiling. By means of monochromatic or dynamic light, it can highlight even individual architectural elements such as columns and statues to the utmost.

Applications

External

Residential

Public Spaces

Distribution

12°

33°

44°

Specification

Body and closing ring in AISI 316L stainless steel. No visible screws and fixing to the outer casing with a click system. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. Outer casing and connector to be ordered separately.

Copy specification to clipboard

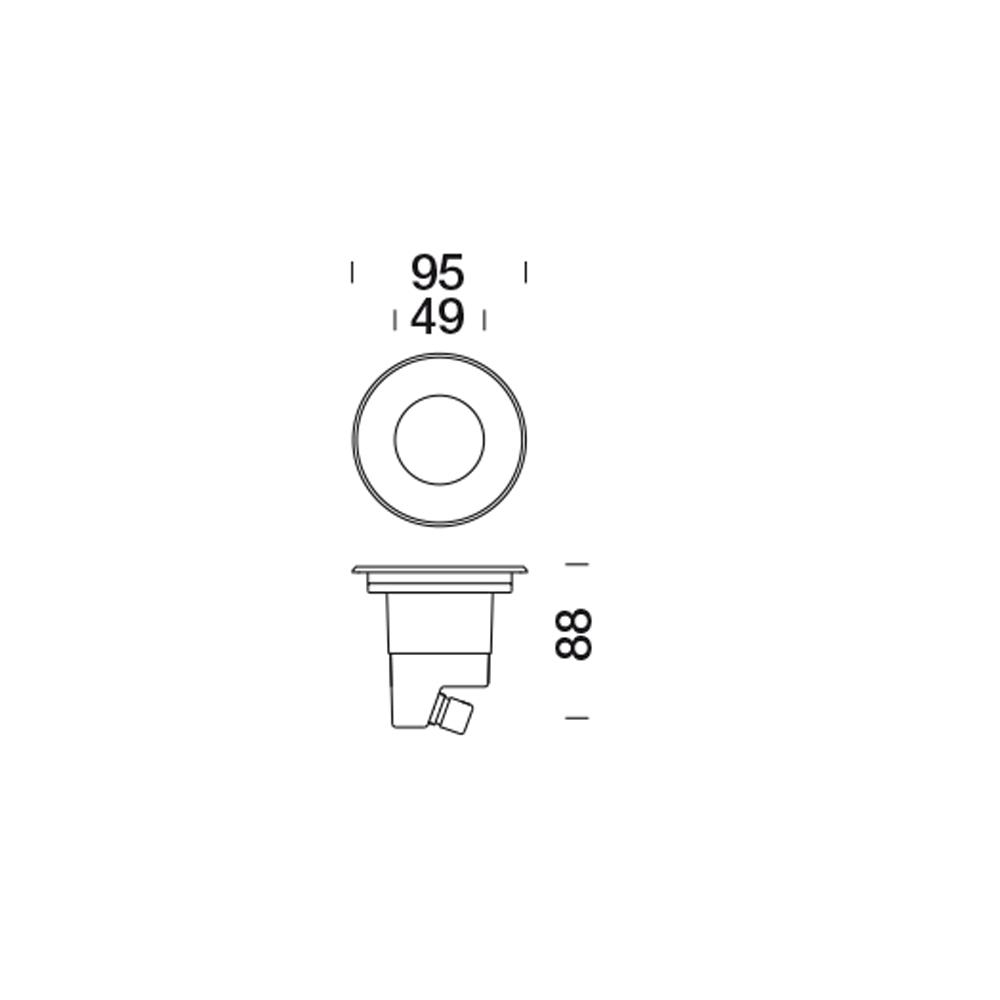

Dimensions

MICRO FULL INOX

Product code: MWO

A recessed fitting from the minimum size, only 95 mm diameter.

Lumen	435 - 485
Power consumption	5.9 - 6
Distributions	3
IK Rating	IK10
IP Rating	IP66/68
Colour range	3,000 - 4,000
