PICO FULL INOX

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
703,00020°
754,00020°
553,00048°
604,00048°
Download all Photometry and BIM Data

Key Features

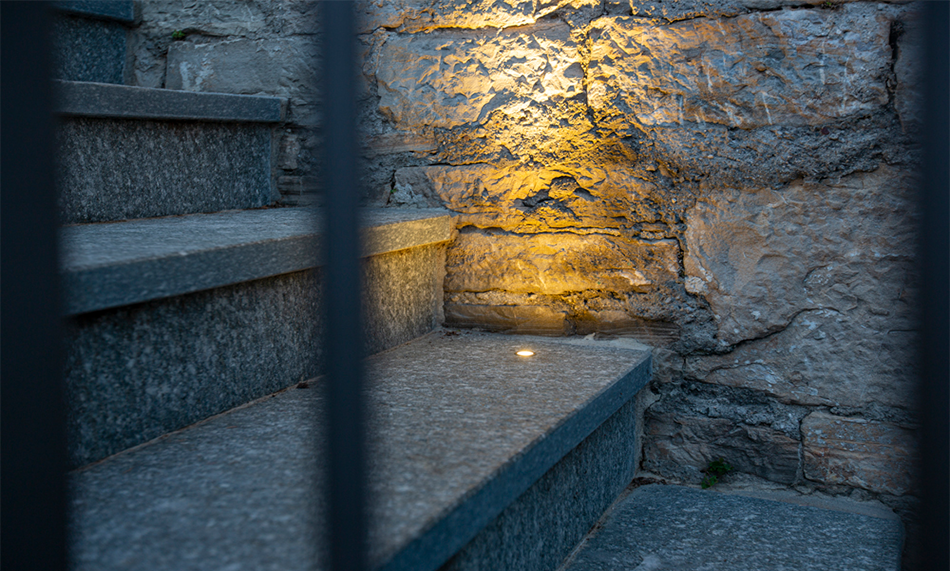

PICO, whose name means “small quantities”, is a minimal product in design and size. For that reason it can be used in multiple series, especially as step marker.

Applications

Distribution

20°
48°

Specification

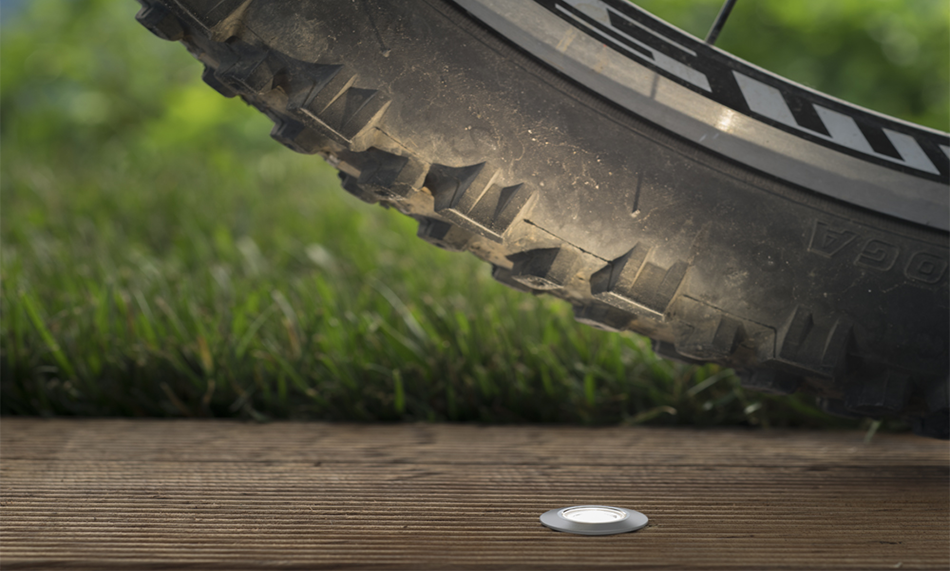

Body made in AISI 316L stainless steel. Product with no visible screws, fastening with sealing OR. IP68 protection rating with Full Dry system preventing condensation inside the product. Recessed box and junction box to be ordered separately. Installation in recessed box set in concrete, with a 20-30 cm gravel drain bed. External transformer to be ordered separately. Only an IP68 rated connection to power supply cable can guarantee the IP68 protection rating to the luminaire. Maximum static load: 500 kg.

 Copy specification to clipboard

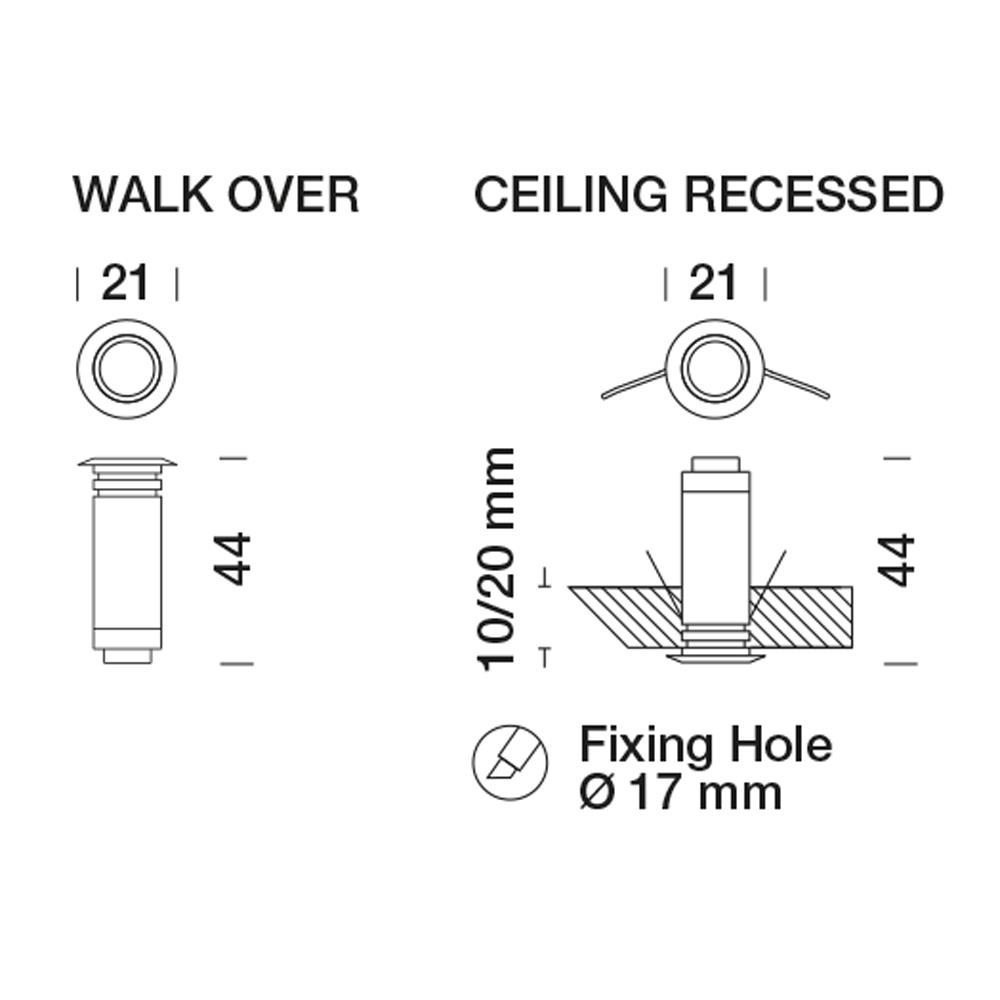

Dimensions
