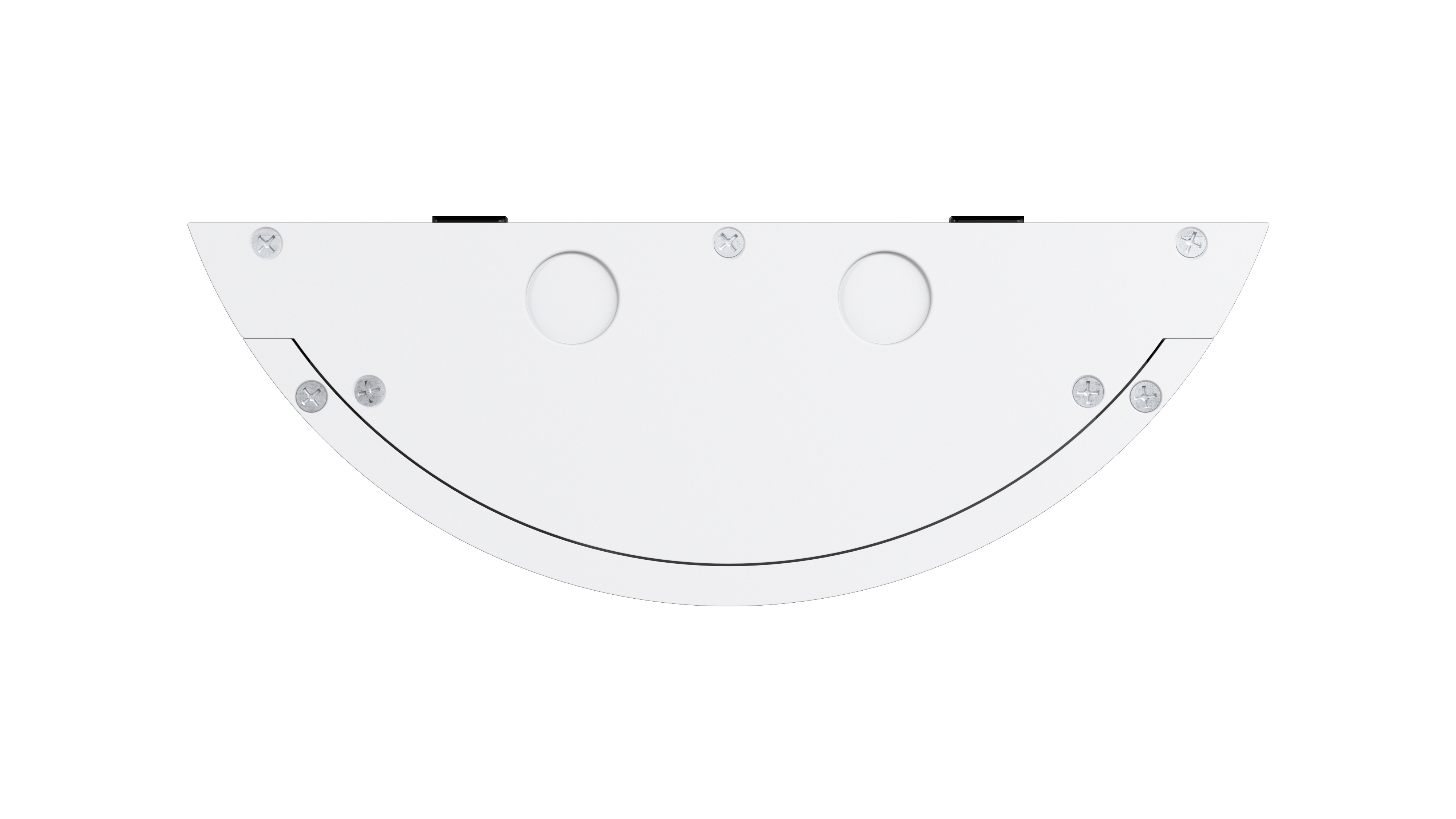

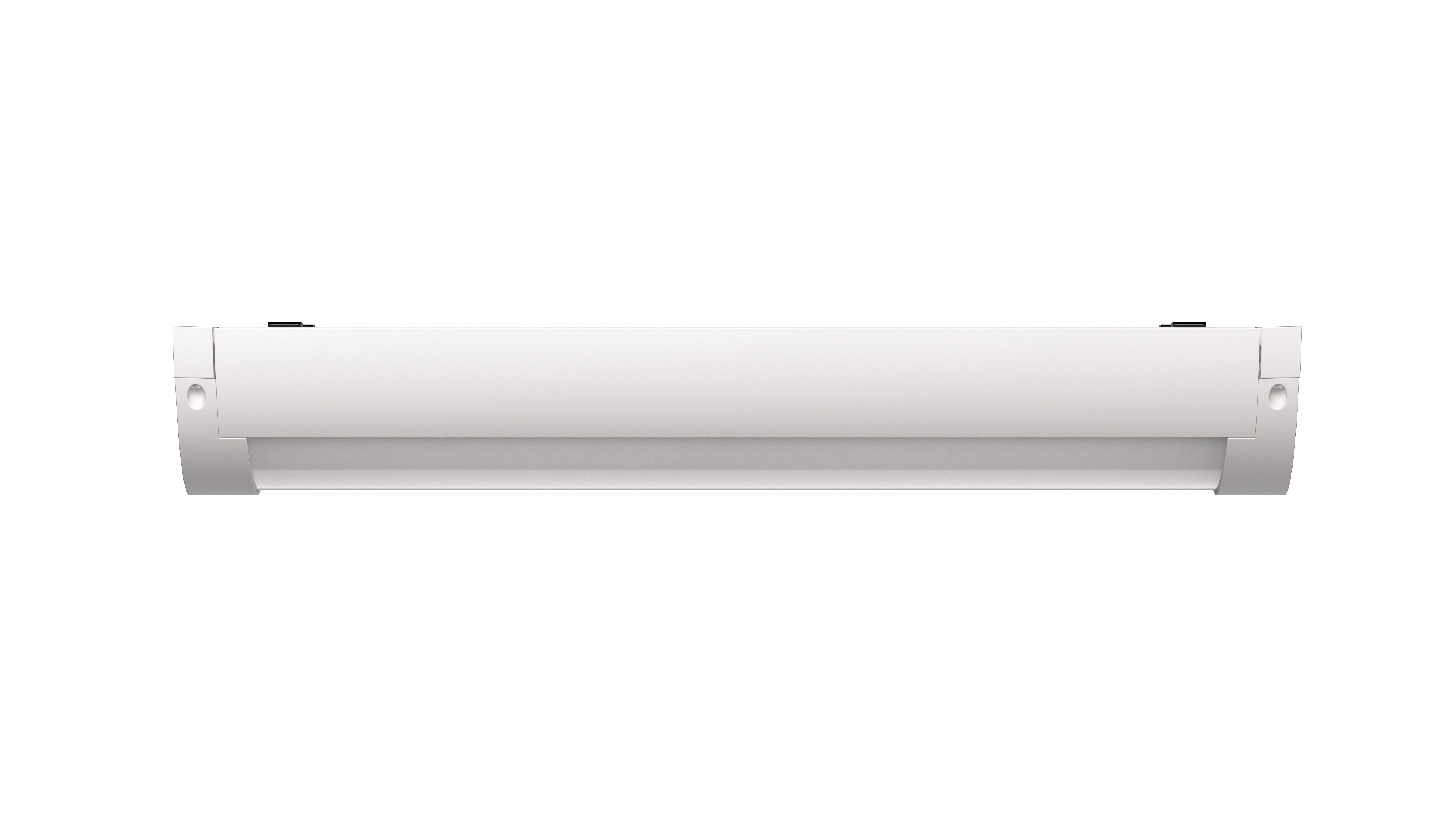

The luminaire shall consist of an extruded aluminium body combined with LM6 die cast aluminium end caps. The electronic control gear is mounted directly to the luminaire body extrusion. Three 20mm o/d cable entry points to luminaire body and Two 20mm o/d entry points on each end casting to allow through wiring. The optics shall be available in either a 3mm thick polycarbonate diffuser lens with internal prisms or a 4.7mm thick frosted (laminated) glass lens that is housed in a complete aluminium framed door assembly. Bespoke LED system developed around the existing luminaire housing providing a symmetric distribution.

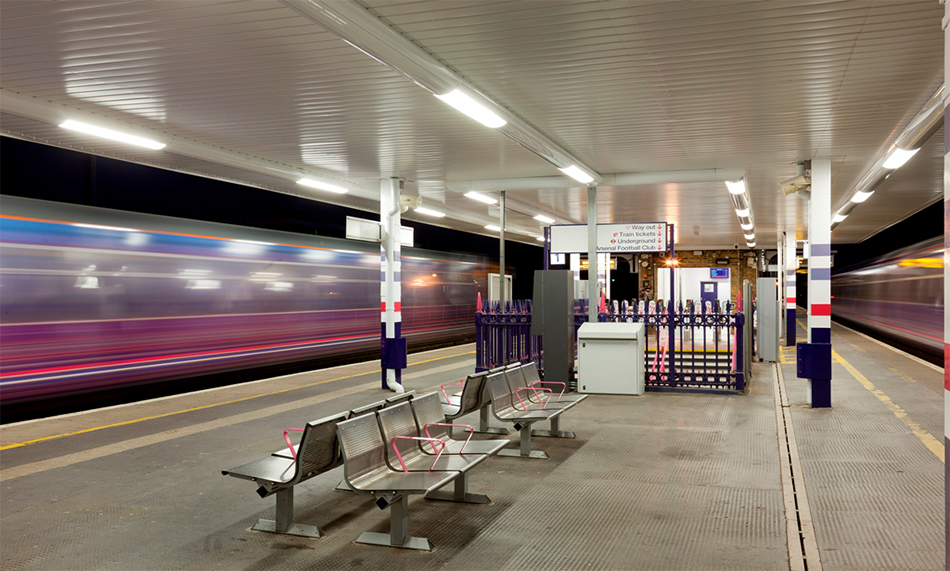

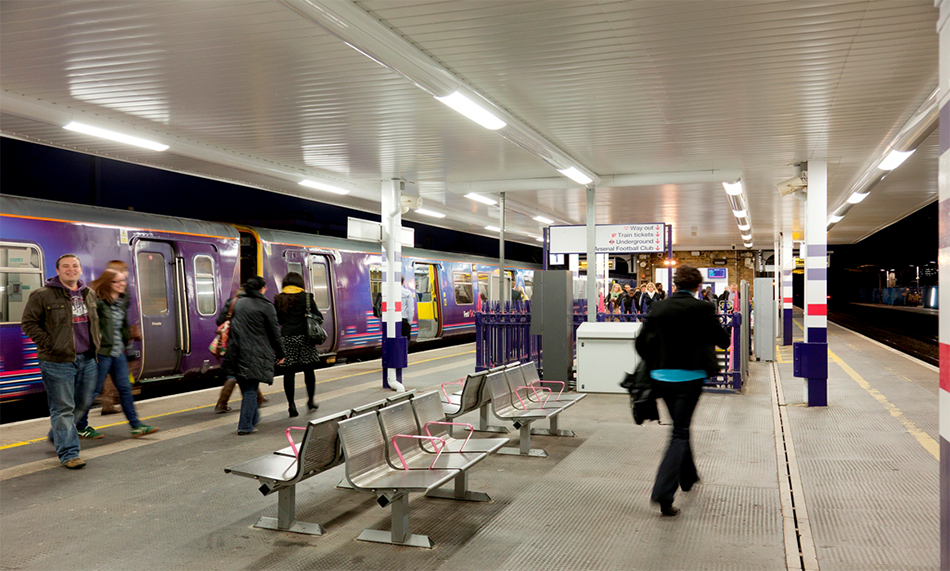

An IP rating of 659 for PFL versions and 65X for the FGL version shall be achieved with one piece gasket providing a constant seal. The luminaire shall be suitable for surface or cornice mounting with the ability to through wire, for continuous run mounting, and have the ability to used in conjunction with a bespoke Cable Management System and infill panels.
