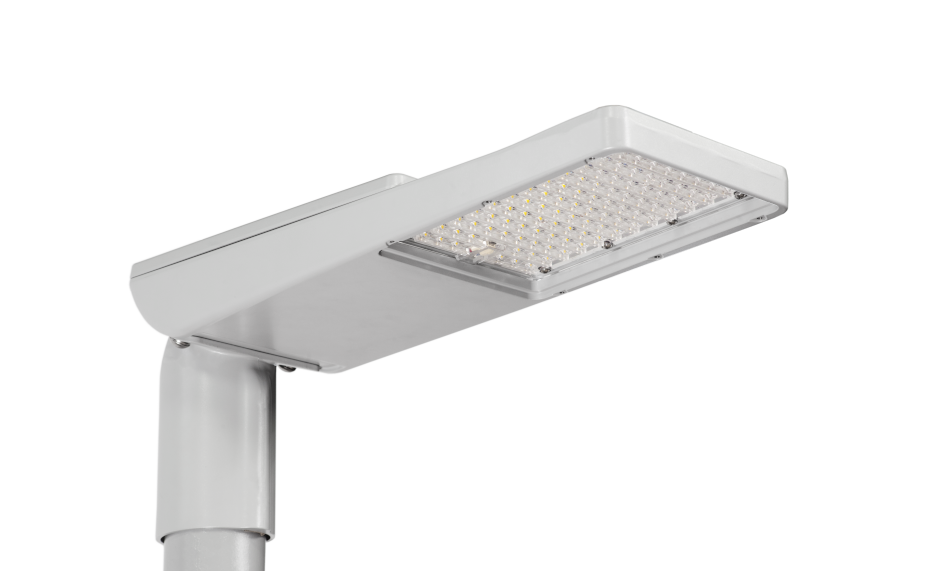

R-Line

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
4,2903,0002S2S32141
5,0273,0002S2S38141
5,7663,0002S2S44141
6,5983,0002S2S51141
7,9113,0002S2S62141
8,6223,0002S2S68141
9,4193,0002S2S75141
10,1743,0002S2S83141
10,9903,0002S2S91141
12,0013,0002S2S99141
12,8133,0002S2S107141
13,7823,0002S2S117141
14,5903,0002S2S126141
15,2613,0002S2S134141
4,1334,0002S2S32141
4,8434,0002S2S38141
5,5544,0002S2S44141
6,3564,0002S2S51141
7,6204,0002S2S62141
8,3064,0002S2S68141
12345678910...
Download all Photometry and BIM Data

Key Features

The new ‘Line’ range from Holophane is a family of luminaires developed to deliver an innovative and modern lighting system for a range of street lighting applications.

  • Slim design with a range of lumen packages that can be adapted  dependent on the required lighting performance thus ensuring visual and performance consistency for a variety of street lighting schemes.
  • Suitable for post top or side entry mounting without the requirement for an additional bracket.
  • LED modules and electronic driver are mounted in direct contact with die cast housing to aid heat dissipation by way of conduction and extend the life of all critical electronic components.
  • High quality, highly efficient, LEDs used in conjunction with the latest LED drivers ensures that superior lumens per watt and a long system life are achieved.
  • Developed to offer standalone flexibility for constant lumen output, variable lighting levels and part time regimes.
  • Available with DALI controls option.
  • Compatible with Holophane controls system.

Applications

Distribution

Specification

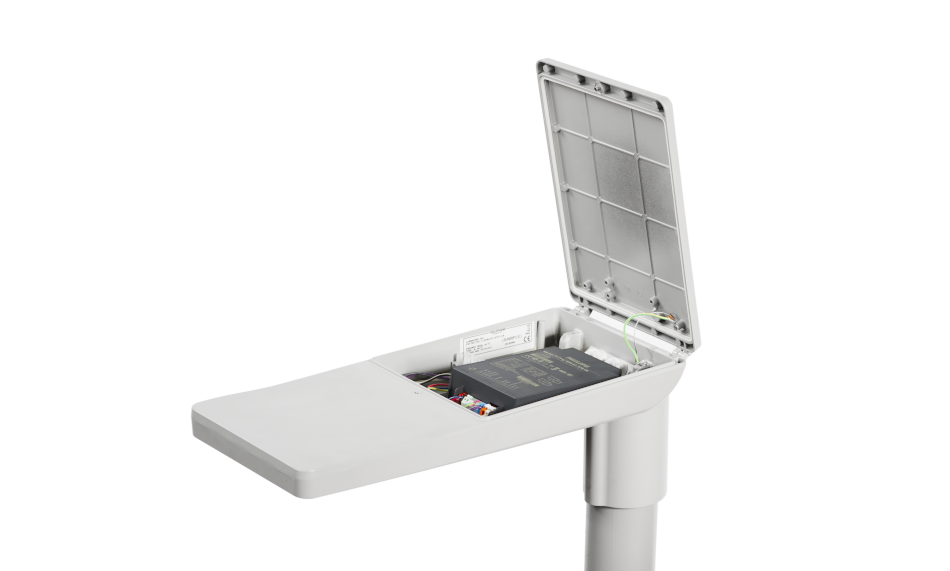

The luminaire consists of a die cast LM6 aluminium housing ((EN AC-44100)(AL.Si12)) which is sealed to IP66 with a close cell gasket and M5 stainless steel fastener that also allows access to the gear compartment for electrical termination. The LED module, with individual lenses, are mounted directly to the die cast LM6 aluminium housing to aid heat dissipation. The luminaire is also available with a 4-mm (S-Line) / 5-mm (R-Line) tempered glass lens, which is secured to the housing via 4 (S-Line) or 6 (R-Line) stainless steel clips, to deliver an IK10 impact resistance. The luminaire is suitable for post mounting (60/76mm) and side entry (34/42/60mm) with the ability to adjust onsite by -10° to +10° tilt*.

3000K or warmer must be selected for IDA dark sky certification.

 Copy specification to clipboard

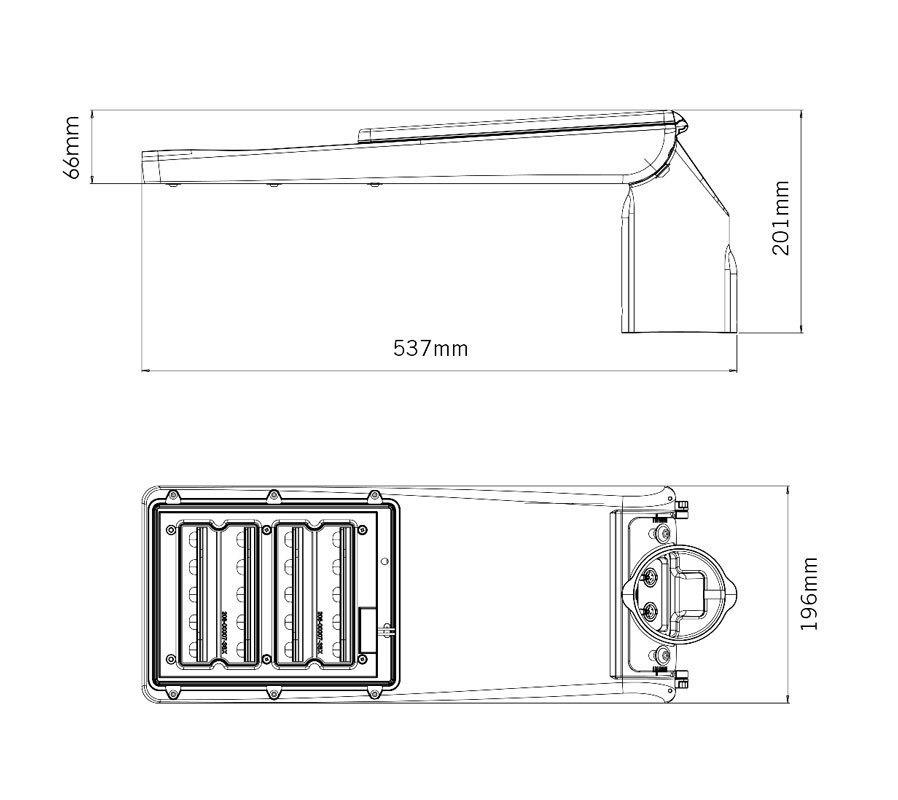

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
