Holophane - HI-BEAM

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

Broad Distribution

Tight Distribution

Lumen (lm)	Colour Temperature (K)	Distribution	Power (W)	Efficacy (llm/W)
20,085	4,000	Tight Distribution	126	168
23,950	4,000	Tight Distribution	156	168
30,101	4,000	Tight Distribution	205	168
35,250	4,000	Tight Distribution	213	168
40,170	4,000	Tight Distribution	251	168
18,392	4,000	Broad Distribution	126	168
21,908	4,000	Broad Distribution	156	168
27,564	4,000	Broad Distribution	205	168
32,160	4,000	Broad Distribution	213	168
36,722	4,000	Broad Distribution	251	168

Download all Photometry and BIM Data

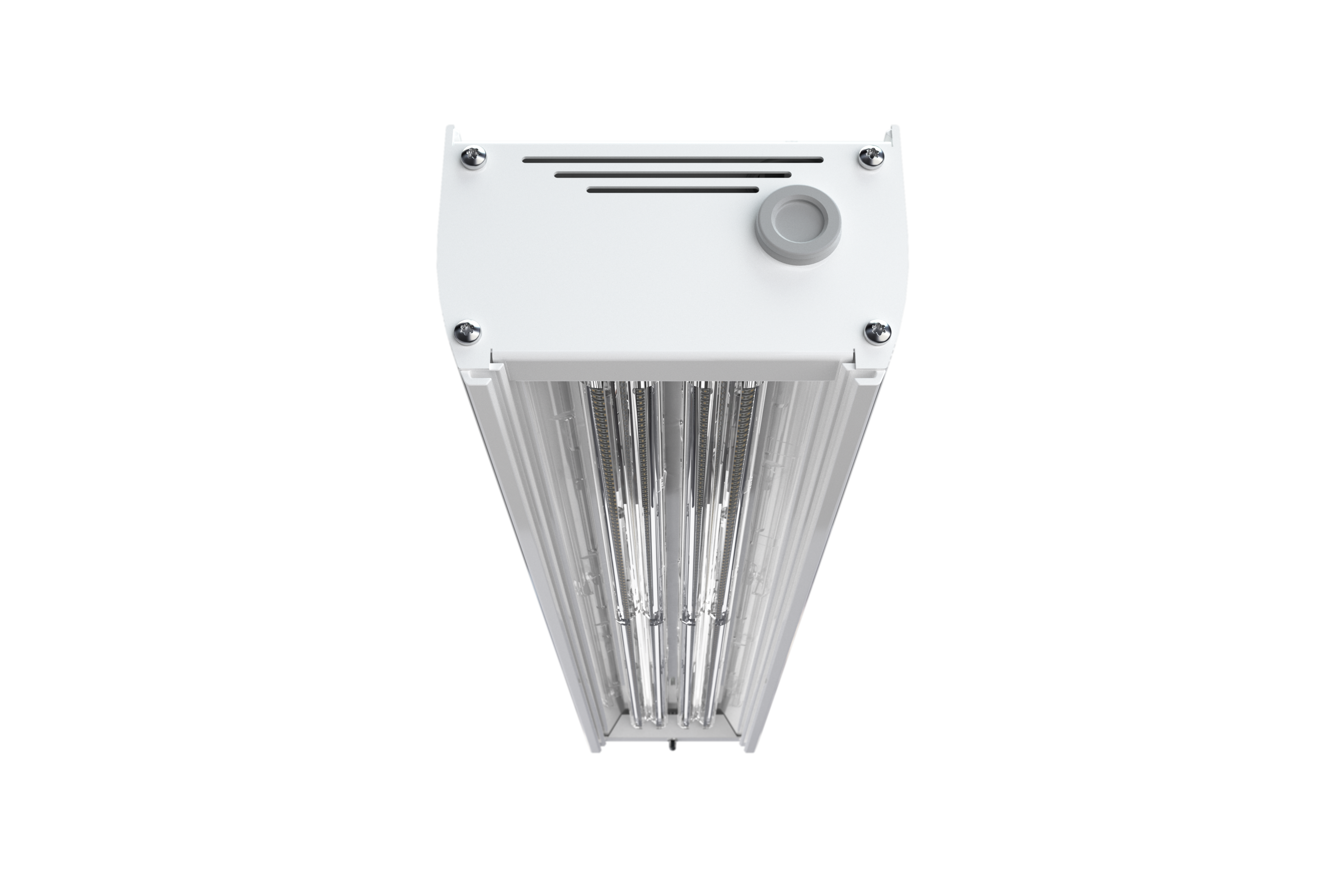

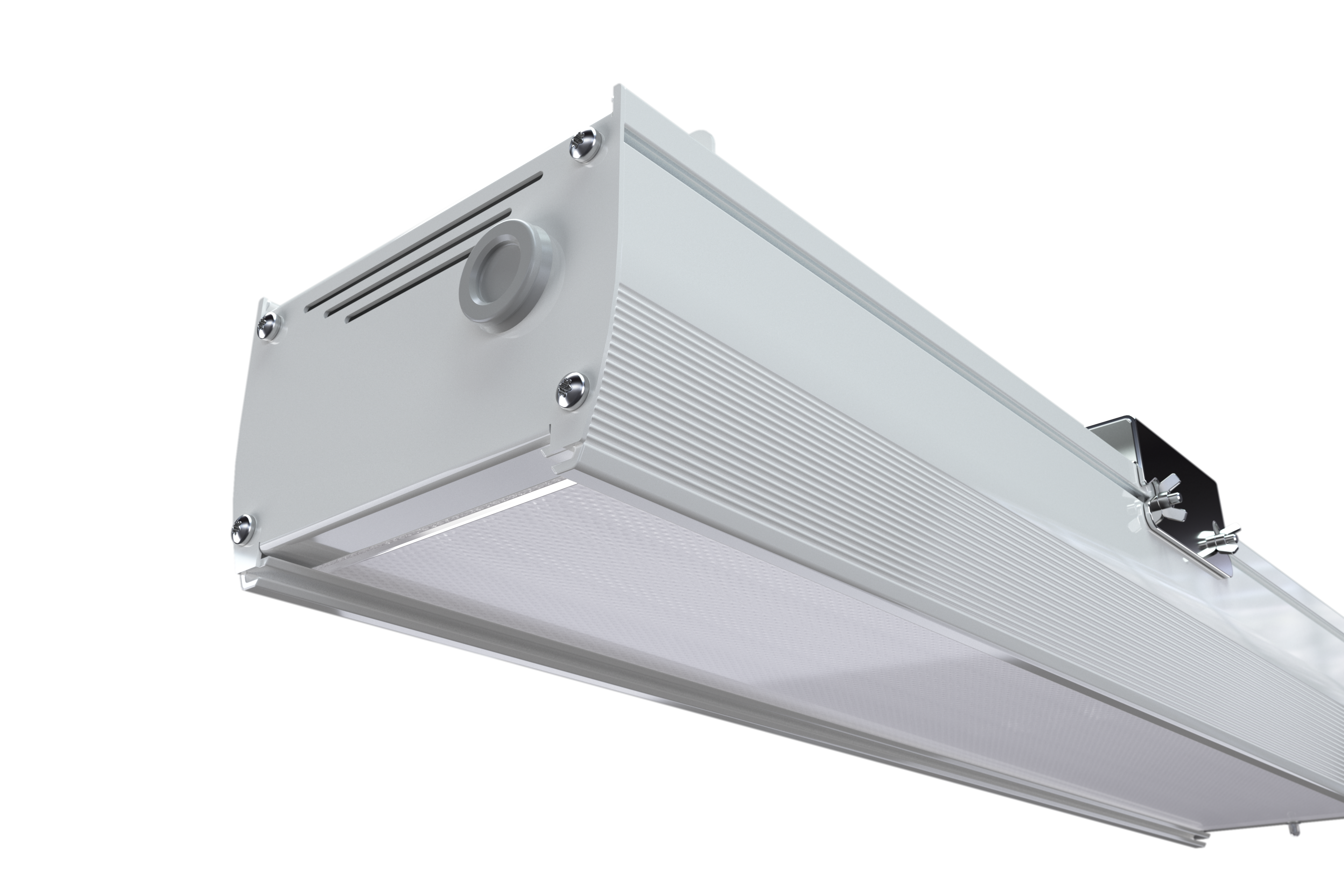

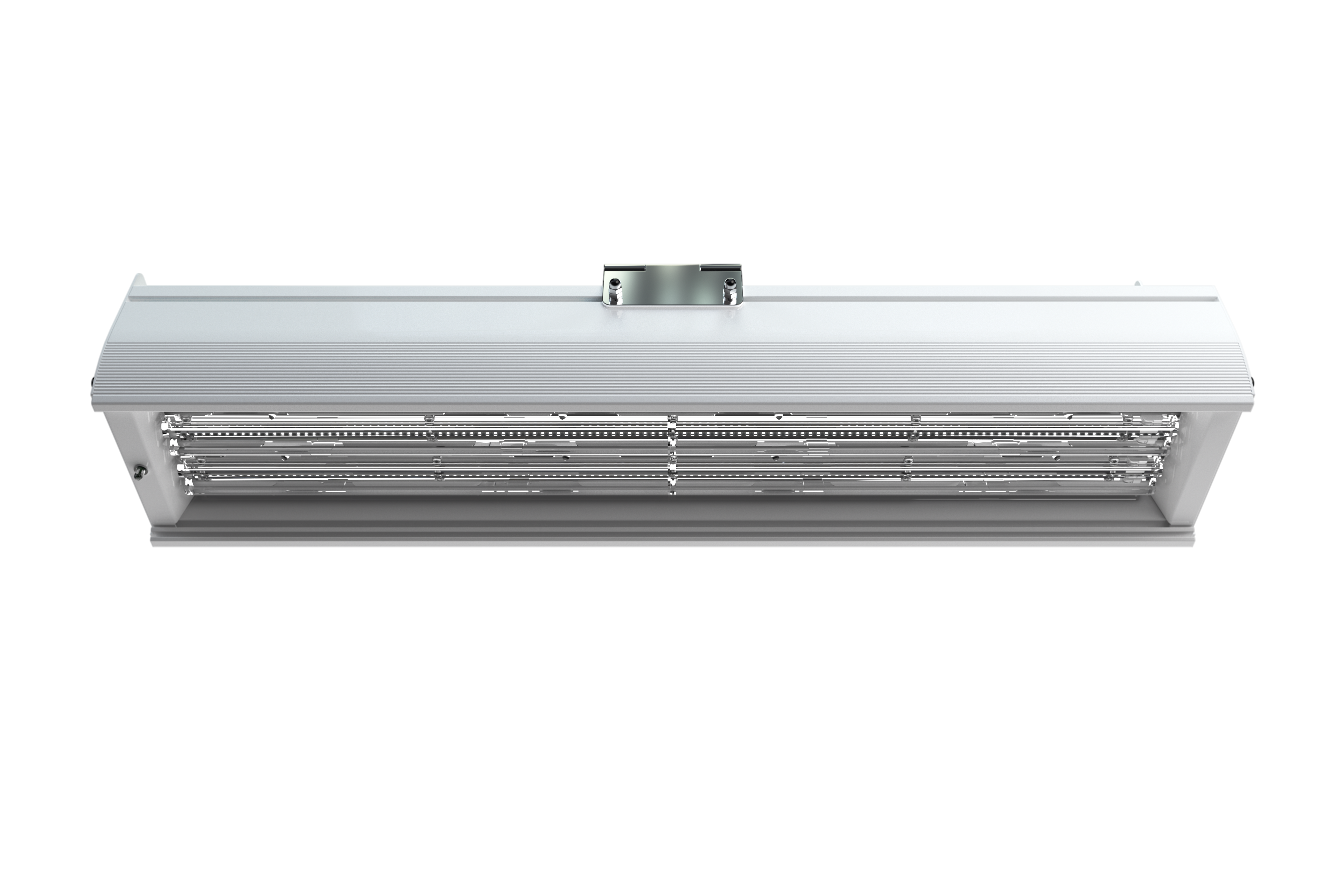

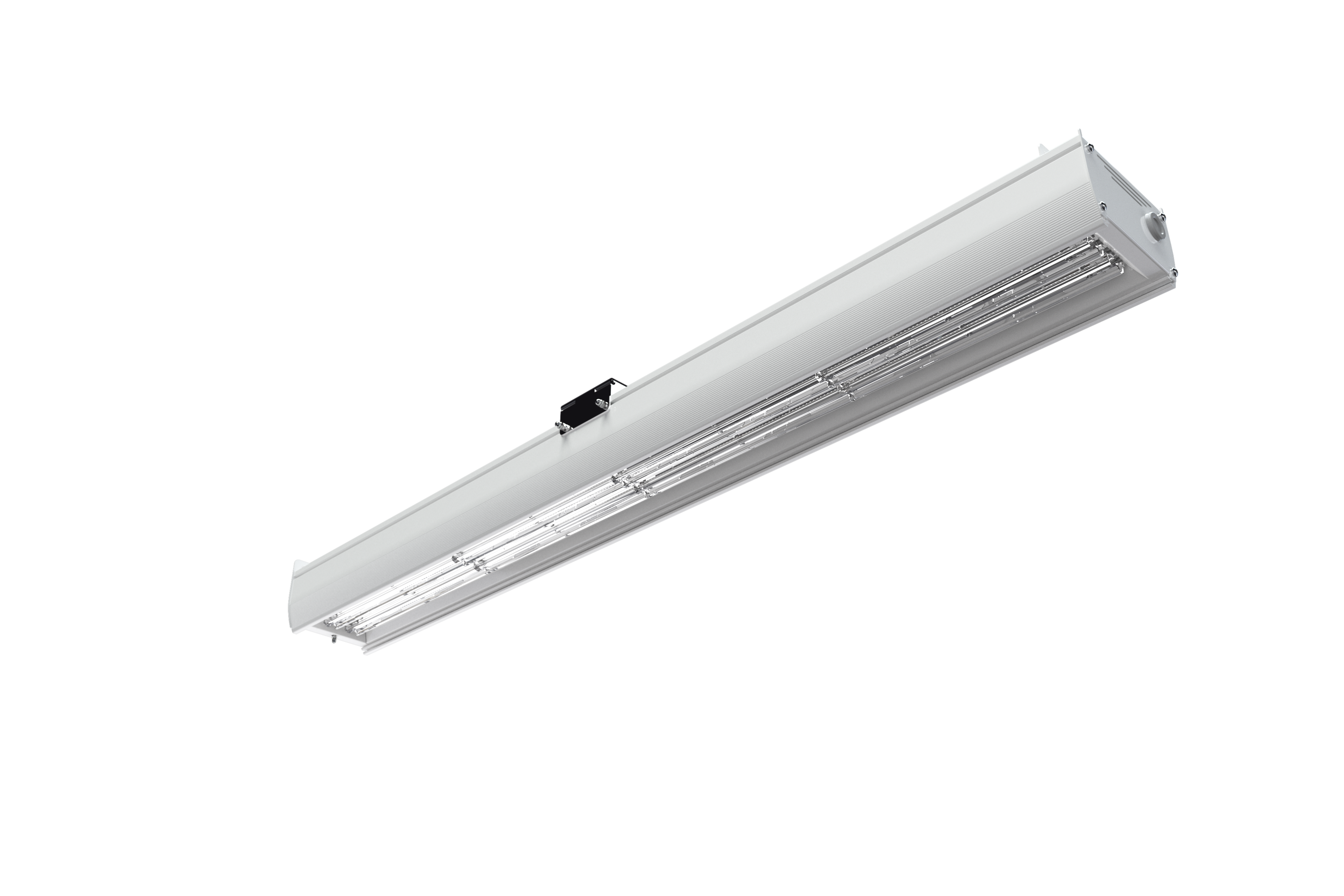

Gallery

Key Features

Featuring innovative integrated features, HI-BEAM enables fast installation and maintenance ensuring minimal disruption to logistical operations. Saving time and money.

Lumen Packages from 20,000 - 40,000 lumens with efficacies of up to 168
lumens per Watt.
Optimised aisle and racking optic providing class leading lux levels and
uniformity.

Flexible mounting bracket/accessories cater for a range of project requirements and make for
easy installation of the luminaire.
Tool-less entry enables easy installation and maintenance.

Integrated PIRs available to suit project needs and further reduce
energy consumption.
Integrated 3hr emergency DALI Self-test option.
Compatible with HOLOS Air.

Applications

Internal

Industrial

Warehouse & Logistics

Distribution

Specification

Holophane HI-BEAM consists of a 6063-T6 Aluminium extruded body and steel end-caps finished in polyester power-coated Smooth White (RAL9016). The LED optical arrangement includes bespoke LED boards behind PMMA optics. The luminaire shall be sealed to IP20. Drivers and LEDS are mounted directly to the aluminium body to promote excellent thermal characteristics. Mounting of the luminaire is via a universal mounting bracket or via the integrated suspension mount points. The bracket includes a hinge to allow it to be put in a service position and features a snap-fit plastic cover to enable easy entry to gear and components. Cable entry is via either side or top membrane cable glands.

Copy specification to clipboard

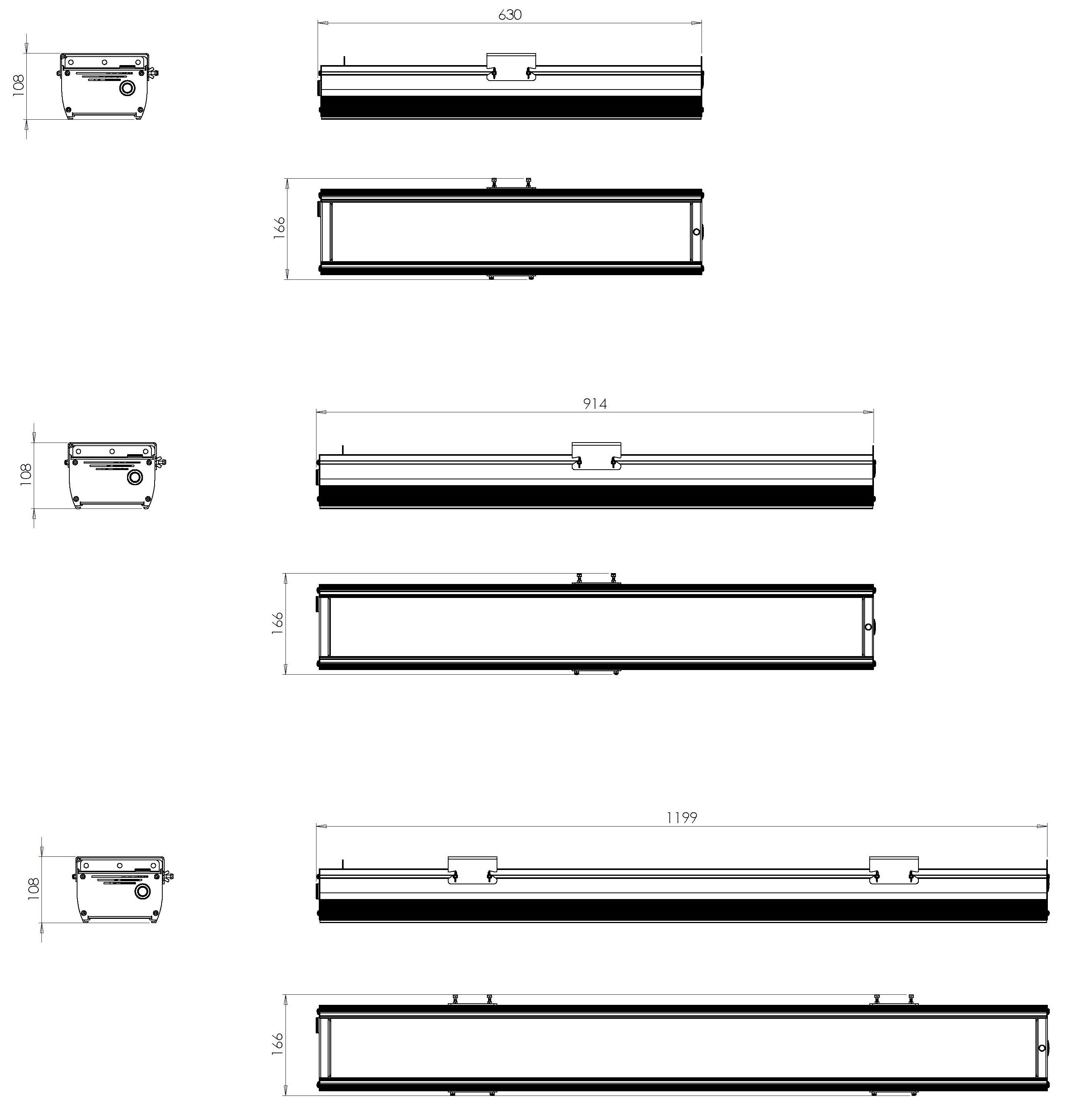

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.

HI-BEAM

Product code: HIB0.1

HI-BEAM is the next generation in LED high-bay lighting. Specifically designed for aisle and racking applications, HI-BEAM delivers outstanding lighting performance to Warehousing and Logistics Centres.

Lumen	20,000 - 40,000
Power consumption	131 - 207
Distributions	2
IK Rating	IK09
IP Rating	IP20
Colour range	4,000
