Prismpack™

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
103,6114,000Medium701.5150
9,9484,000Medium63.8150
113,5834,000Medium781.1150
119,1824,000Medium827.1150
19,8644,000Medium137.8150
20,4254,000Medium131.2150
30,6434,000Medium203.9150
30,6384,000Medium196.8150
39,7274,000Medium275.7150
41,3804,000Medium266150
51,4454,000Medium347.9150
59,5914,000Medium413.5150
62,0694,000Medium398.9150
72,4174,000Medium494.1150
79,4544,000Medium551.4150
92,6684,000Medium617.3150
9,9484,000Medium64150
20,4254,000Medium131150
30,6384,000Medium191.8150
41,3804,000Medium266150
1234567
Download all Photometry and BIM Data

Key Features

The new Prismpack™ combines the latest in highly efficient LEDs and redefines the standard for digital highbay lighting. The new generation Prismpack delivers solutions that can be totally tailored to specific customer applications.

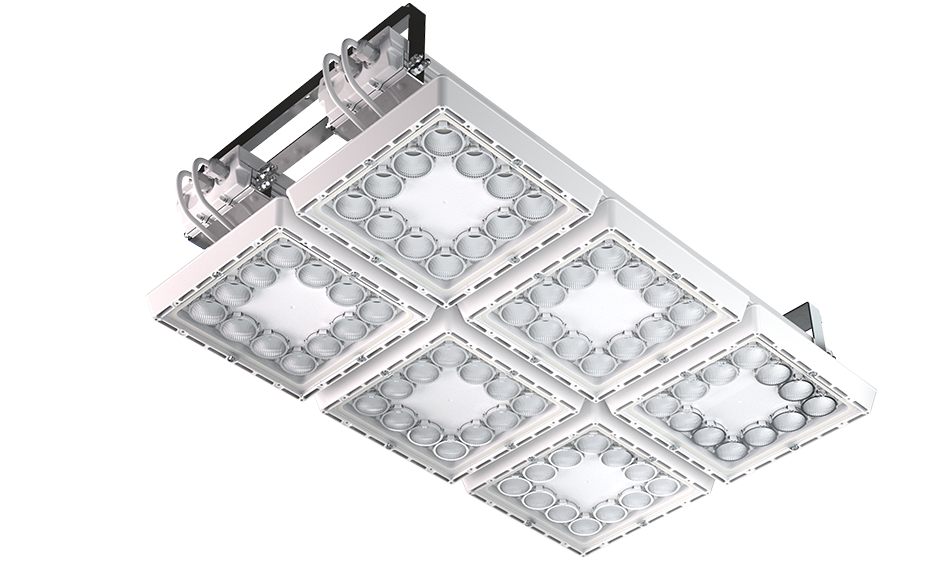

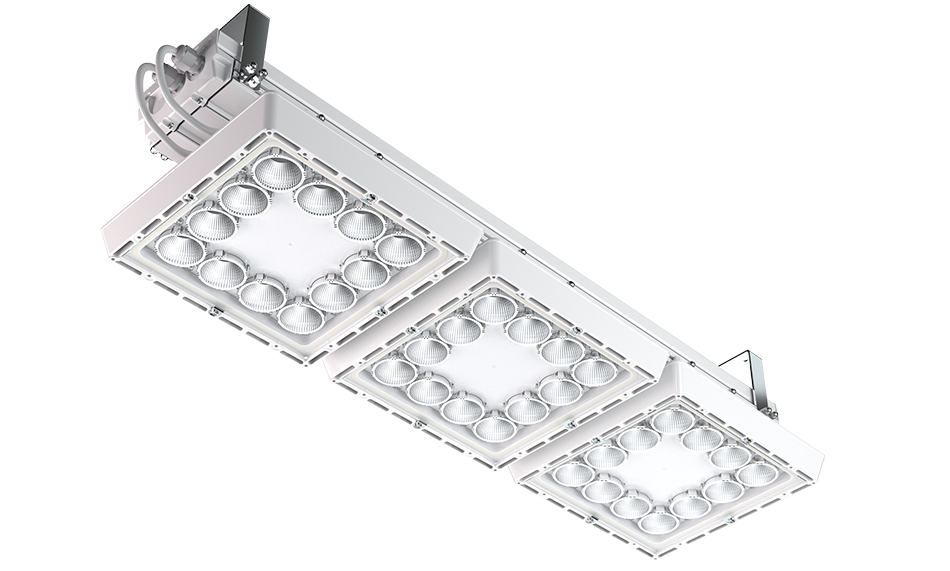

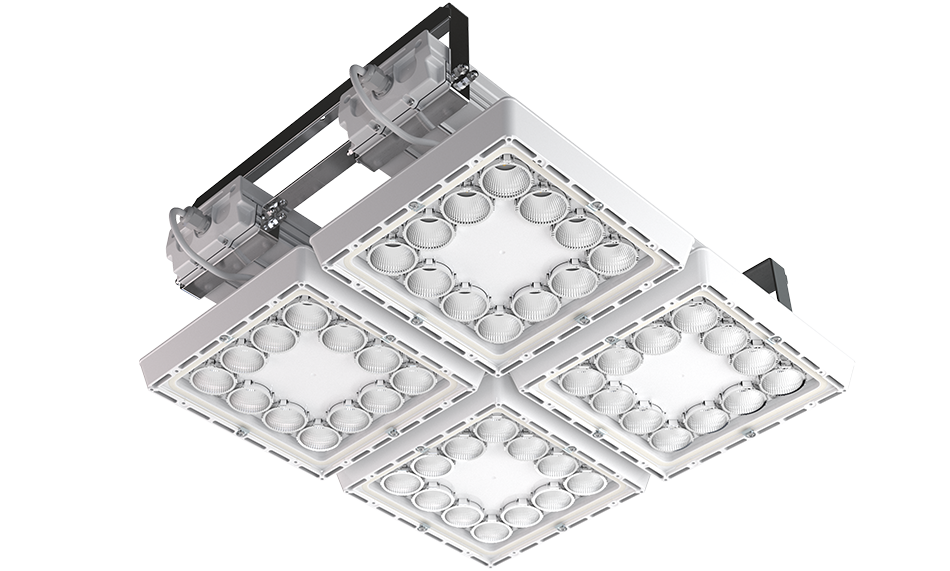

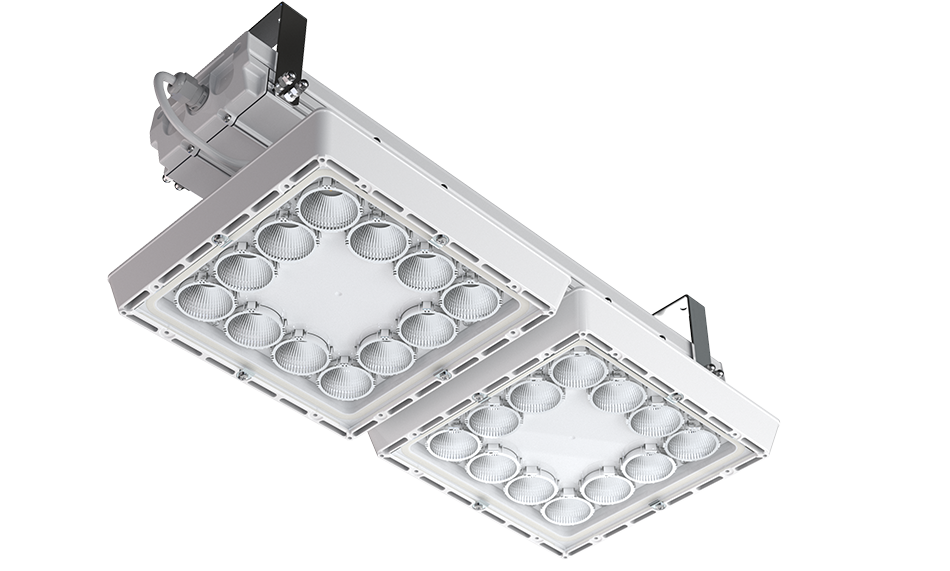

  • Lumen ranges from 10,000 to 120,000 achieved via five system sizes which deliver exceptional ROI for a multitude of applications.

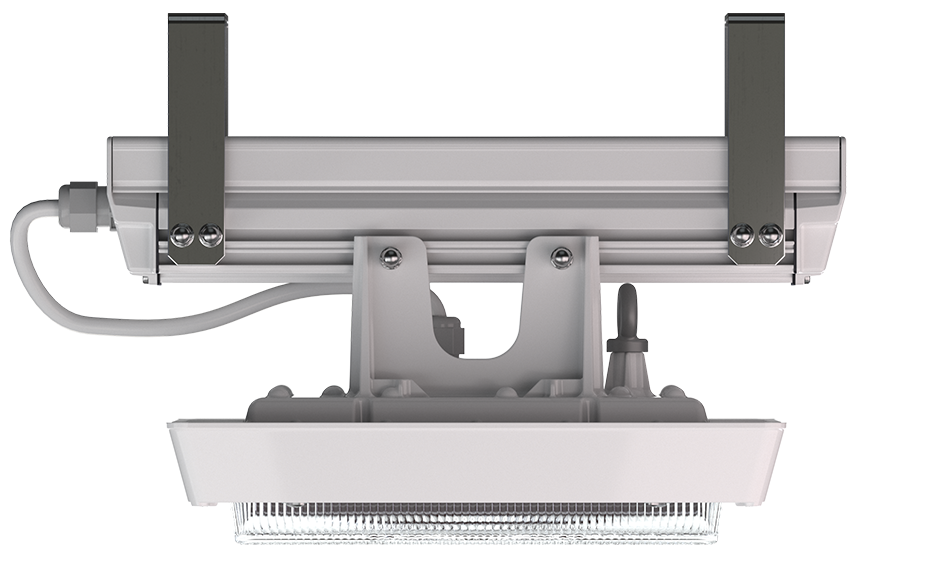

  • Mounting options to accommodate a variety of onsite installation challenges.
  • Incorporates PrismaLED technology which delivers a wholly luminous lit effect that accurately controls the output of the LEDs and reduces glare.

  • Optimax,™ inspired by Holophane’s Superglass optical technology, maximises performance with today’s digital technologies. Optimax is designed to deliver a low glare, visually comfortable, efficient lighting system.
  • Vertical ventilation slots in the luminaire heat-sink convect heat from the housing and creates air movement away from the glass optic to minimise dirt accumulation on the optical surface.

  • The glass lens ensures a low electrostatic charge which make it less susceptible to dust and dirt accumulation so improving dirt depreciation over time. This means that higher value Maintenance Factors, MF, can be used in design calculations.
  • Suitable for ambient temperatures of up to 70°C enabling the luminaire to be used in various environments.
  • Integrated Control and emergency options.

  • Compatible with HOLOSAir Lite, HOLOSAir and HOLOS Wired.

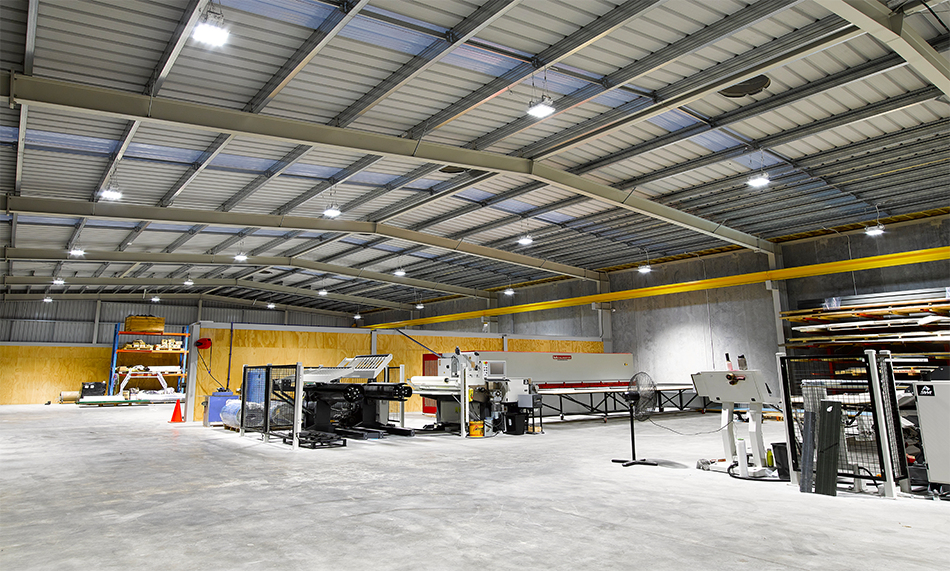

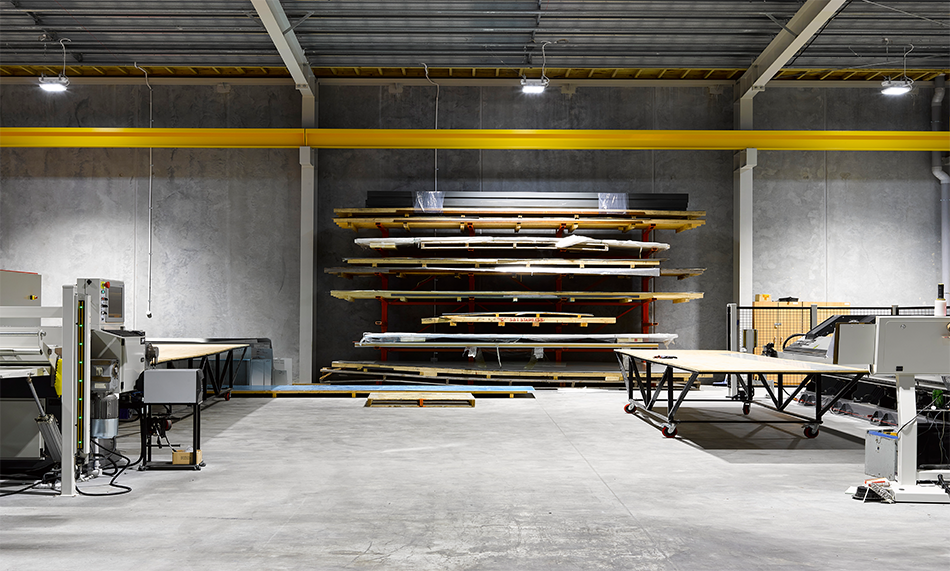

Applications

Distribution

Specification

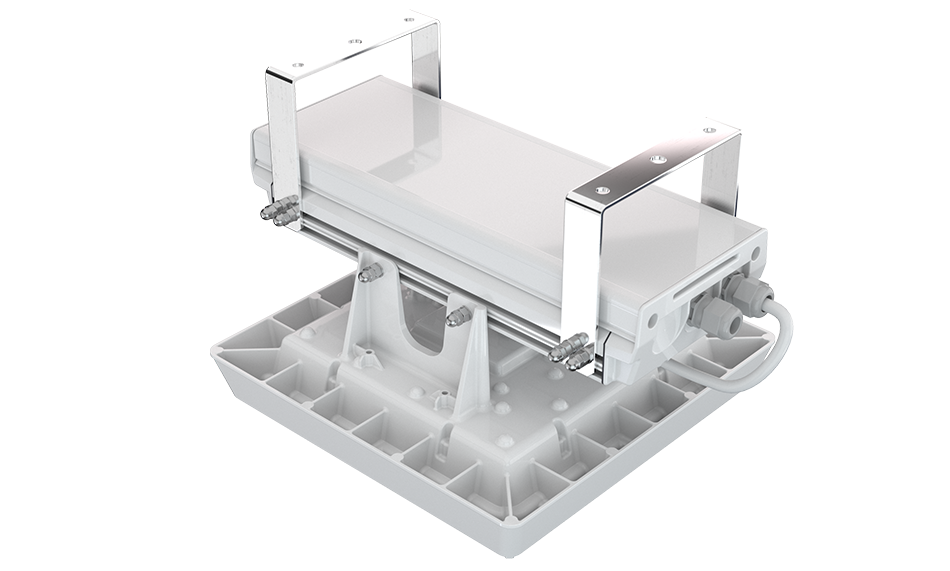

Holophane Primspack high bay luminaire has a patented modular design that combines the LED Module(s) (AlSil2 (LM6) Aluminium) and Electrical Compartment Body (Al 6063-T6) to deliver a construction with exceptional thermal management of both the LEDs and drivers. The optical system, Optimax, has been developed using a bespoke specular aluminium metallised reflector system contained by a highly transmissive clear low iron glass lens (prismatic glass refractor is also available). Fully sealed to IP65.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
