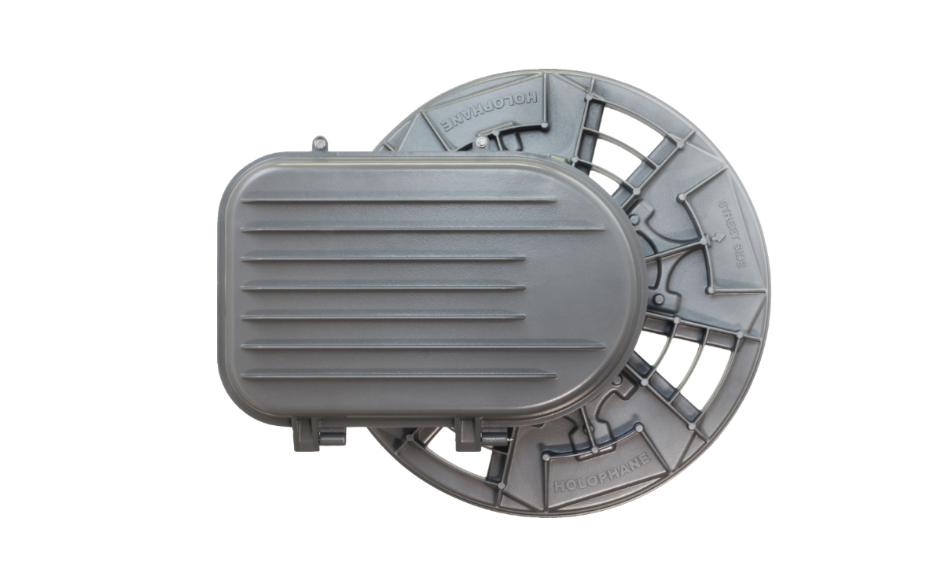

High Mast Advanced Optix™

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
83,7793,000Asymmetric658167
71,6383,000Asymmetric658167
85,1583,000Asymmetric658167
92,9503,000Asymmetric658167
26,7963,000Asymmetric180167
31,2393,000Asymmetric212167
40,1463,000Asymmetric279167
44,5743,000Asymmetric317167
52,5793,000Asymmetric374167
46,3973,000Asymmetric374167
53,2783,000Asymmetric374167
54,2873,000Asymmetric374167
61,3383,000Asymmetric446167
54,1273,000Asymmetric446167
62,1533,000Asymmetric446167
63,3313,000Asymmetric446167
65,7443,000Asymmetric486167
58,0143,000Asymmetric486167
66,6173,000Asymmetric486167
67,8803,000Asymmetric486167
12345678910...
Download all Photometry and BIM Data

Key Features

With the latest in high-efficiency LED technology it provides a complete lighting solution for the simplest through to the most complex area lighting applications. The specially engineered optical modules come with a full range of distribution options to meet the highest performance standards and deliver outstanding visibility and uniformity.

  • Utilises convection and conduction to thermally manage the LEDs ensuring longer life and high delivered lumen outputs to replace 400-1000 watt metal halide systems.
  • Gear housing designed to maximise heat dissipation, via conduction, from critical electronic components to ensure that they are run as cool as possible to deliver a long system life.
  • Glass refractor technology which delivers a wholly luminous effect that accurately controls the output of the LEDs, reduces glare with its ‘PrismGlow’, delivers excellent uniformity.
  • Rotatable optical assembly providing on site alignment of distributions to specific lighting requirements and ensuring equal weight distribution on existing mast head frame.
  • Five dedicated distributions designed for all types of retrofit or new installations where high mounting is required.
  • Glass optics ensure a low electrostatic charge which make it less attractive to dust and dirt accumulation over time so improving dirt depreciation over time.
  • Ventilated luminaire chassis works together with the glass optics to create self-cleaning system which enhances the lumen maintenance of the luminaire over time.
  • Suitable for side entry mounting via the integrated four bolt mounting system which also offers 0 or 5 degree tilt.

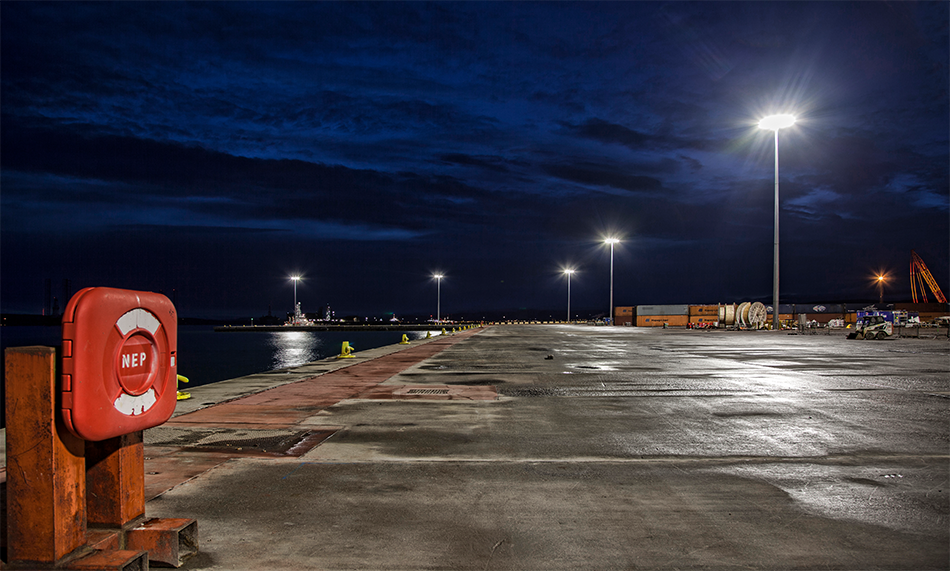

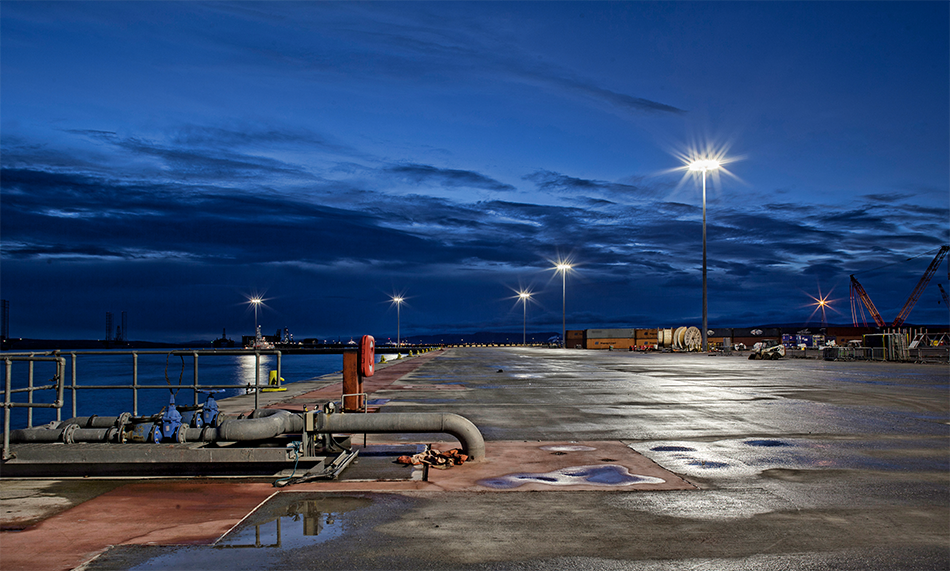

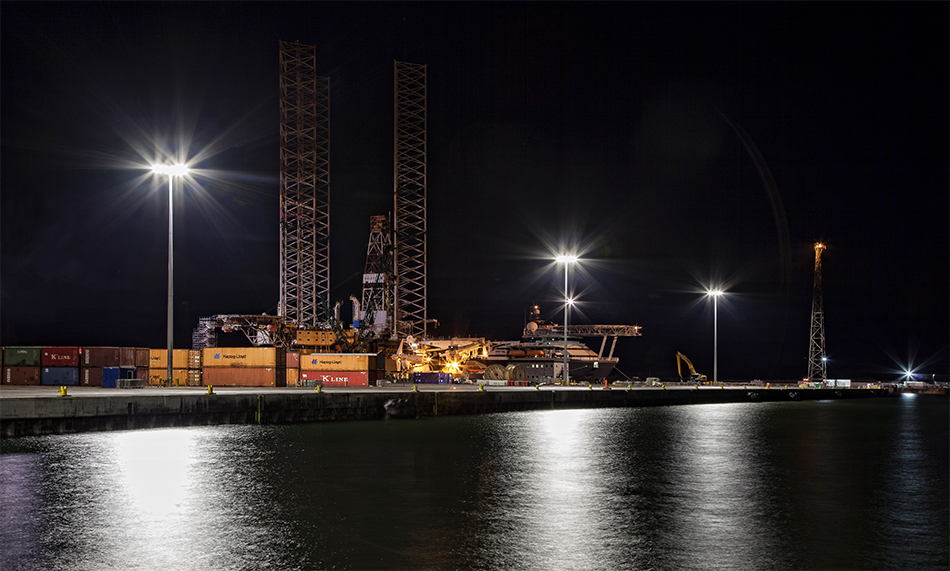

Applications

Distribution

Asymmetric
Square
Symmetric

Specification

HMAO shall consist of six, nine or twelve prismatic glass refractors manufactured from borosilicate glass to ensure longevity and minimise dirt depreciation. Each glass lens houses an LED module and creates individual optical pods. Each optical pod is housed in a fully ventilated and finned housing manufactured from aluminium to maximise heat transfer. The electrical housing consists of two castings containing the drivers, 10kV surge protection and electrical termination. The luminaire chassis and electrical housing utilises all three heat transfer mechanisms of conduction, convection and radiation to ensure that the high density modules and electronic drivers are thermally managed. Mounting is via the four bolt side arm mounting with +/-5 degree tilt and suitable for 42mm and 60mm.

3000K or warmer must be selected for IDA dark sky certification.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
