CityMax®

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
1,8762,700Asymmetric17133
1,8762,700Asymmetric17133
1,8762,700Asymmetric17133
1,8422,700Asymmetric17133
1,8422,700Asymmetric17133
1,8422,700Asymmetric17133
1,8262,700Asymmetric17133
1,8822,700Asymmetric16133
1,8822,700Asymmetric16133
1,8822,700Asymmetric16133
1,8482,700Asymmetric16133
1,8482,700Asymmetric16133
1,8482,700Asymmetric16133
1,8322,700Asymmetric16133
2,8072,700Asymmetric27133
2,8072,700Asymmetric27133
2,8072,700Asymmetric27133
2,7572,700Asymmetric27133
2,7572,700Asymmetric27133
2,7572,700Asymmetric27133
12345678910...
Download all Photometry and BIM Data

Key Features

It guarantees excellent levels of illumination for different types of lighting applications. With its flexible design it offers an extensive range of lumen packages and varied mounting options that are an ideal solution for city projects that encompass streets, avenues, squares and roads.

  • Housing, cover, modules, arms and mountings manufactured from high quality, low copper content aluminium. The quality of the materials and coating process used ensures a product with a long mechanical life.
  • State-of-the-art optics combine to deliver 7 different distributions.

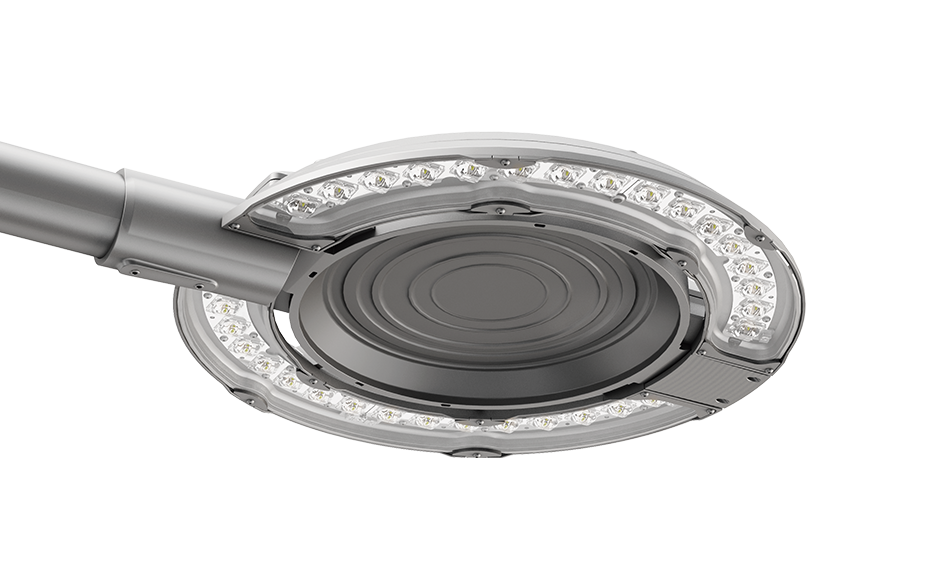

  • The CityMAX modules include state-of-the-art LEDs to ensure maximum efficacy. The versatility of the outer module allows for different lumen packages, ranging from 2,000lm to 20,000lm.
  • The inner modules have been designed for applications requiring higher lumen packages. The combined Outer & Inner module configuration delivers 14,000 lm or 20,000 lm.
  • The LED module system covers a large contact surface that conducts heat away from the critical electronic components which is then dissipated throughout the housing. The channel between the modules and the gear compartment generates a constant flow of air that passes through the luminaire. This process of convection ensures the luminaire is running as cool as possible resulting in a long system life.
  • The presence sensors are connected to the driver (DALI or 1-10V) to improve the efficiency of the installation by increasing the lumen level when pedestrians of vehicles are detected and reducing it when no movement is sensed in the area.

Applications

Distribution

Asymmetric

Specification

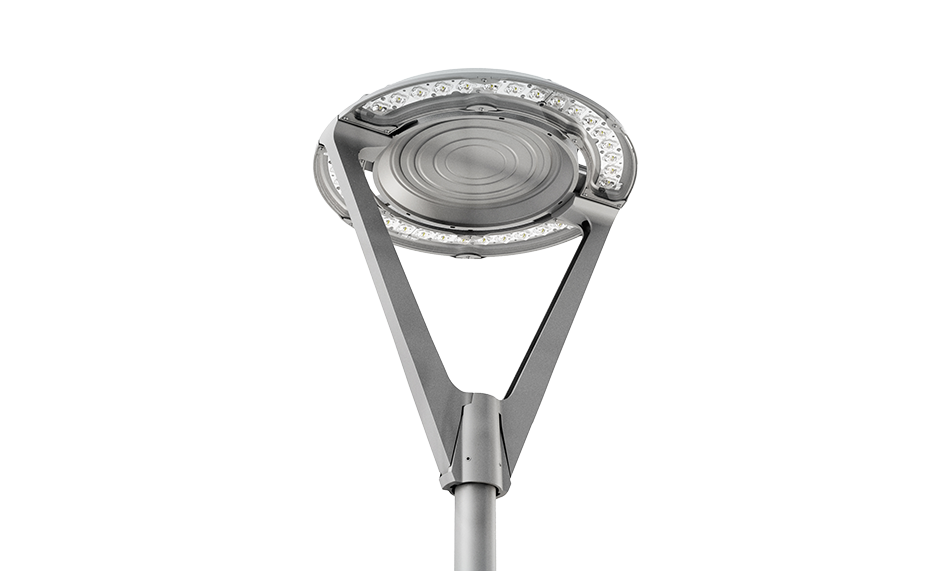

Holophane CityMax luminaire is a circular outdoor area light with a low-profile design and patented modular semicircle light engine concept.  The product is manufactured from die-cast marine grade aluminium and sealed to IP66 with glass optics and IK10 rating.  Access to driver and electrical terminations is via a hinged, toolless access door located on top of the luminaire.

 International Dark-Sky Association Approved (colour temperatures 3000K or warmer are approved under the IDA).

 Copy specification to clipboard

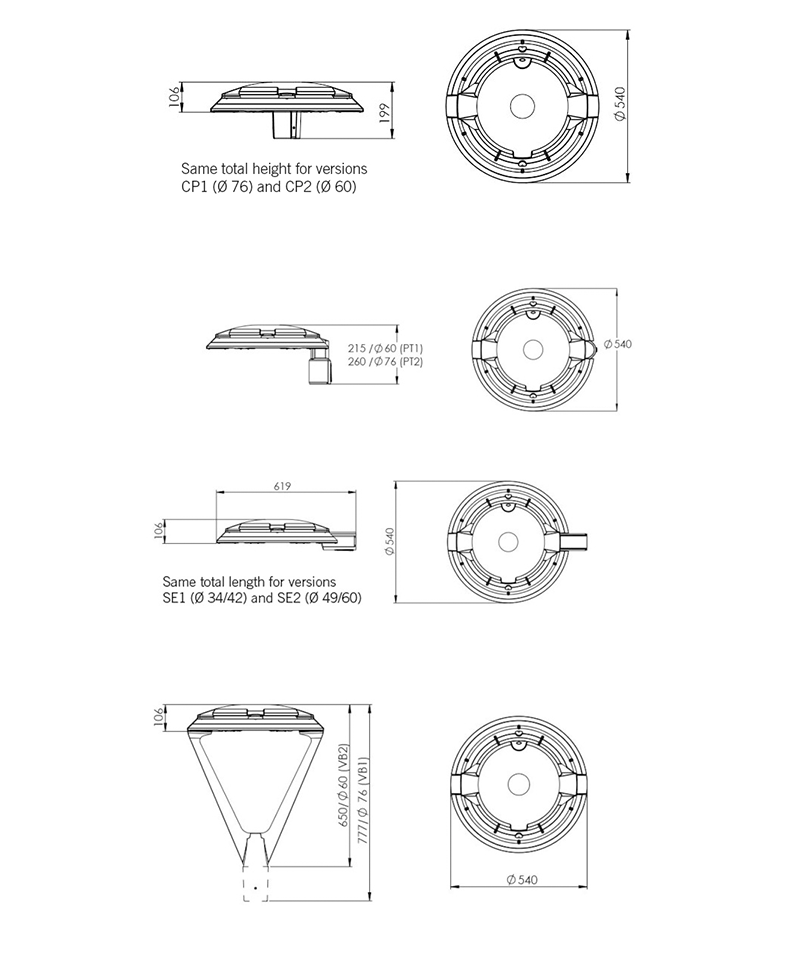

Dimensions


Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
