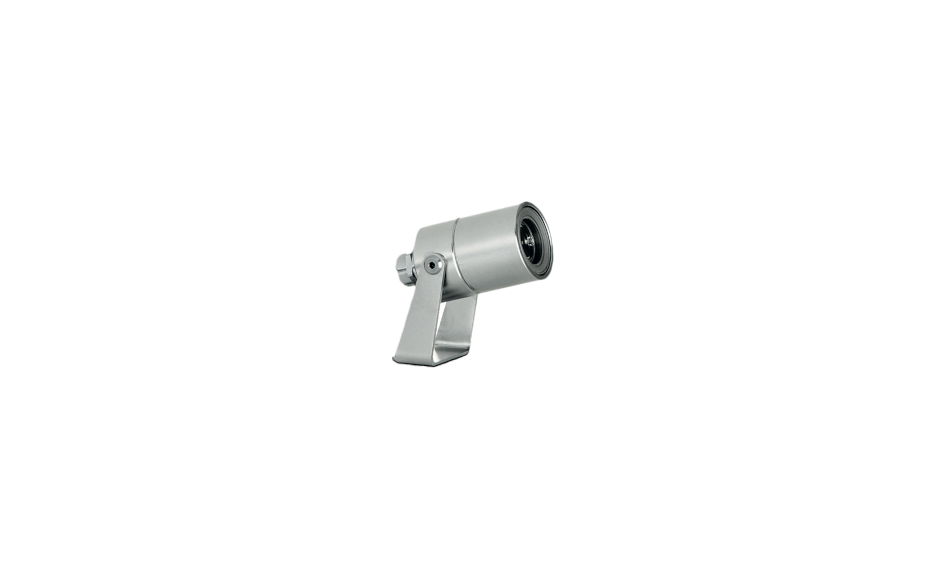

NANO Floodlight

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1753,00014°
1804,00014°
1603,00026°
1654,00026°
1503,00038°
1554,00038°
1603,000Elliptical
1654,000Elliptical
Download all Photometry and BIM Data

Key Features

The possibility of enlightening with optical point or diffusion makes their use particularly suitable for enhancing gardens or individual flower bushes and plants. It is also useful in the architectural field to provide with prominence to facades portions. Several accessories such as spikes and rods, allow a versatile application and the ability to change the position of the light beam.

Applications

Distribution

14°
26°
38°
Elliptical

Specification

Body and closing flange made of aluminium alloy. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Supplied with eletronic power surge protection. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. Nano with constant-current transformer, to be wired in parallel. For all-grain versions in A4 stainless steel. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

 Copy specification to clipboard

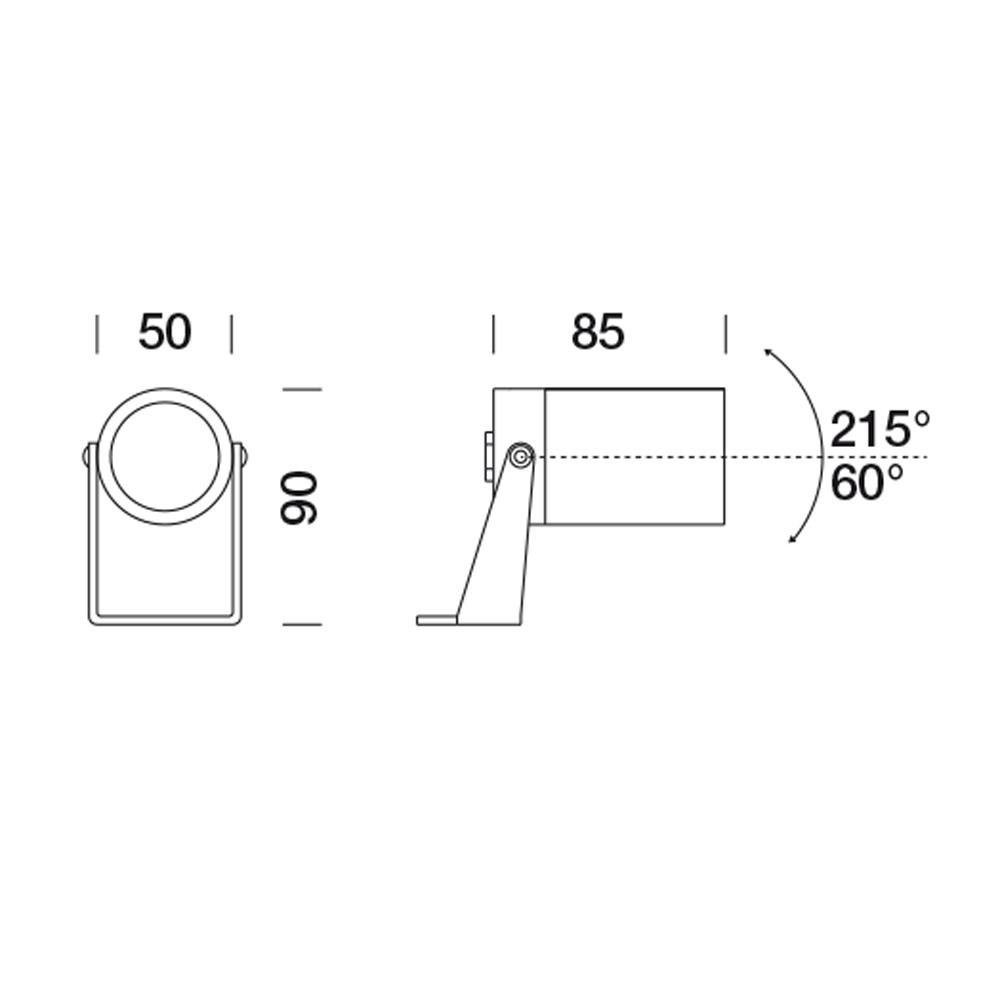

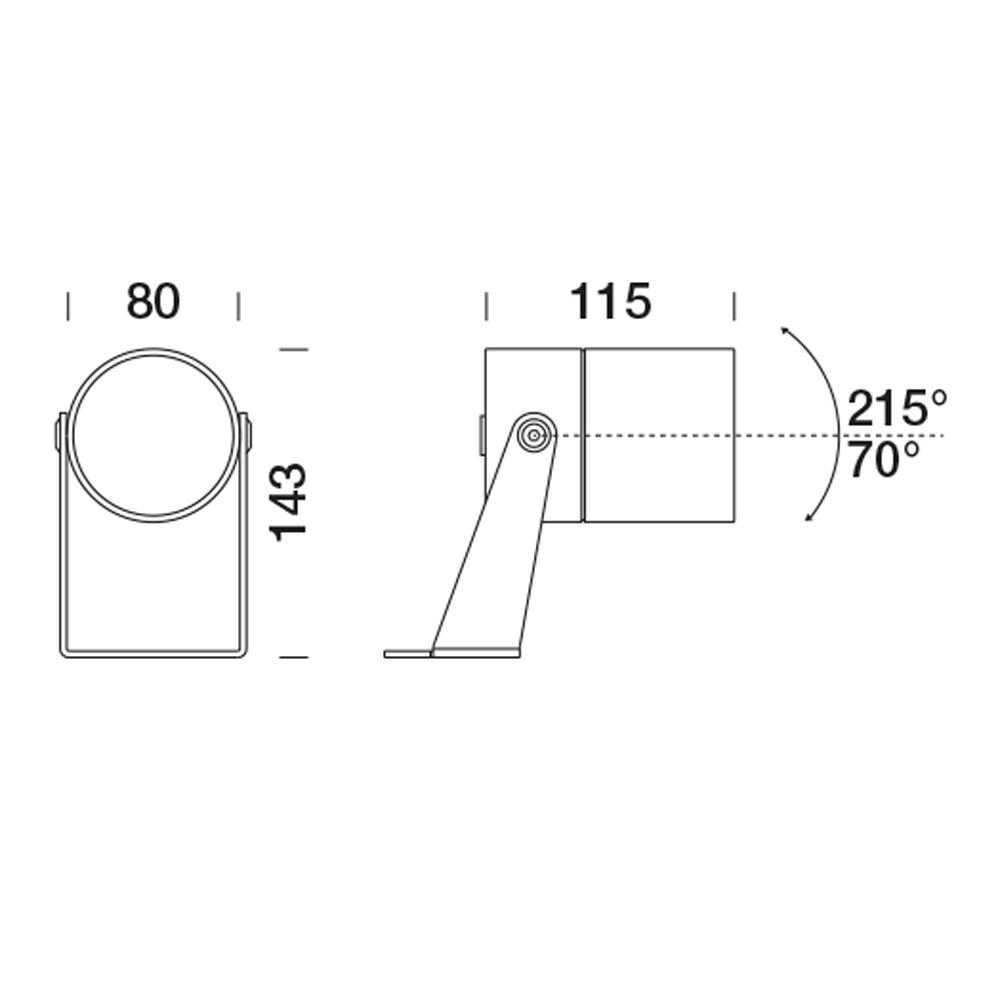

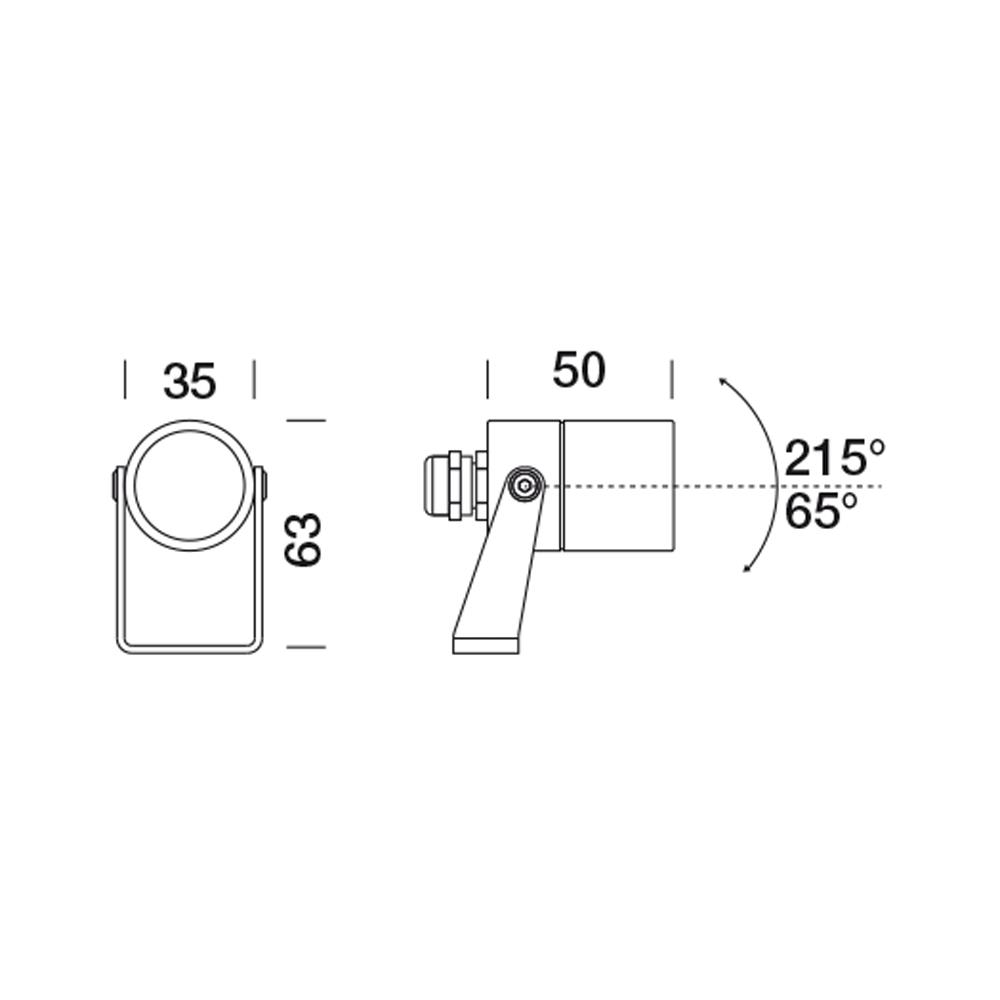

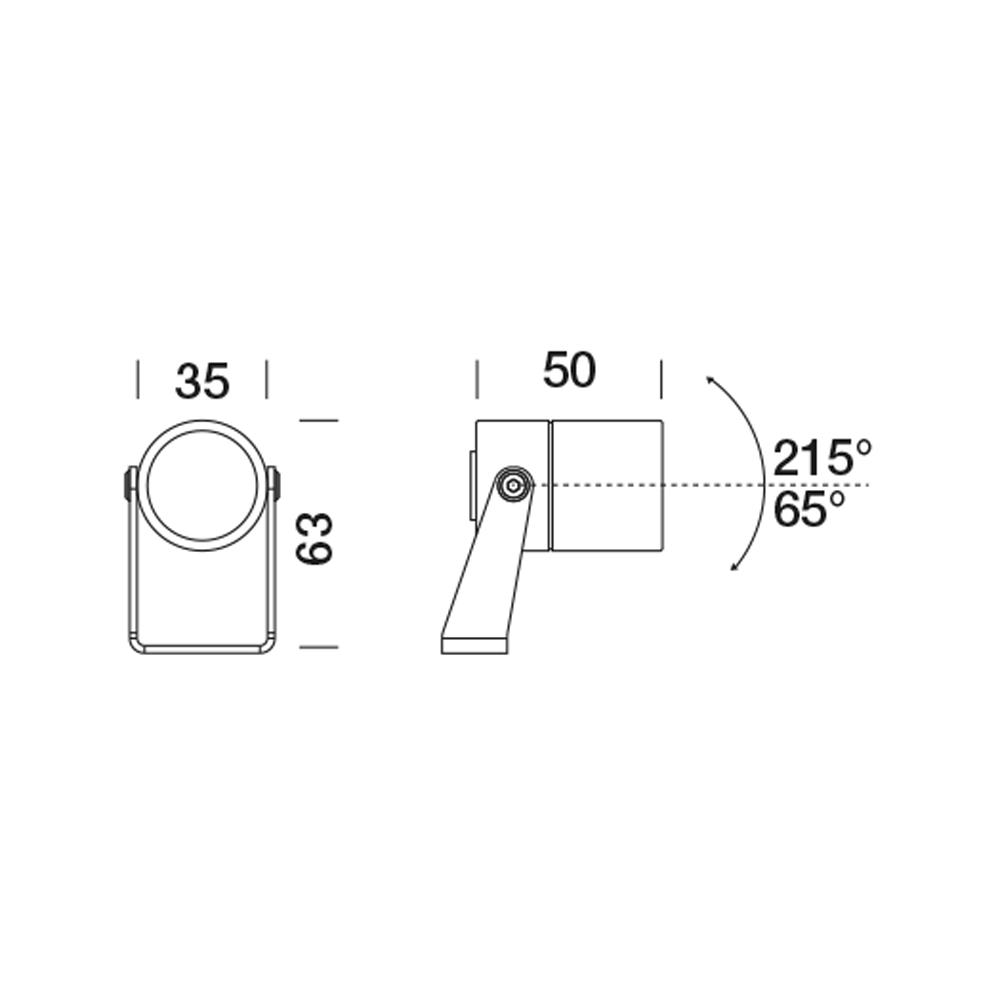

Dimensions
