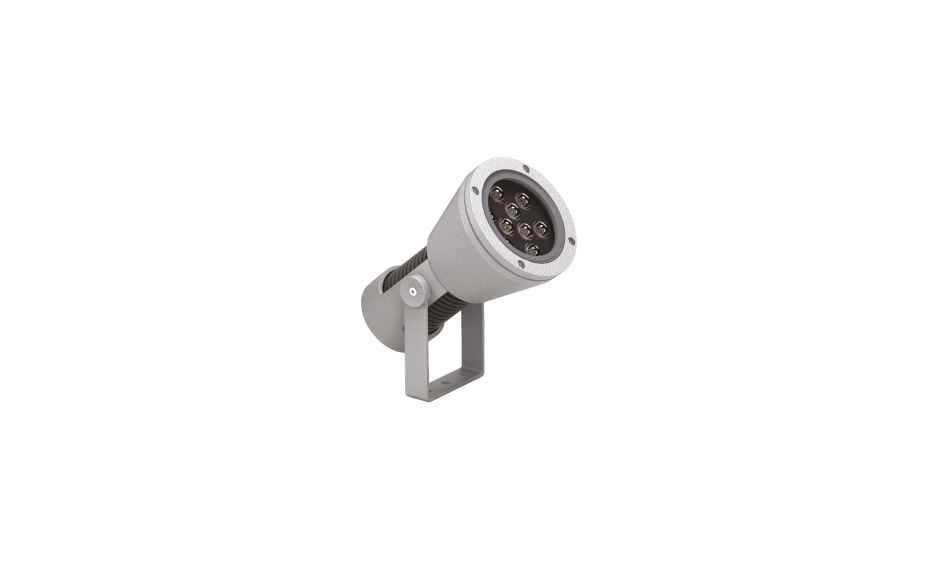

MINI SPRING Floodlight

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1,8603,00020°
1,9344,00020°
1,9503,00028°
2,0304,00028°
1,6703,00036°
1,7354,00036°
1,7803,00045°
1,8504,00045°
1,7003,00054°
1,7704,00054°
2,0003,0009°
2,0804,0009°
Download all Photometry and BIM Data

Key Features

The design is strictly technical, but with charming hints. Double colour identifying and defining the various components of the projector, creating a connection between the volumes. Form and function are identified and perfect, defined by changes of surfaces and materials.

Applications

Distribution

20°
28°
36°
45°
54°
9°

Specification

Die-cast body and flange made of aluminium alloy with very low copper content. A4 Stainless steel screws. Graduated vernier in AISI 304 stainless steel with double tightening for safe positioning. Gore valve to prevent condensing. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

 Copy specification to clipboard

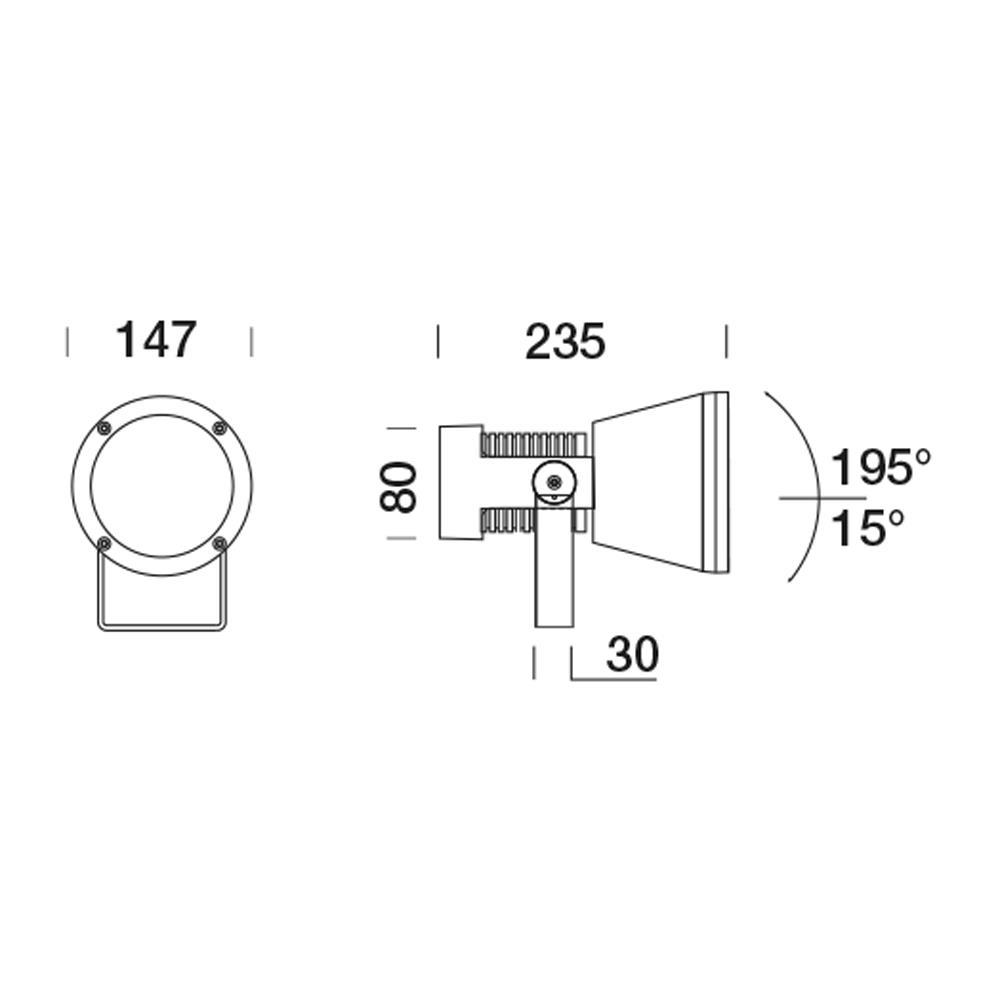

Dimensions

Related Products

SUN Medium Floodlight

Floodlight

STEEL 200 Floodlight

Floodlight

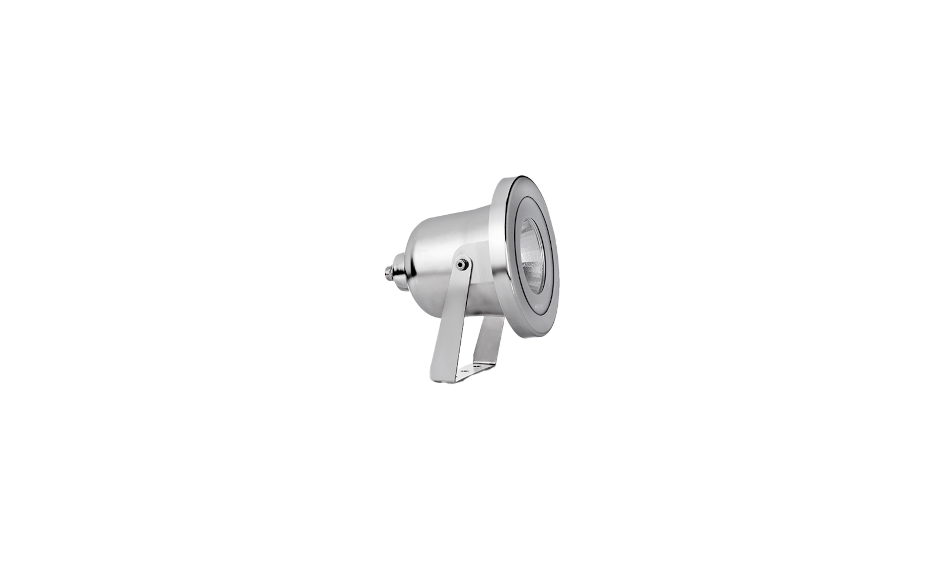

SPRING Floodlight
