SPY Large

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1503,000Asymmetrical
1504,000Asymmetrical
1502,700Asymmetrical
1503,000Asymmetrical
1504,000Asymmetrical
1502,700Asymmetrical
1503,000Asymmetrical
1504,000Asymmetrical
1502,700Asymmetrical
1503,000Asymmetrical
1504,000Asymmetrical
1502,700Asymmetrical
1503,000Asymmetrical
1504,000Asymmetrical
1502,700Asymmetrical
603,000Diffuse
604,000Diffuse
602,700Diffuse
603,000Diffuse
604,000Diffuse
12
Download all Photometry and BIM Data

Key Features

The purity of its geometrical shape makes SPY a visually lightweight product, which does not draw attention, but can be very elegant as soon as it is perceived. When on, SPY provides with marked and enveloping light. The rigorous cleanliness of design is enhanced by the total absence of visible screws. The body, in transparent polycarbonate, accommodates the glass diffuser which is available in several colours. SPY can be used for mounting on concrete or drywall surfaces, both indoor and outdoor.

Applications

Distribution

Asymmetrical
Diffuse

Specification

Transparent UV-resistant polycarbonate body. Metallized polycarbonate reflector. Masonry outer casing included in the product. Tempered glass screen. No screws in the product. IP67 connector included. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

 Copy specification to clipboard

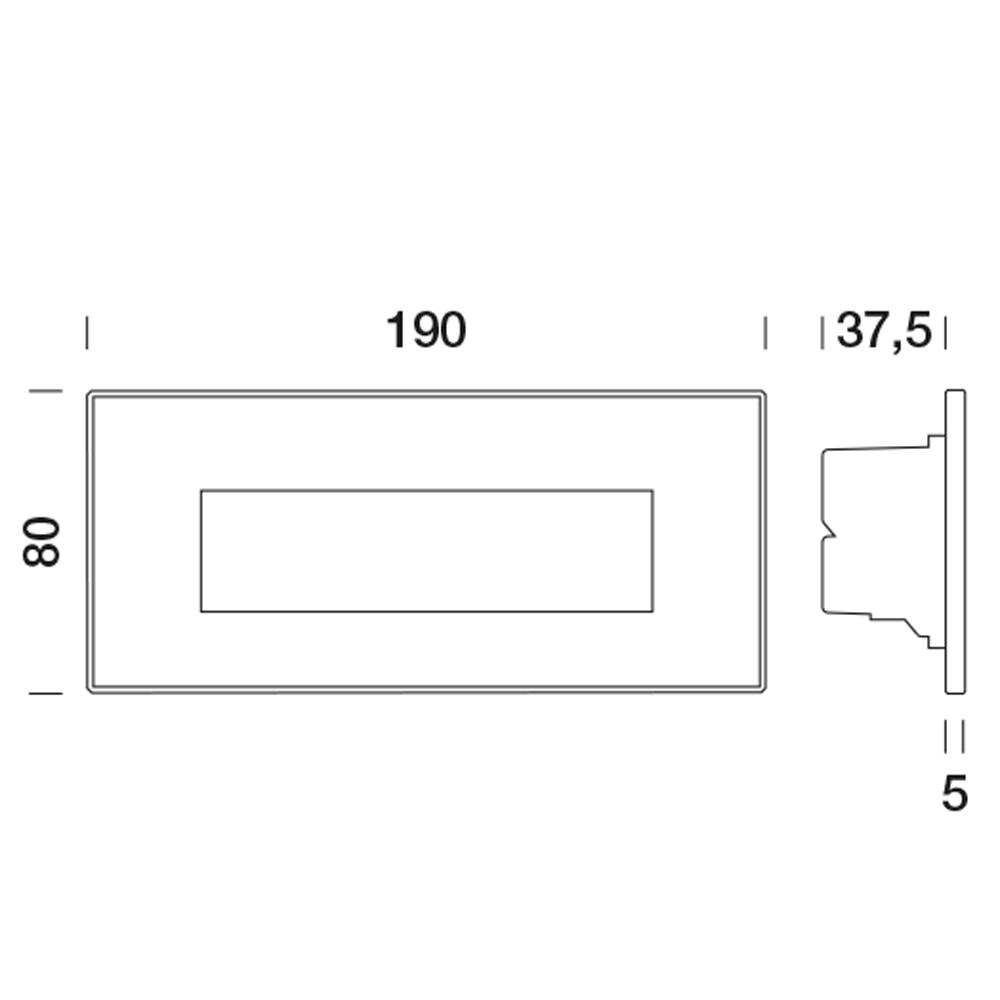

Dimensions
