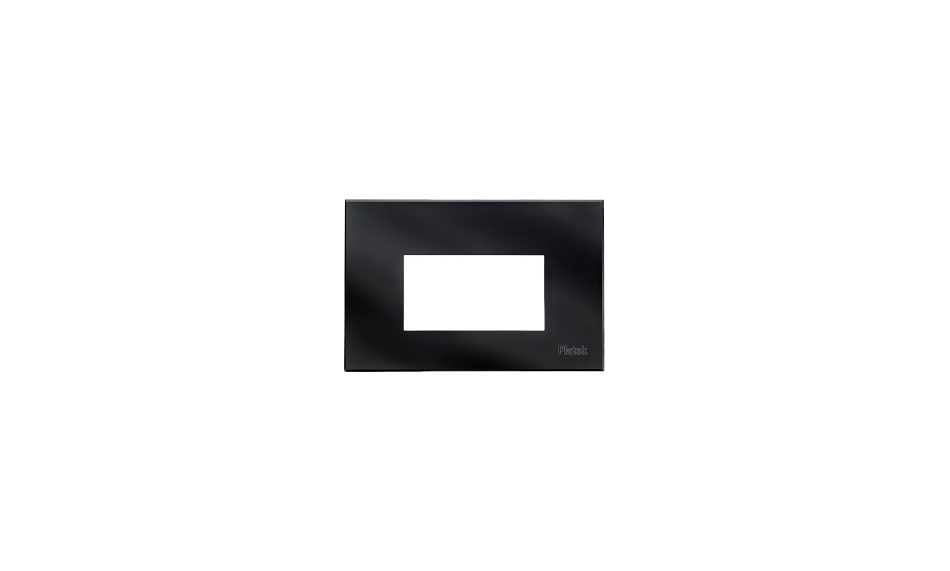

SPY Medium

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1303,000Asymmetrical
1304,000Asymmetrical
1302,700Asymmetrical
1303,000Asymmetrical
1304,000Asymmetrical
1302,700Asymmetrical
1303,000Asymmetrical
1304,000Asymmetrical
1302,700Asymmetrical
1303,000Asymmetrical
1304,000Asymmetrical
1302,700Asymmetrical
1303,000Asymmetrical
1304,000Asymmetrical
1302,700Asymmetrical
503,000Diffuse
504,000Diffuse
502,700Diffuse
503,000Diffuse
504,000Diffuse
12
Download all Photometry and BIM Data

Key Features

 The purity of its geometrical shape makes SPY a visually lightweight product, which does not draw attention, but can be very elegant as soon as it is perceived. When on, SPY provides with marked and enveloping light. The rigorous cleanliness of design is enhanced by the total absence of visible screws. The body, in transparent polycarbonate, accommodates the glass diffuser which is available in several colours. SPY can be used for mounting on concrete or drywall surfaces, both indoor and outdoor.


Applications

Distribution

Asymmetrical
Diffuse

Specification

Transparent UV-resistant polycarbonate body. Metallized polycarbonate reflector. Tempered clear glass screen. No screws in the product. IP67 connector included. Before fixing the diffuser on the Platek products a Pre-treatment using an atmospheric pressure plasma process is carried out on the surface. The process activates the ionic load on the surface exactly where it is needed, thus promoting the best silicone grip possible and removing any residual release of agents for a longer lasting seal. The next steps are the coating of silicone and the assembly of the diffuser on the lighting fixture, with an automated process to guarantee the perfect sealing of the lamp. Outer housing to be ordered separately.

 Copy specification to clipboard

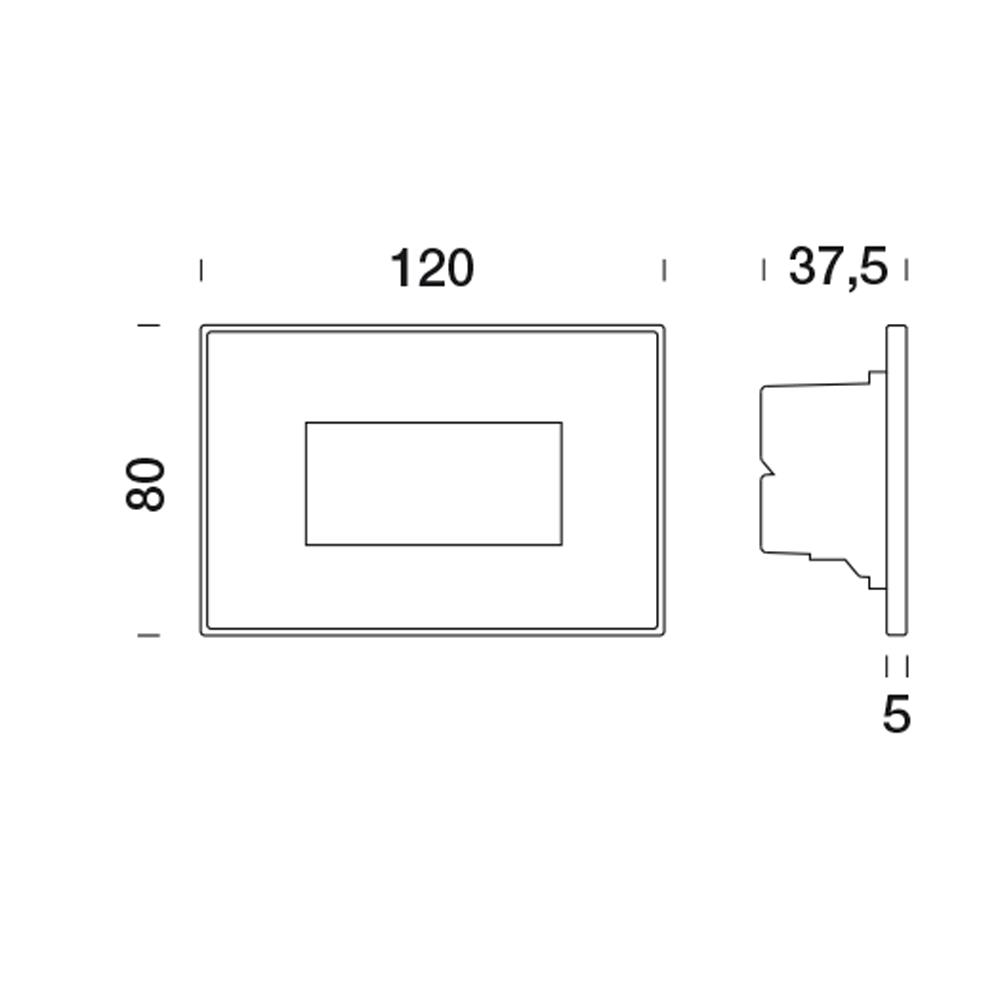

Dimensions
