Holophane - MEDIO

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

18°

44°

Lumen (lm)	Colour Temperature (K)	Distribution
1,630	4,000	18°
3,090	3,000	18°
3,215	4,000	18°
1,650	4,000	44°
3,130	3,000	44°
3,255	4,000	44°

Download all Photometry and BIM Data

Gallery

Key Features

The collection has been renewed, the new lighting sources and treatments adopted make these products highly reliable and able to offer great quality assurance. MEDIO offers high performance and lighting power, it is ideally suited for uplighting important surfaces in terms of width and height and tall trees with large branches. Its thickness is quite contained and the product has a minimal protrusion from the ground or wall surface. The family has been enriched with the Full Inox version that provides even greater resistance to scratching and foot traffic.

Applications

External

Residential

Public Spaces

Distribution

18°

44°

Specification

Die-cast body and flange made of aluminium alloy with very low copper content. A4 Stainless steel screws. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. Outer casing and connector to be ordered separately. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.

Copy specification to clipboard

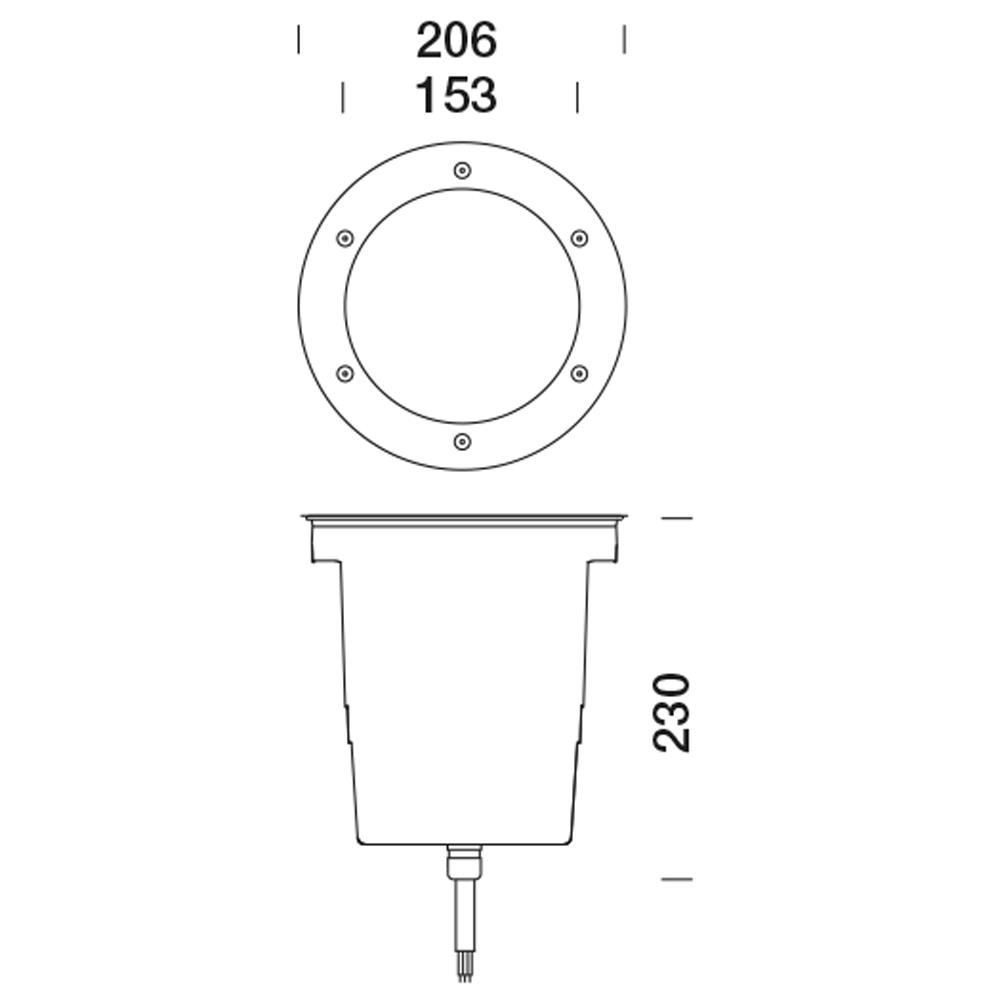

Dimensions

MEDIO

Product code: 2100M

Platek’s landmark recessed ground lighting.

Lumen	1,440 - 3,255
Power consumption	16 - 27
Distributions	2
IK Rating	IK10
IP Rating	IP68
Colour range	3,000 - 4,000
