ASTER Small Pro

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1,1403,00013°
1,1854,00013°
1,1103,00032°
1,1554,00032°
1,1303,00060°
1,1754,00060°
9003,000Asymmetrical
9354,000Asymmetrical
Download all Photometry and BIM Data

Key Features

The possibility of using a remote power supply allows the product to be extremely versatile thanks to the multiple settings of output current. The optics have been specifically designed for a downlight use and allow various declinations: from a narrow to an asymmetrical beam. The product is also available with RGBW LEDs. Available in three sizes - small, medium and large - Aster is introduced in the Basic version with 220-240V line voltage LED and Professional with remote power supply units, either ON/OFF adjustable on different output currents and dimmable.

Applications

Distribution

13°
32°
60°
Asymmetrical

Specification

Die-cast body and base made of aluminium alloy with very low copper content. Flange made of stainless steel AISI 316. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. Available with integrated or remote power supply.

 Copy specification to clipboard

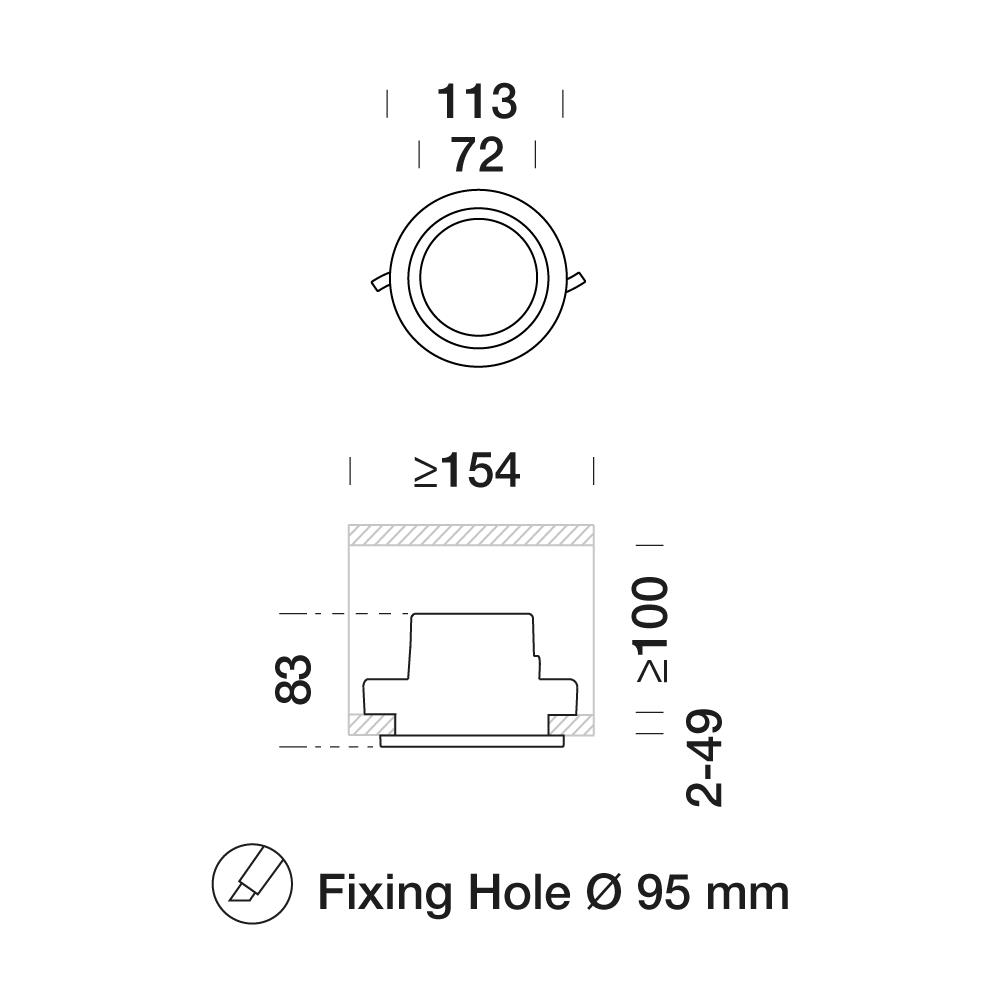

Dimensions
