Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
4653,00012°
4854,00012°
4353,00033°
4504,00033°
4403,00044°
4604,00044°

Key Features

The purity of MINI ONE is enhanced by the total absence of visible screws and wall mount totally hidden. It is available with two and four windows and, alternatively, with blades of light. The bollard version is designed for lighting pedestrian walkways and gardens.

Applications

Distribution

12°
33°
44°

Specification

Die-cast body and flange made of aluminium alloy with very low copper content. No visible screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

Copy specification to clipboard

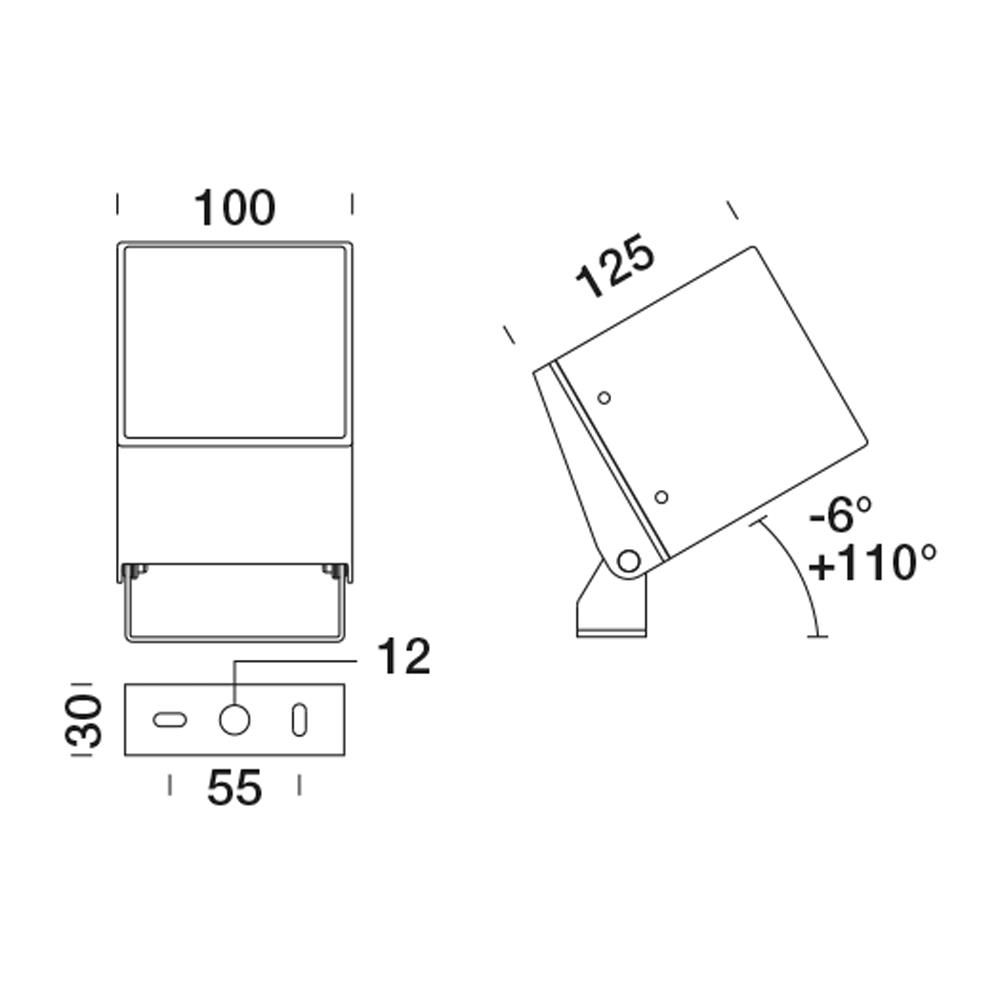

Dimensions

Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
