Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
3,0264,000Asymmetric Long25133
4,2774,000Asymmetric Long36133
5,5534,000Asymmetric Long45133
6,7264,000Asymmetric Long57133
7,8214,000Asymmetric Long71133
3,0293,000Long & Narrow25133
4,3283,000Long & Narrow36133
5,6523,000Long & Narrow45133
6,6563,000Long & Narrow57133
7,6123,000Long & Narrow71133
3,2454,000Long & Narrow25133
4,6384,000Long & Narrow36133
5,9564,000Long & Narrow45133
7,2854,000Long & Narrow57133
8,5064,000Long & Narrow71133
3,1724,000Square Medium25133
4,5634,000Square Medium36133
5,8214,000Square Medium45133
6,9654,000Square Medium57133
8,0134,000Square Medium71133
12

Key Features

Parkpack’s design advantage is its’ ability to offer a range of flexible mounting options, to aid easy installation, and also ensure an easily maintainable luminaire system. Future-proofing is catered for with the integration of ZD4i, enabling use with an ever expanding eco-system of smart sensors and devices.

  • Lumen packages from 3,000 - 8,000 lumens with efficacies of up to 135 lumens per Watt.
  • 5 optimised optical distributions (Square Narrow, Square Medium, Square Wide, Asymmetric Long and Long & Narrow) delivered by quality LEDS and bespoke UV stabilised PMMA optics.
  • Patented Transition Zone helps to reduce perceived glare of LEDs.

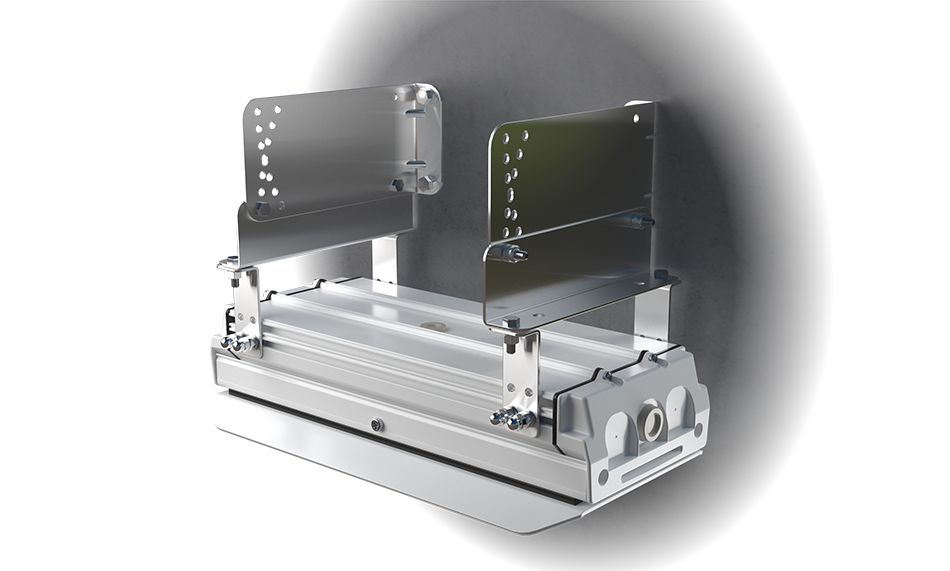

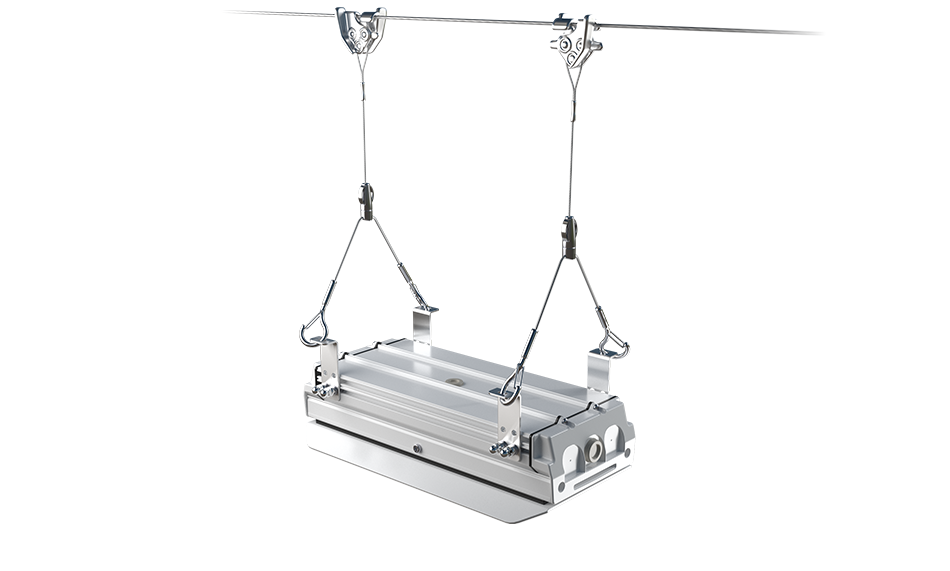

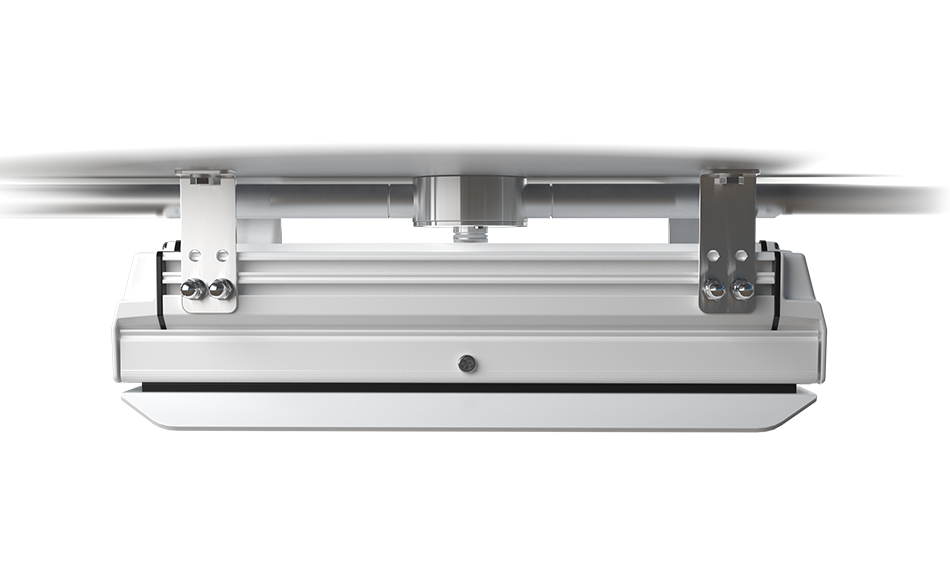

  • Flexible mounting bracket/accessories cater for a range of project requirements and make for easy installation of the luminaire.
  • As standard Parkpack has IP65 cable entry points on both sides and the top of the luminaire.
  • Integrated ZD4i compatibility via the TZ02 option. Compatibilty with a range of 3rd party photocells, devices and sensors.
  • Integrated 1hr & 3hr emergency options.
  • Compatible with Controlux Air & HOLOS Air

Applications

Distribution

Specification

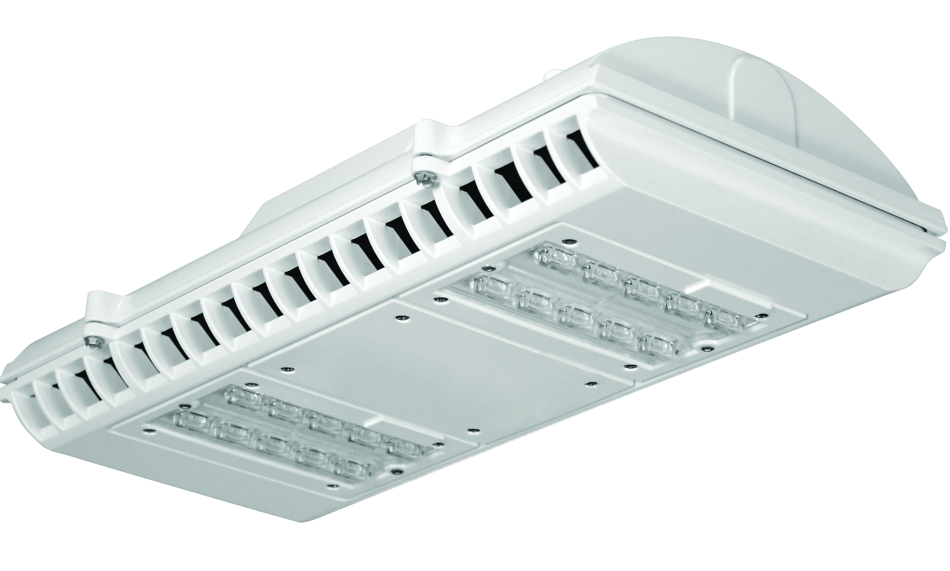

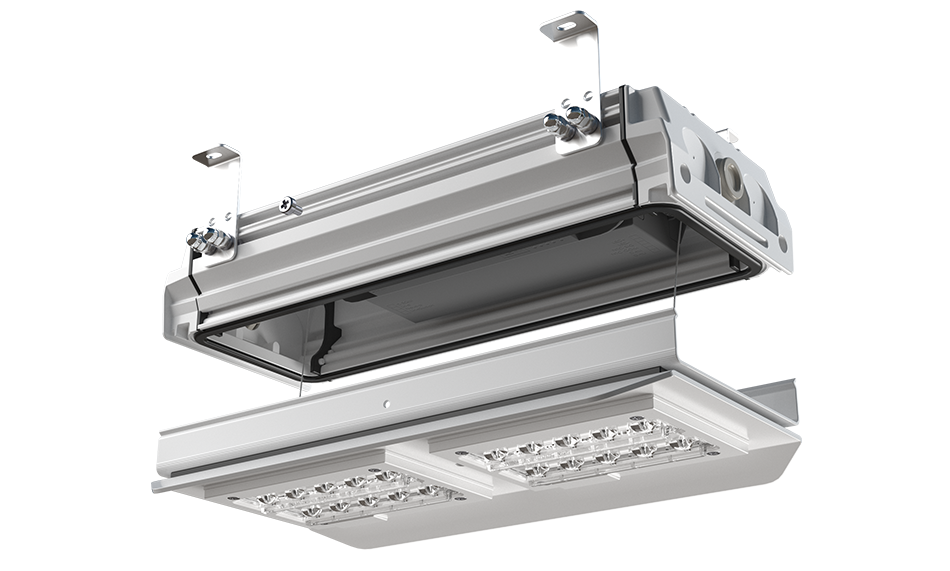

Holophane Parkpack utilises a powder coated extruded aluminium (AL 6063-T6) body/housing combined with 2 x 10LED modules. The LED modules and body are both sealed to IP65. Heat is transferred away from the LEDs using a highly heat conductive aluminium plate. The driver and LED modules are mounted separately from each other to promote low operating temperatures and long system life. Mounting of Parkpack is facilitated using a dual position stainless steel bracket suitable for surface mounting or in conjunction with a 20/25mm BESA box. Cable entry is via either the 2 x side or top entry IP65 cable glands. Access to the gear compartment is facilitated by removal of 2 retaining screws and a snap-on/off door.

3000K or warmer must be selected for IDA dark sky certification.

Copy specification to clipboard

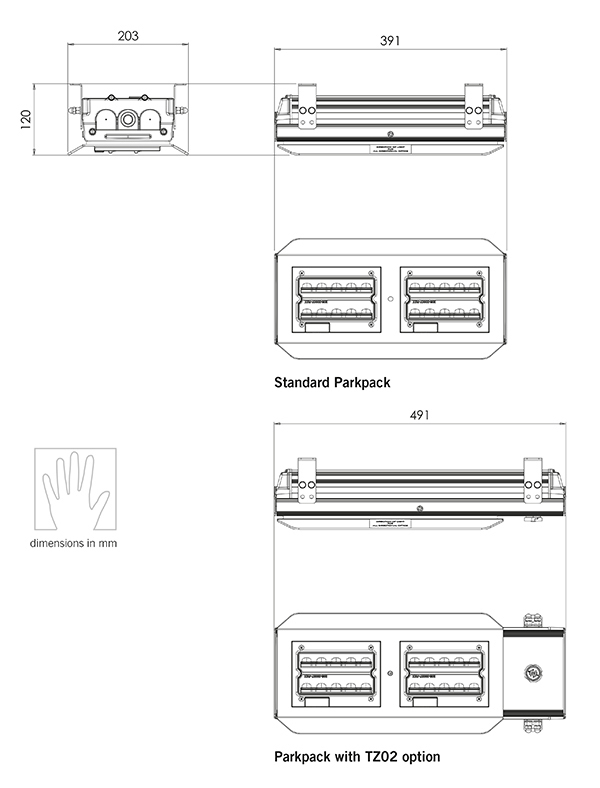

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
