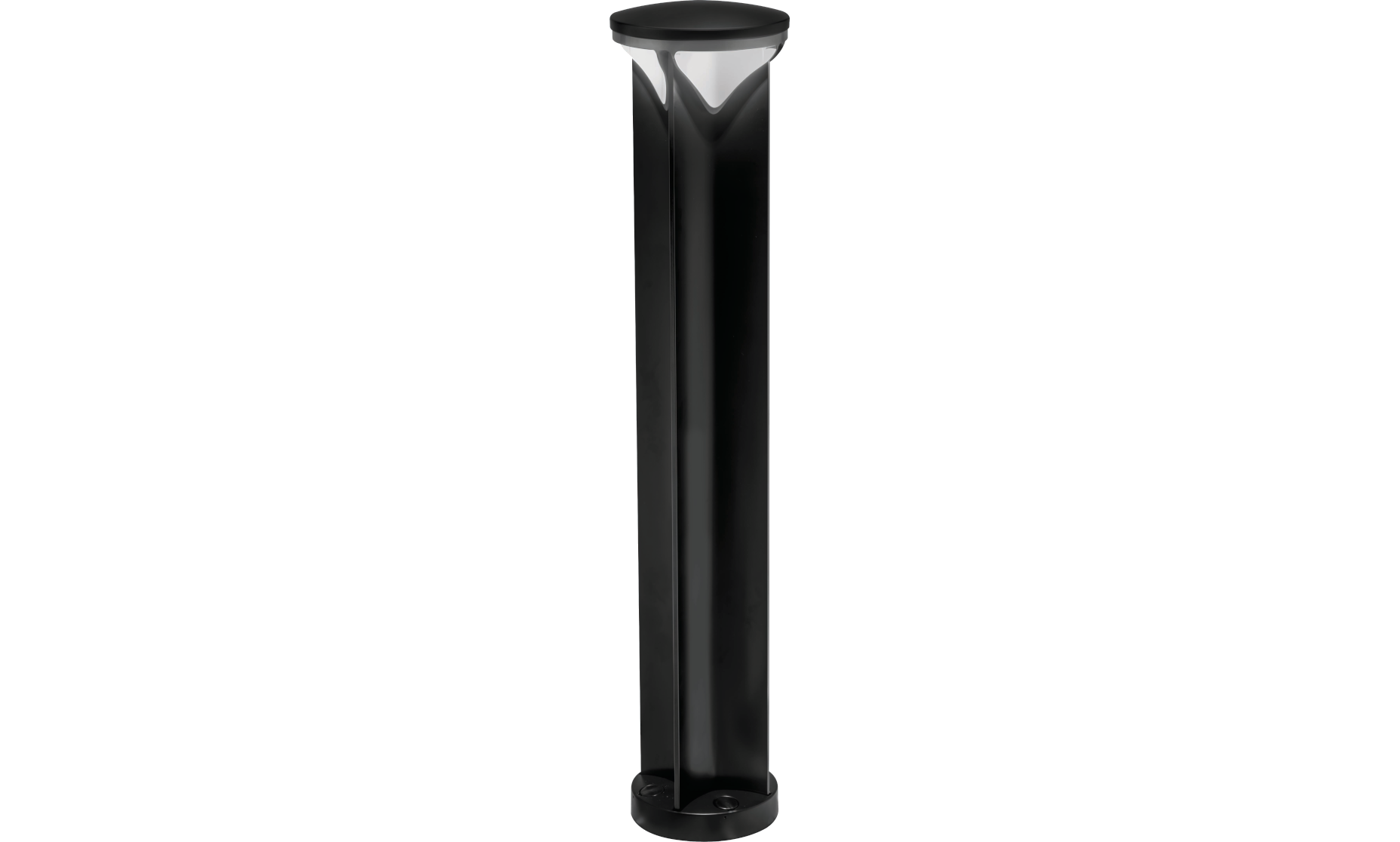

Signature™ Bollard

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
1,1342,700Asymmetric1290
7312,700Asymmetric1290
8402,700Asymmetric1290
7292,700Asymmetric1290
1,6822,700Asymmetric1890
1,0852,700Asymmetric1890
1,2462,700Asymmetric1890
1,0822,700Asymmetric1890
1,1913,000Asymmetric1290
7683,000Asymmetric1290
8823,000Asymmetric1290
7663,000Asymmetric1290
1,7663,000Asymmetric1890
1,1393,000Asymmetric1890
1,3093,000Asymmetric1890
1,1363,000Asymmetric1890
1,2514,000Asymmetric1290
8074,000Asymmetric1290
9264,000Asymmetric1290
8044,000Asymmetric1290
123
Download all Photometry and BIM Data

Key Features

With sleek lines and simple silhouettes, these LED luminaires transform common areas like courtyards, outdoor retail locations, universities and corporate campuses into thriving night-time environments.

  • SIGNATURE bollard ties the space together with specific design elements to match the look of the SIGNATURE Post Top and Arm Mount, creating project consistency
  • SIGNATURE Bollard has both symmetric and asymmetric distributions, you can put the light where you need it
  • SIGNATURE Bollard is available with an integral 1hr or 3hr maintained self-test emergency option.

Applications

Distribution

Specification

The Holophane SIGNATURE Bollard ties a space together with specific design elements to match the design of the SIGANTURE Post Top and Side Arm luminaires, creating a cohesive family look. The product is manufactured with a one-piece extruded aluminium shaft with thick side walls for extreme durability and die-cast reflector and top cap both sealed to IP65. As standard SIGNATURE Bollard is of 1m height and supplied with a 1m flying lead.

 Copy specification to clipboard

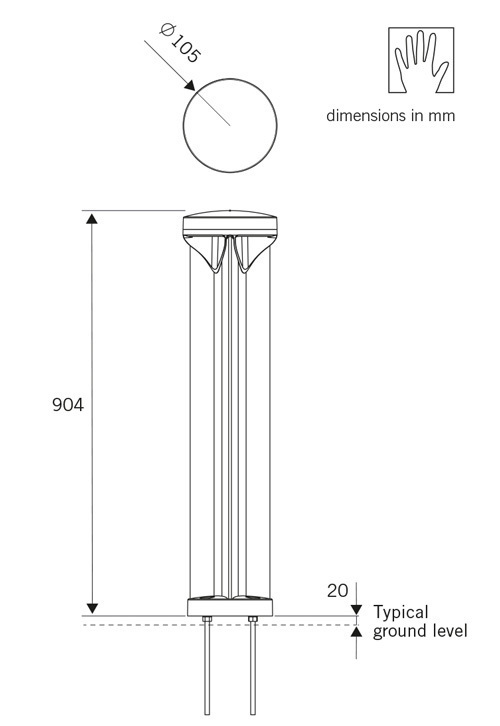

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
