Holophane - SUN Heavy Floodlight

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

14°

26°

60°

Asymmetrical

Street optic

Lumen (lm)	Colour Temperature (K)	Distribution
4,140	3,000	14°
4,140	4,000	14°
7,280	3,000	26°
7,280	4,000	26°
7,600	3,000	60°
7,600	4,000	60°
5,090	3,000	Asymmetrical
5,090	4,000	Asymmetrical
6,765	3,000	Street optic
6,765	4,000	Street optic

Download all Photometry and BIM Data

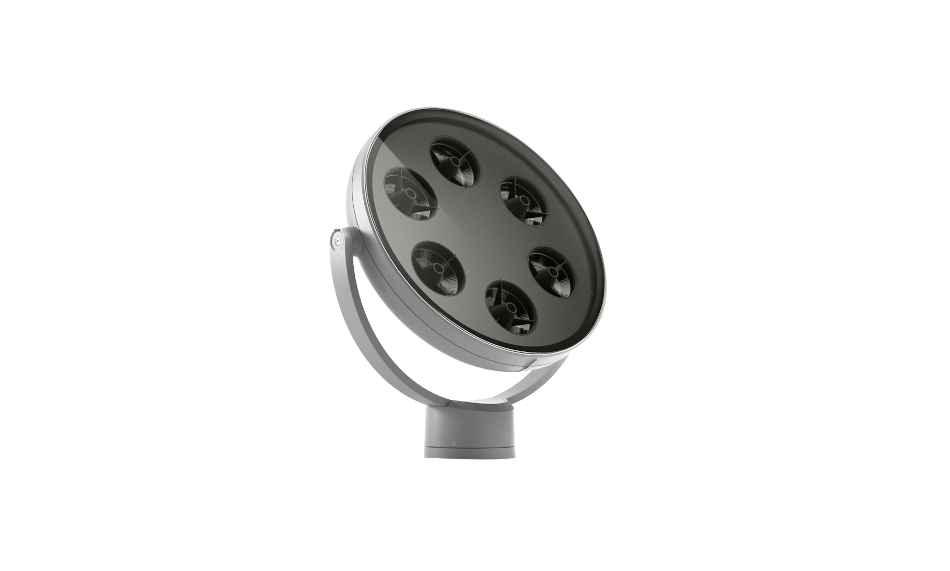

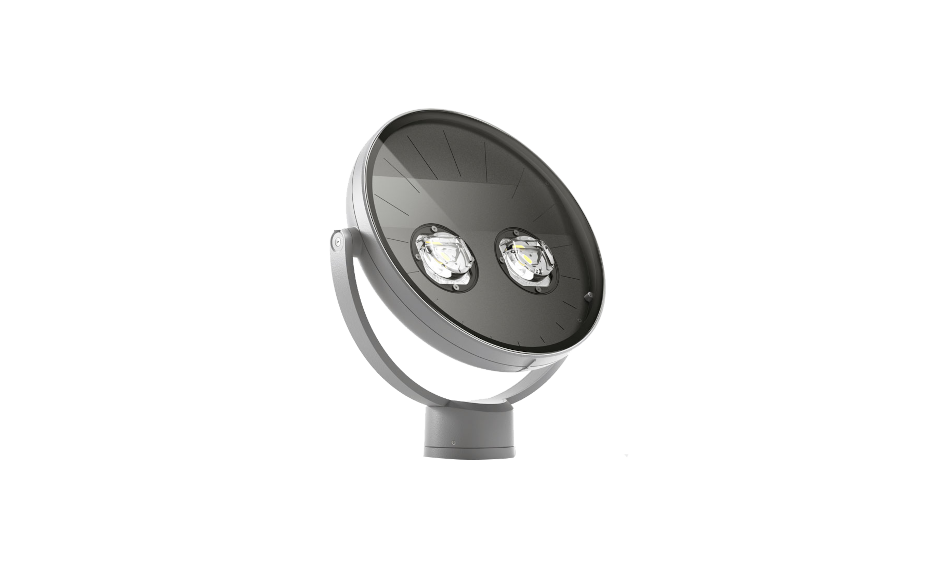

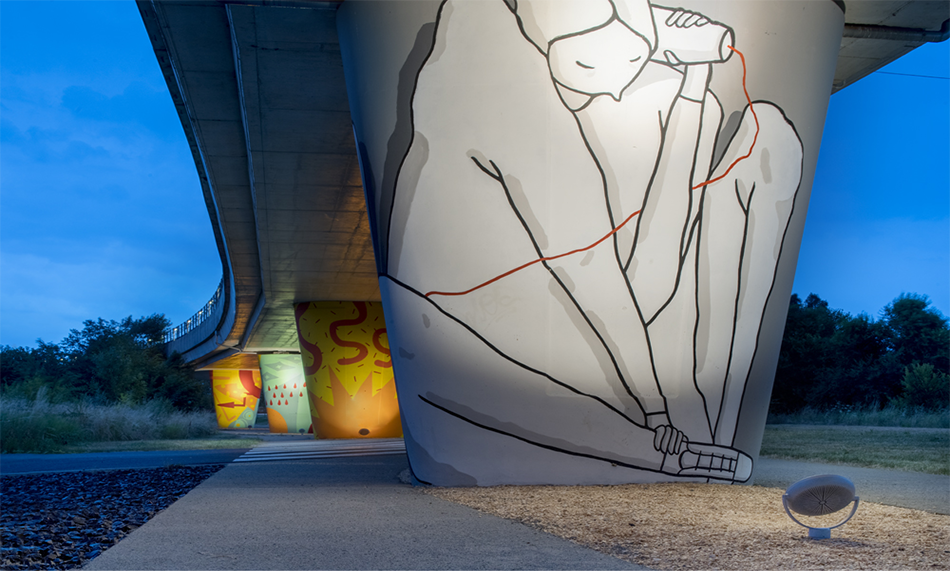

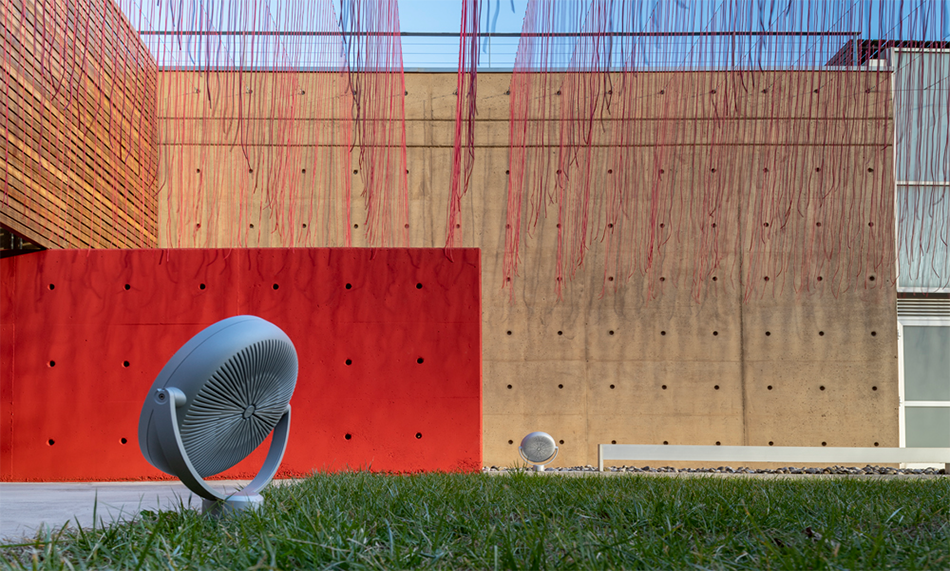

Gallery

Key Features

The design is strictly technical in feel, with decidedly captivating aspects. Form and function are clearly identified and come together perfectly in the defined changes of surface finish and materials. Of particular note: the technological equipment is designed to show off the optics to best effect.

Applications

External

Residential

Public Spaces

Distribution

14°

26°

60°

Asymmetrical

Street optic

Specification

Die-cast body made of aluminium alloy with very low copper content. No visible cables. Central rotation joint on two axes with clamping system with safety locking pin for safe positioning. A4 Stainless steel screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on products.

Copy specification to clipboard

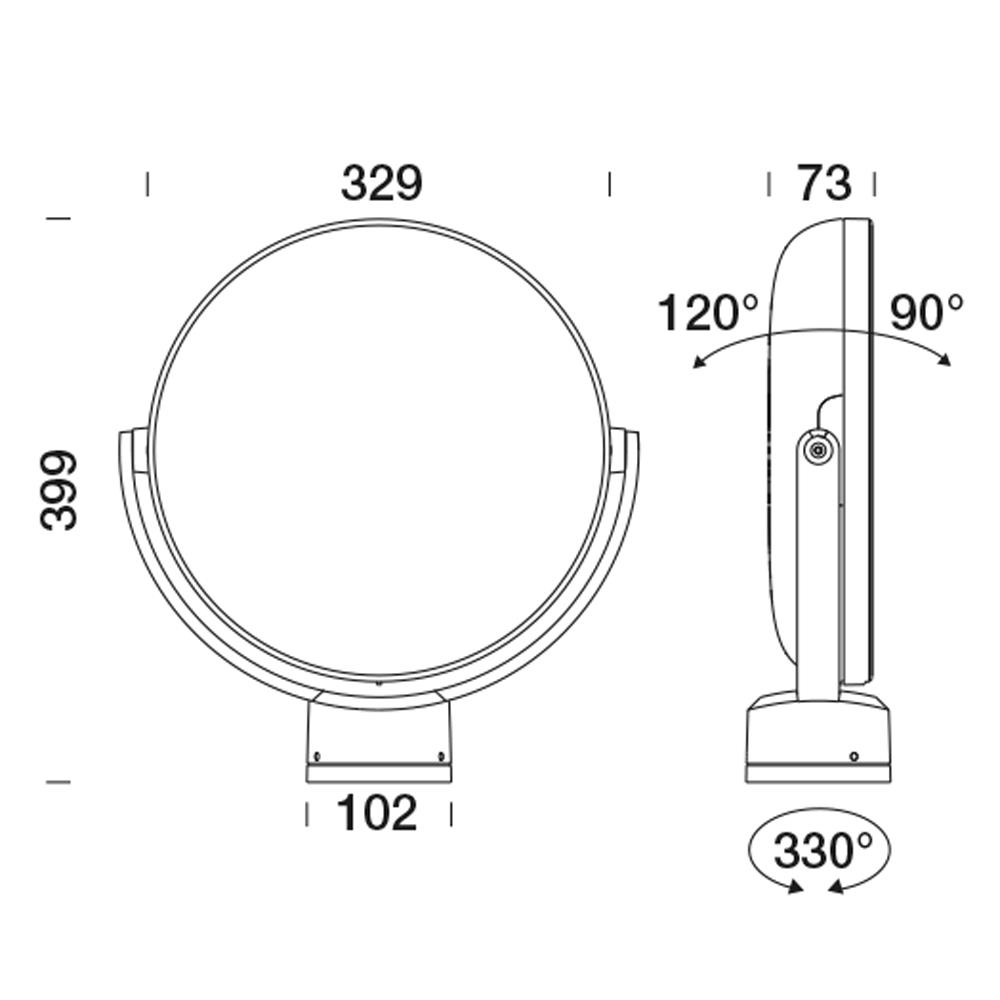

Dimensions

SUN Heavy Floodlight

Product code: SUNH

A family of floodlights designed by the Lundbergdesign Studio, in various sizes and wattages, with white or dynamic light, suitable for meeting any outdoor lighting design requirement.

Lumen	4,140 - 7,600
Power consumption	76 - 80
Distributions	5
IK Rating	IK10
IP Rating	IP66
Colour range	3,000 - 4,000
