Holophane - TETRA INCASSO 360

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

12°

13°

26°

40°

Asymmetrical

Elliptical

Lumen (lm)	Colour Temperature (K)	Distribution
980	3,000	12°
1,040	4,000	12°
490	3,000	13°
520	4,000	13°
1,030	3,000	26°
1,070	4,000	26°
515	3,000	26°
535	4,000	26°
930	3,000	40°
960	4,000	40°
465	3,000	40°
480	4,000	40°
430	3,000	Asymmetrical
450	4,000	Asymmetrical
860	3,000	Elliptical
890	4,000	Elliptical
430	3,000	Elliptical
445	4,000	Elliptical

Download all Photometry and BIM Data

Gallery

Key Features

Individual or grouped parallelepipeds in drawings of emptiness or solidness, create a visual dialogue of great impact. Thanks to the flexibility of the base element, TETRA achieves to meet every need for lighting in several fields of application: walls, surfaces of vehicular traffic, pathways, gardens and parks.

Applications

External

Residential

Public Spaces

Distribution

12°

13°

26°

40°

Elliptical

Specification

Body made of extruded aluminium alloy, corrosion resistant. Protection with anodizing treatment, epoxy powder base coating and polyester painting. A4 stainless steel screws. Gore valve to prevent condensation inside the fitting. Closing frame made of AISI 316L stainless steel. AISI 430 stainless steel sleeve to be ordered separately. Installation in sleeve set in concrete, with a 20-30 cm gravel drain bed.

Copy specification to clipboard

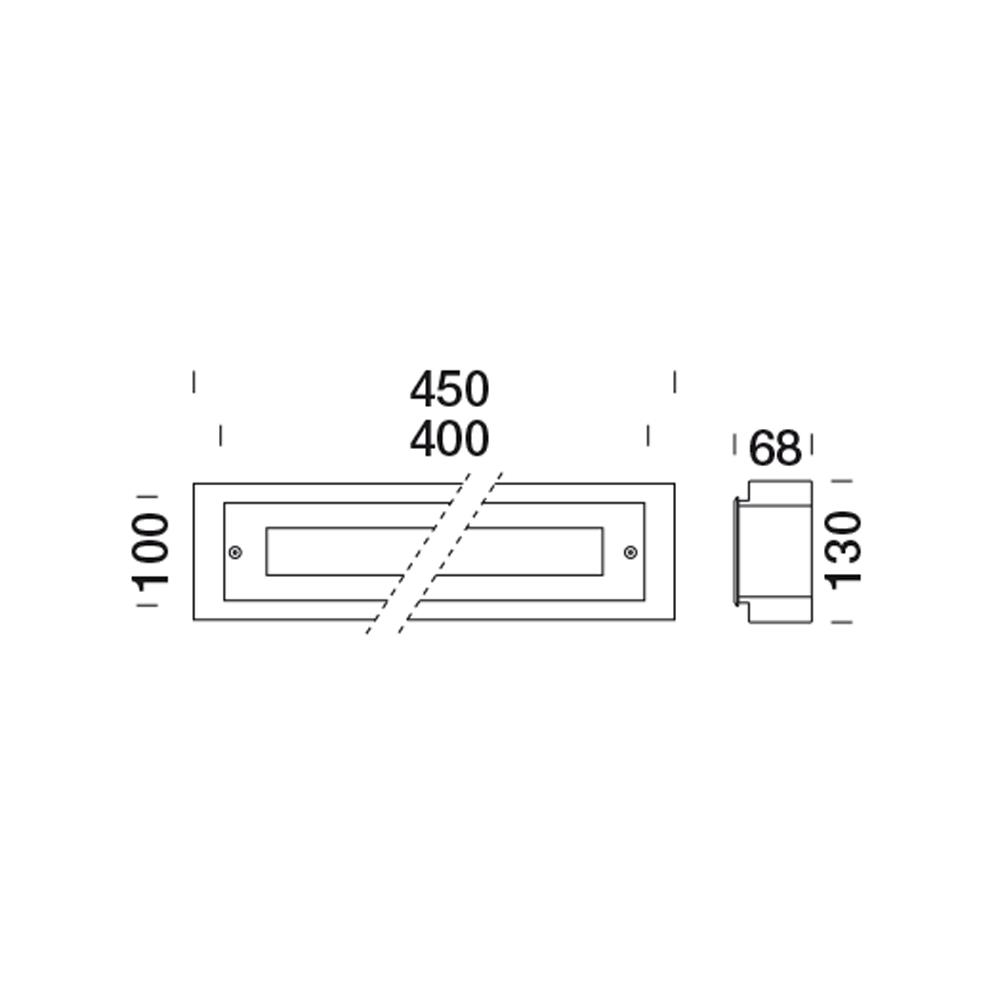

Dimensions

TETRA INCASSO 360

Product code: TI36

TETRA is a family of ground recessed products and wall lights where rationalism and flexibility of use are meeting, designed on the base of rectangular shapes.

Lumen	430 - 1,070
Power consumption	7.3 - 13.5
Distributions	6
IK Rating	IK10
IP Rating	IP65/67
Colour range	3,000 - 4,000
