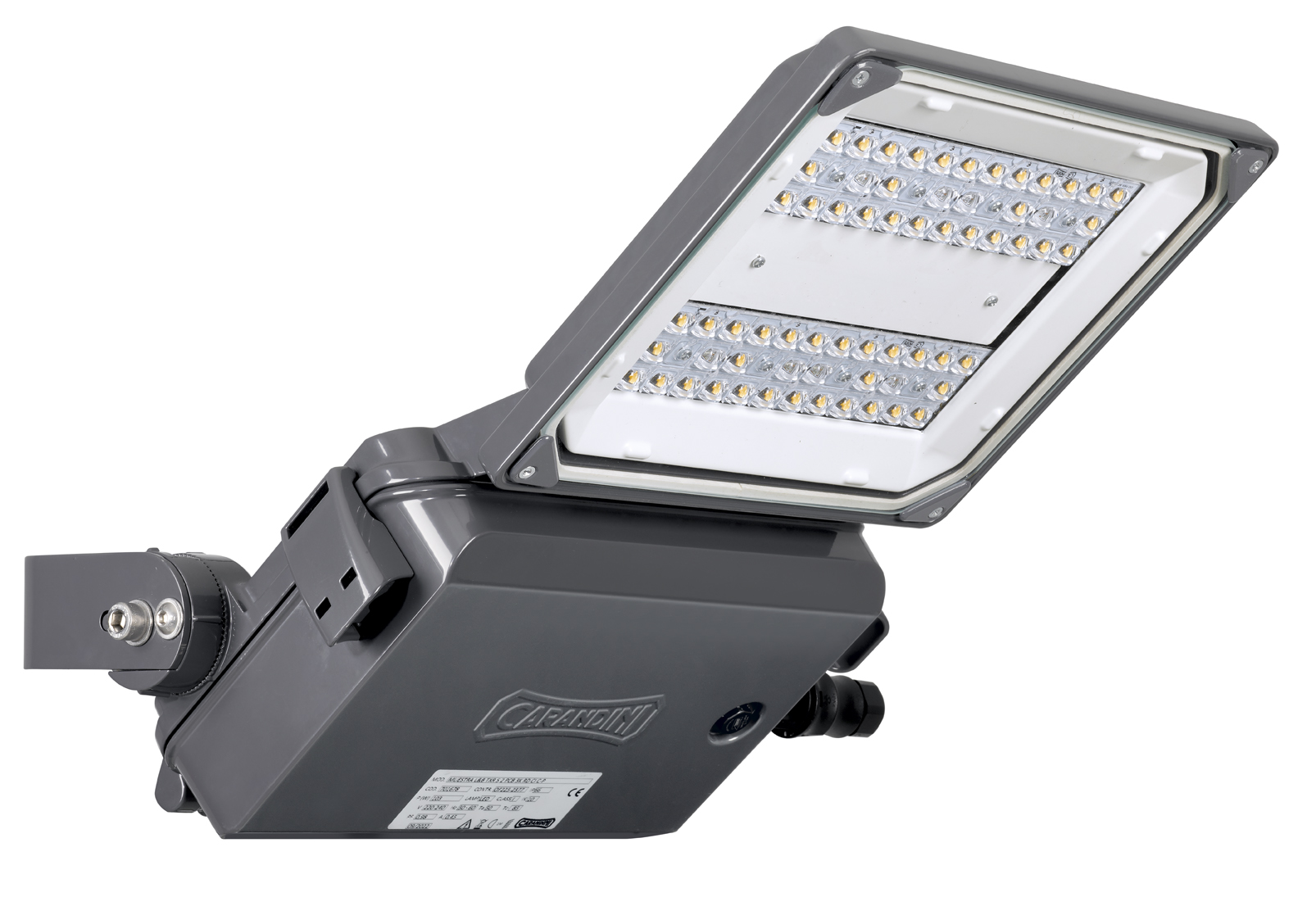

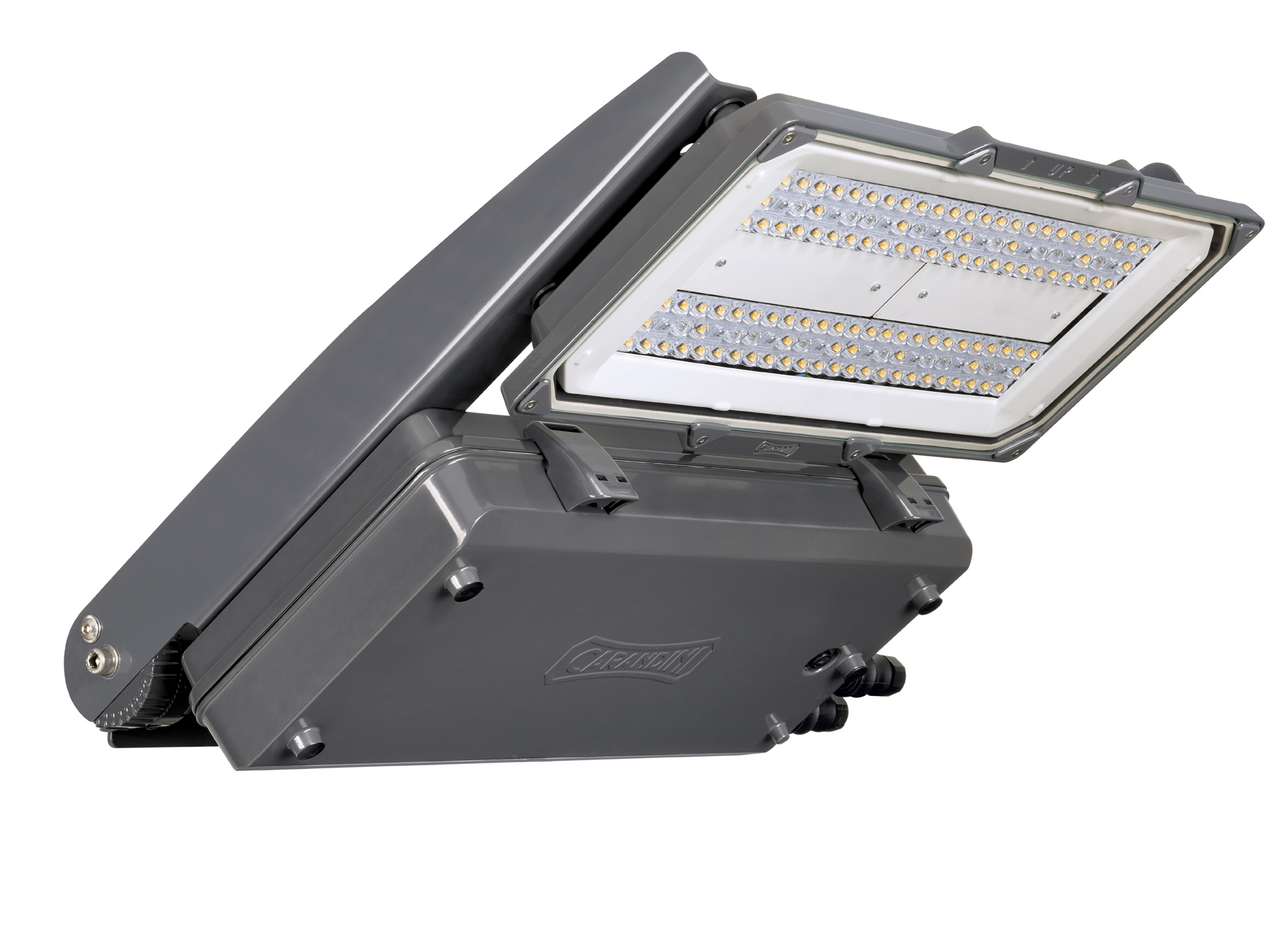

T-XTREME

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
4,0003,000ACE331165
4,0004,000ACE331165
5,0003,000ACE335165
5,0004,000ACE335165
6,0003,000ACE343165
6,0004,000ACE343165
7,0003,000ACE352165
7,0004,000ACE352165
8,0003,000ACE361165
8,0004,000ACE361165
9,0003,000ACE369165
9,0004,000ACE369165
10,0003,000ACE379165
10,0004,000ACE379165
11,0003,000ACE388165
11,0004,000ACE388165
12,0003,000ACE386165
12,0004,000ACE386165
13,0003,000ACE394165
13,0004,000ACE394165
12345678910...
Download all Photometry and BIM Data

Key Features

T-Extreme has been developed to operate at temperatures ranging between -40° and 50° depending on the power chosen and is specially designed to provide accurate lighting throughout the life of the project.

The luminaire us a robust projector that withstands decades of operation in tunnel environments. Modular design in 3 sizes with different fixing solutions.

It uses Zhaga components to minimize and facilitate maintenance tasks. The driver is accessible from the front and requires no tools.

  • A unique, single solution to maintain throughout all phases of the tunnel.
  • Temperature dissipation by the 3 principles of heat transfer (conduction, convection and radiation), through design modularity, body ventilation channels and levera-ging the Venturi effect of the tunnel.
  • 12 Distribution options
  • Developed to deliver up to 165lm/w
  • Designed specifically for stringent environments where durability, performance and reliability are critical.
  • Lineal system and projection.
  • Simplifies installation

Applications

Distribution

Specification

The T-XTREME luminaire comprises of die-cast aluminium EN AC 44100. Low Cu content <0,15% housing with high transmittance tempered flat glass, 5mm thick. Mounting brackets are painted steel with anti-corrosion treatment. To prevent galvanic corrosion, incorporates molded technical polymer insulators at the joints of LED and GBOX modules with the metal supports.

 Copy specification to clipboard

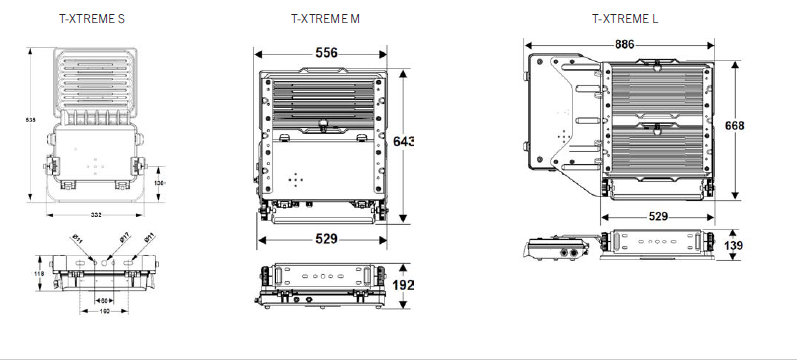

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
