Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
3,4224,000Symmetric23101
4,2694,000Symmetric29101
5,0294,000Symmetric34101
5,7194,000Symmetric40101
7,6314,000Symmetric52101
8,5594,000Symmetric60101

Key Features

Applications

Distribution

Specification

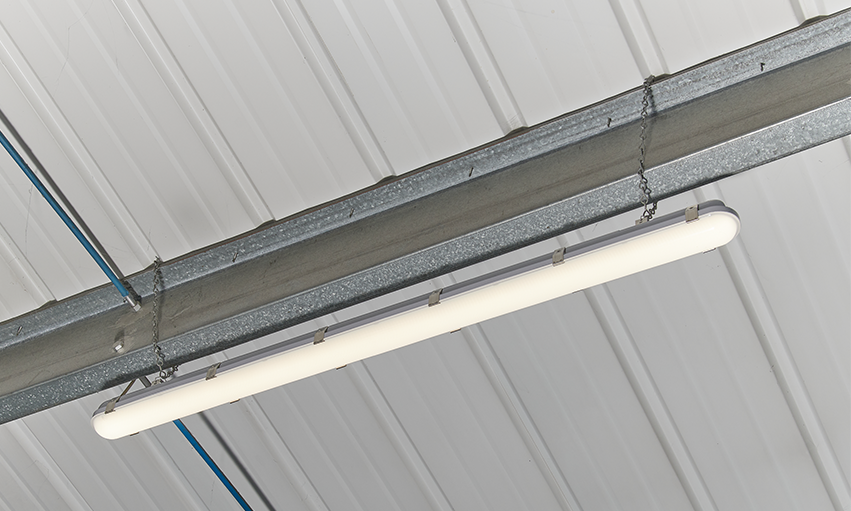

The IP66, IK10 enclosure is suitable for both surface and suspended installation and comes supplied as standard with a comprehensive installation kit.

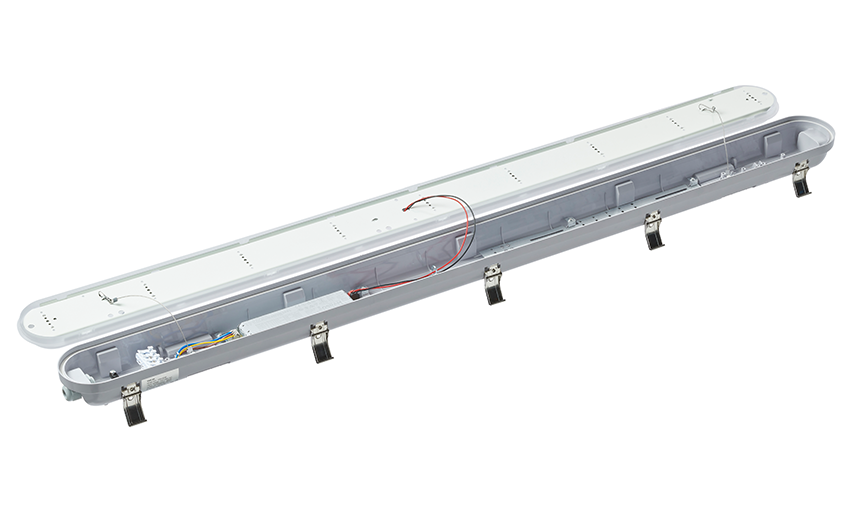

The sealed polycarbonate enclosure utilises stainless steel clips making the Vanguard Linear also ideal for a variety of applications.

The high transmission opal diffuser is optimised for a wide photometric distribution, resulting in a highly efficient luminaire that delivers excellent general illuminance.


Copy specification to clipboard

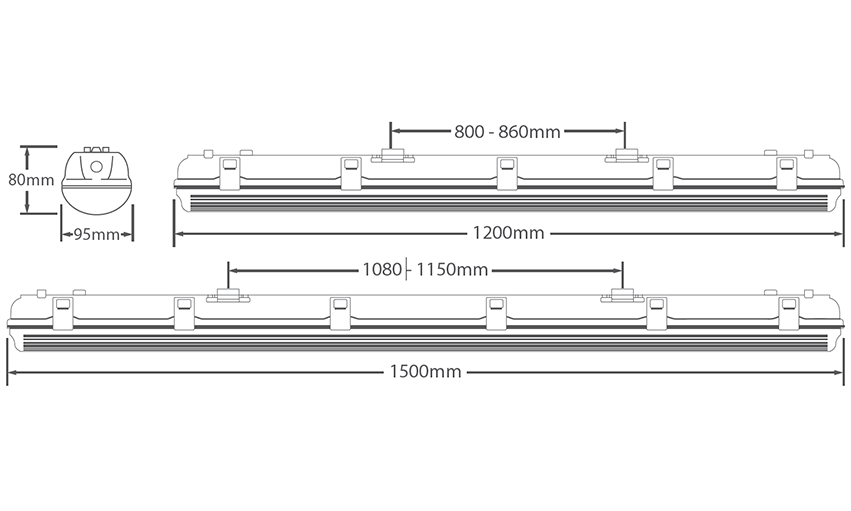

Dimensions

Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
