Woburn

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
1,5793,000Asymmetric13115
1,9753,000Asymmetric17115
2,9003,000Asymmetric27115
3,9523,000Asymmetric35115
5,0863,000Asymmetric46115
5,8013,000Asymmetric54115
7,0703,000Asymmetric63115
7,6293,000Asymmetric69115
8,3103,000Asymmetric81115
9,4283,000Asymmetric84115
10,8873,000Asymmetric100115
12,2873,000Asymmetric115115
12,7163,000Asymmetric115115
13,6103,000Asymmetric125115
14,5043,000Asymmetric134115
15,3593,000Asymmetric144115
16,3333,000Asymmetric150115
17,4053,000Asymmetric161115
18,4313,000Asymmetric173115
1,6574,000Asymmetric13115
123456
Download all Photometry and BIM Data

Key Features

High quality precision optics achieve the outstanding performance and uniformity that you would expect from a Holophane luminaire, providing two different light distributions for a variety of applications. Both luminaires are available with a range of decorative brackets and column embellishments to create a distinctive look in harmony with the surrounding architecture.

  • Maximum efficiency and uniformity for any application
  • Adaptable aesthetics to blend in with the environment
  • Easy maintenance

Applications

Distribution

Specification

The luminaire shall consist of an aluminium spun canopy and a dished, clear UV stable polycarbonate enclosure, housing a combined removable gear and a hinge down optic tray for use with a range of LED lumen packages. Access to the luminaire shall be achieved by releasing two over-centre catches. The luminaire shall be suitable for pendant mounting on a range of decorative brackets via an easy fit coupling or with an 11/4’’ to 1,1/4” BSP thread. The luminaire shall be sealed to IP65 and complies with EN60598. A factory-fitted miniature photocell shall be available as an option.

 Copy specification to clipboard

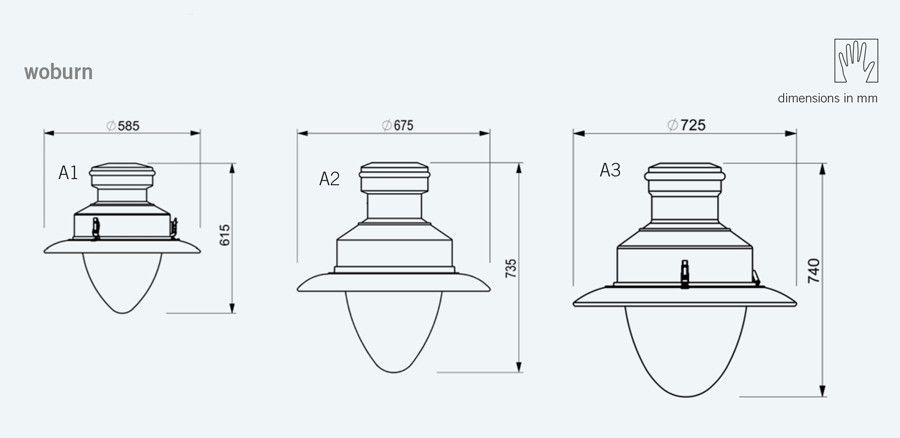

Dimensions
