Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
9954,000
8904,00028°
8054,00044°

Key Features

The collection was renewed through light sources of latest generation and by means of surface treatments that have increased reliability even in particularly demanding conditions of use. The high performance and lighting technical efficiency make MINI suitable for lighting large surfaces and tall trees with large foliage. The thickness is very low and the product has a minimum projection from the floor or from wall. The family was enriched with Full Inox versions that guarantee extreme resistance against scratches and footsteps.

Applications

Distribution

28°
44°
9°

Specification

Die-cast body made of EN 44100 aluminium alloy with very low copper content. Closing flange in AISI 316 stainless steel. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance.

Copy specification to clipboard

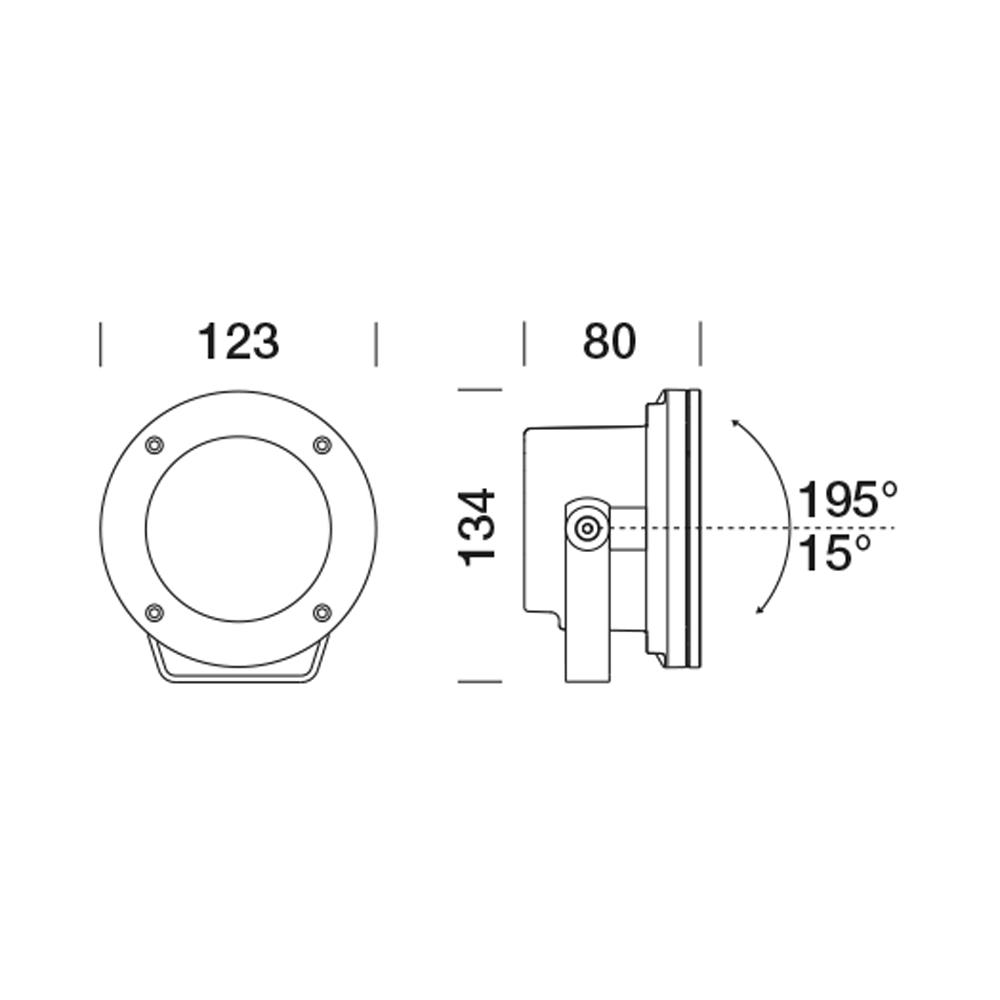

Dimensions
