Prismaspace™

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
11,1504,000Medium distribution with High angle shield81179
12,4124,000Medium81179
10,9114,000Narrow distribution with High angle shield81179
12,4364,000Narrow81179
11,0184,000Open distribution with High angle shield81179
12,3384,000Open81179
15,8684,000Medium90179
15,3664,000Narrow90179
16,1654,000Open90179
13,3934,000Medium distribution with High angle shield100179
14,9994,000Medium100179
13,2044,000Narrow distribution with High angle shield100179
15,0224,000Narrow100179
13,2794,000Open distribution with High angle shield100179
14,9554,000Open100179
19,4284,000Medium111179
18,7544,000Narrow111179
19,7144,000Open111179
15,5914,000Medium distribution with High angle shield120179
17,4614,000Medium120179
12345
Download all Photometry and BIM Data

Key Features

The solution fuses the latest in highly efficient mid-power LEDs with the distinguished dynamics of Holophane’s durable prismatic optics.

Combined to deliver unparalleled uniformity and the best in class Adaptable Lighting Solution.

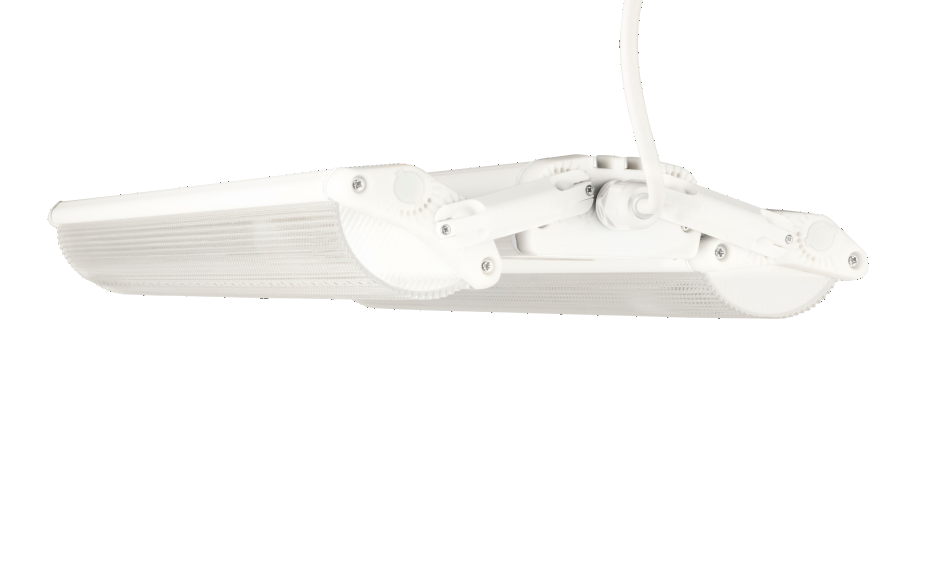

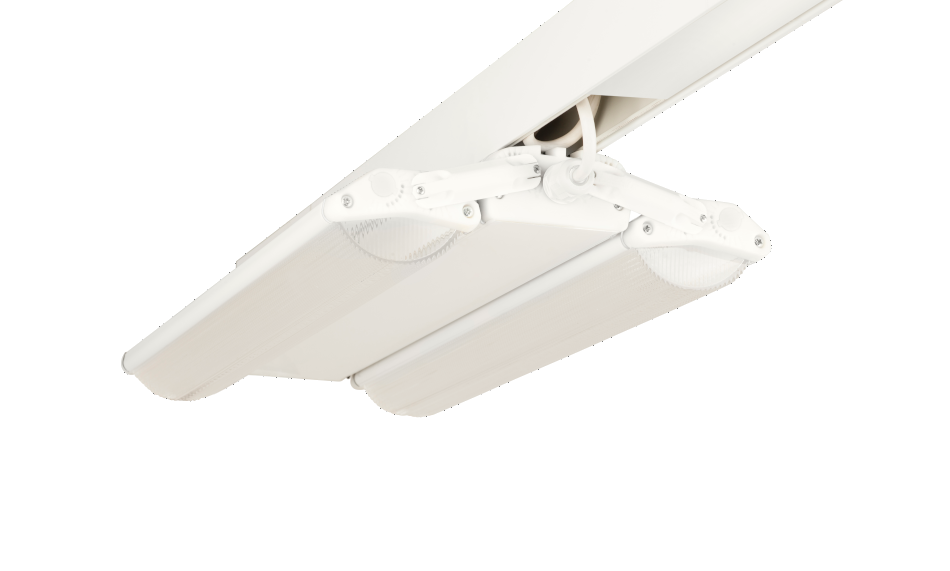

  • Available as a single or double optical modules with a range of outputs that can be suspended or mounted directly to trunking.
  • Trunking available with T-joints, cross joint or corner joint allowing full on site flexibility.
  • Emergency, sensors and controls integrated into the luminaire or available as standalone items that can be mounted directly to trunking system.
  • Unique design of the LED module that utilises the latest mid-power LEDs to deliver a market leading efficacy (up to 150lpw), reduced installation, power consumption and payback time.
  • Incorporates PrismaLED technology which delivers a wholly luminous effect that accurately controls the output of the LEDs and reduces glare with ‘PrismGlow’.
  • Refractor technology with rounded ‘light blending’ prisms on the inner surface and sharper ‘light controlling’ prisms on the outer surface help to ‘blend and shape’ the light output. Combined this delivers a uniformed vertical and horizontal lighting solution.
  • Unique rotational system enabling optics to be angled by up to 180º allowing the user to ‘customise’ the distribution to focus on specific working areas if required.

Applications

Distribution

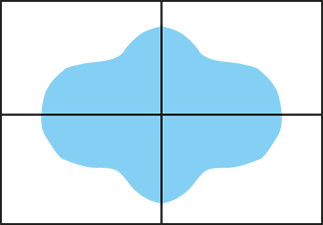

Narrow

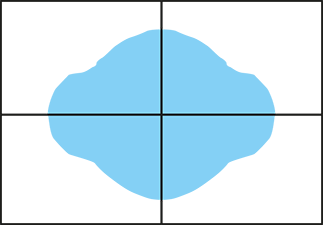

Open

Specification

The luminaire shall consist of an extruded aluminium (6063 T6) body with two bespoke moulded plastic (Glass filled PA6-6) end caps ensuring a rigid linear design. The optical arrangement consists of mid power LEDs mounted to the aluminium backed PCB which are then directly attached to the extruded aluminium optical assembly to aid heat dissipation by way of conduction. The LED array is arranged behind an acrylic (PMMA) prismatic lens. The optical arrangement will consist of either a single or double optic that can be rotated up to 180 degrees via the adjustable arm assembly - only available with IP65 version.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
