Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1,5003,00013°
1,5403,00026°
1,3003,000Elliptical
1,4003,00040°
1,5604,00013°
1,6004,00026°
1,3504,000Elliptical
1,4554,00040°
3,0003,00013°
3,0903,00026°
2,5903,000Elliptical
2,7903,00040°
3,1204,00013°
3,2204,00026°
2,6904,000Elliptical
2,9004,00040°
9803,00013°
1,0303,00026°
8603,000Elliptical
9303,00040°
12

Key Features

Individual or grouped parallelepipeds in drawings of emptiness or solidness, create a visual dialogue of great impact. Thanks to the flexibility of the base element, TETRA achieves to meet every need for lighting in several fields of application: walls, surfaces of vehicular traffic, pathways, gardens and parks.

Applications

Distribution

13°
26°
40°
Elliptical

Specification

Extruded aluminium alloy body. A4 Stainless steel screws. Gore valve to prevent condensing inside the product. AISI 304 stainless steel fixing brackets equipped with an adjustment device with a rotation angle of 0-15°;. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

Copy specification to clipboard

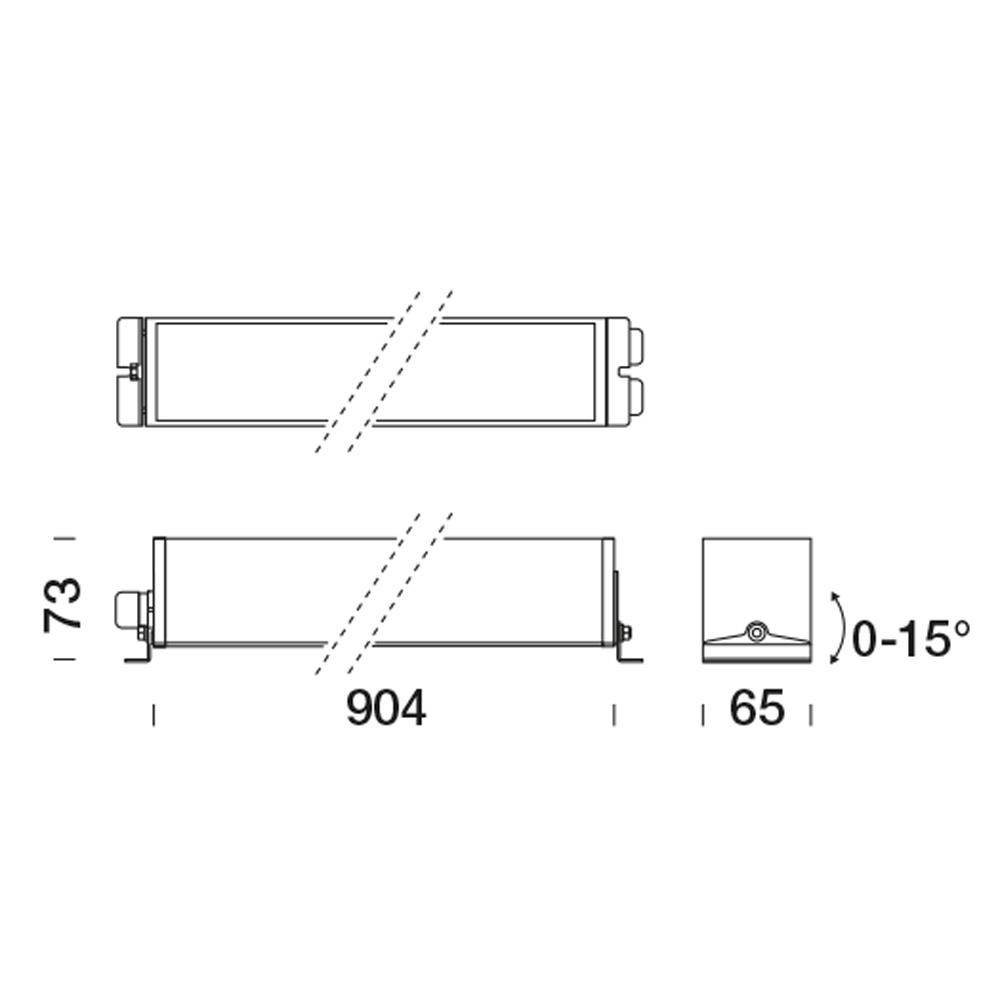

Dimensions
