Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
2,4693,000Asymmetric23135
2,5973,000Forward Throw23135
2,5173,000Asymmetric Long23135
2,4403,000Long & Narrow23135
3,5683,000Asymmetric33135
3,7173,000Forward Throw33135
3,6033,000Asymmetric Long33135
3,5133,000Long & Narrow33135
4,6593,000Asymmetric42135
4,8353,000Forward Throw42135
4,6853,000Asymmetric Long42135
4,5943,000Long & Narrow42135
5,2443,000Asymmetric50135
5,4403,000Forward Throw50135
5,2723,000Asymmetric Long50135
5,1863,000Long & Narrow50135
6,7833,000Asymmetric63135
7,0553,000Forward Throw63135
6,8373,000Asymmetric Long63135
6,6793,000Long & Narrow63135
123

Key Features

Designed for mounting heights up to 5m, WALLPACK™ offers a wall-mounted solution with 0% up-light to fit the needs of harsh environments and applications.

  • Lumen packages from 3,000 - 9,000 lumens with efficacies of up to 135 lumens per Watt.

  • 4 optimised optical distributions (Asymmetric, Asymmetric Long, Long & Narrow and Forward Throw) delivered by quality LEDS and bespoke UV stabilised PMMA optics.

  • LED light engines with 0% ULOR ensuring night time friendly and BREEAM compliant

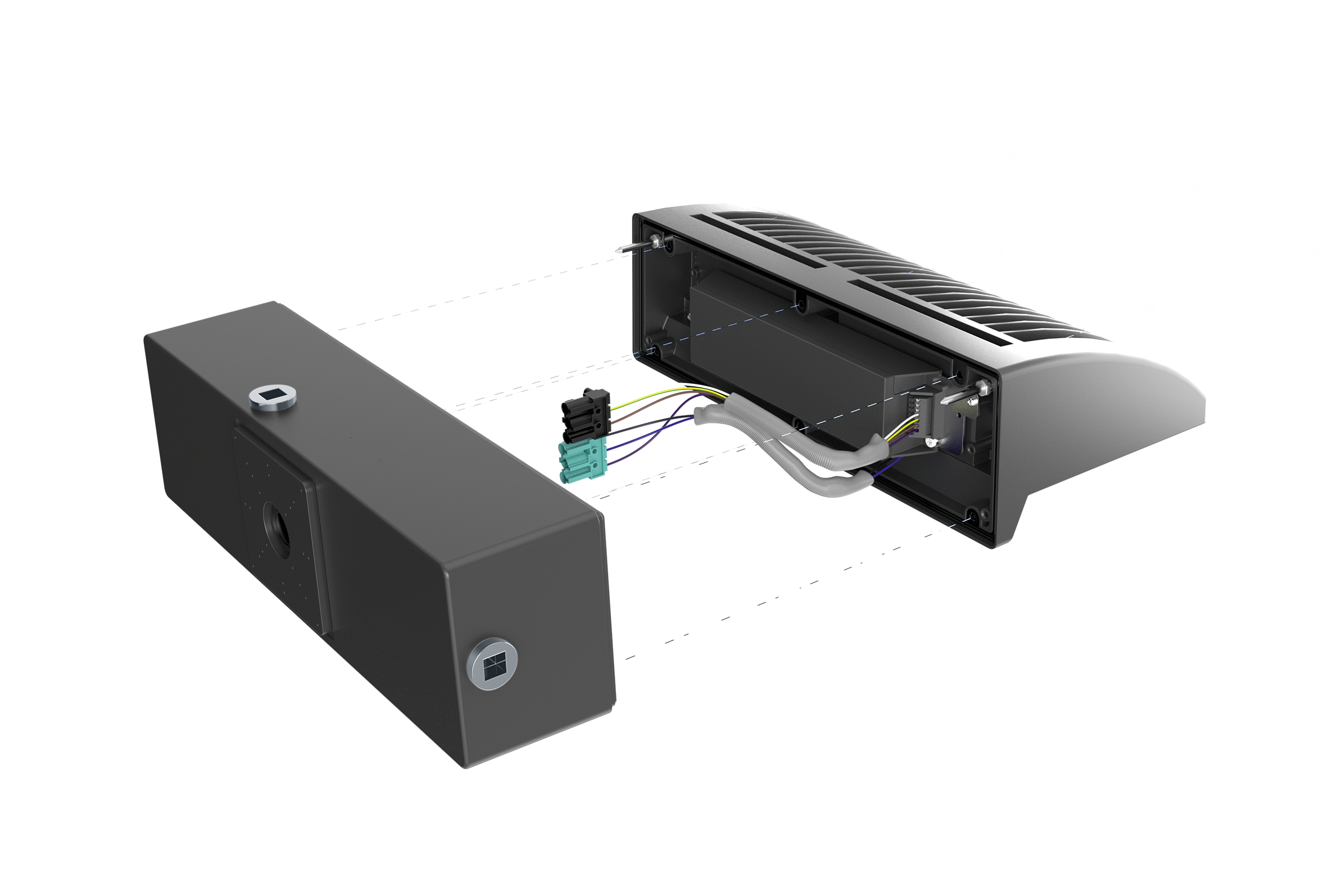

  • 2-part housing aids easy installation and access for maintenance if replacing drivers or emergency batteries.

  • Multiple cable entry points including rear, top, bottom and side ensures flexible options depending on project requirements.
  • Integrated controls options including, 5/7-pin NEMA sockets and D4i integration. Compatibility with a range of 3rd party photocells, devices and sensors.

  • Integrated 1hr & 3hr emergency options.

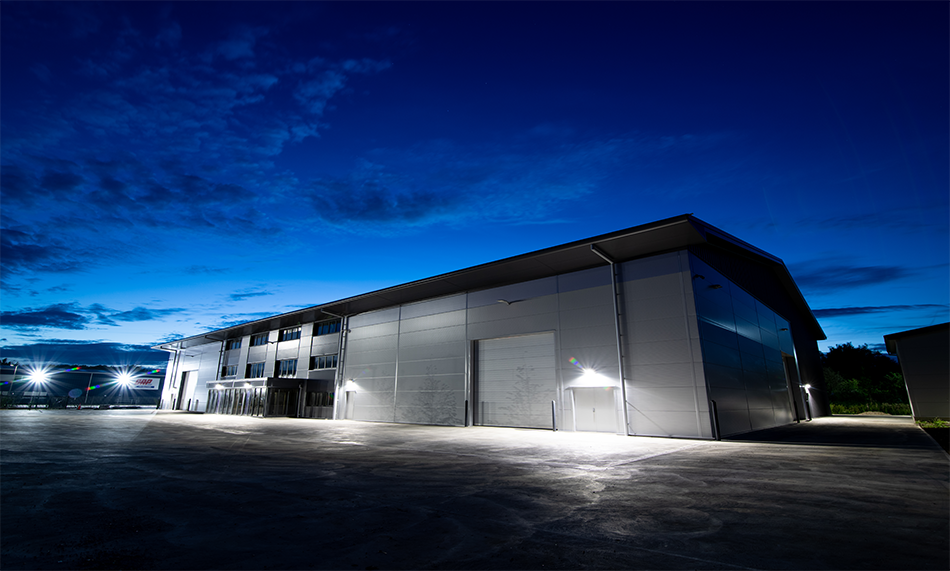

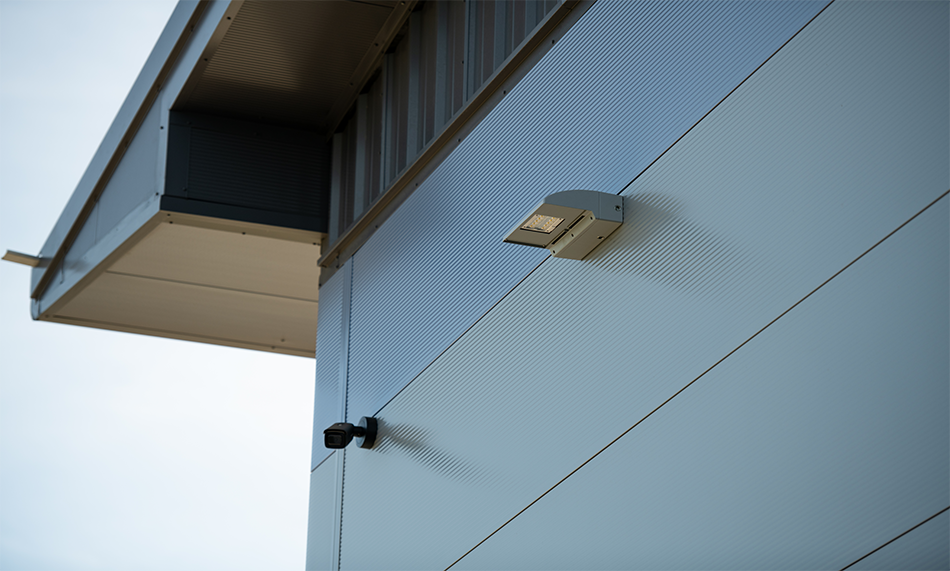

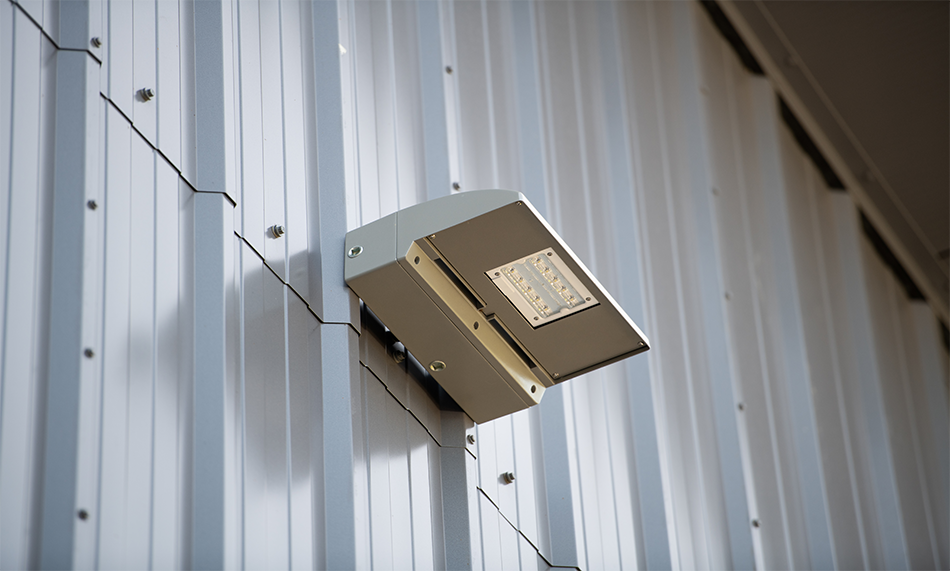

Applications

Distribution

Asymmetric
Asymmetric Long
Forward Throw
Long & Narrow

Specification

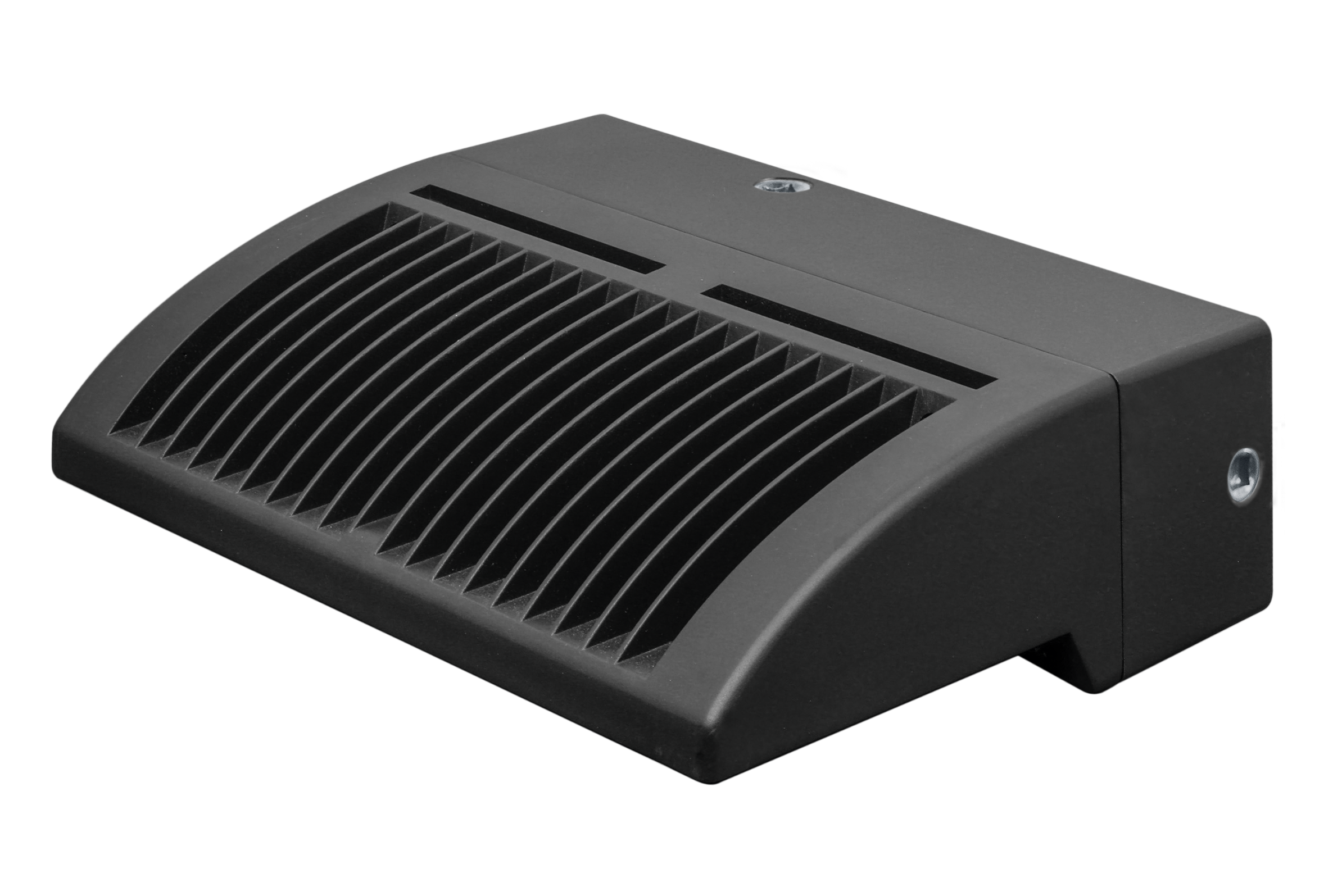

Two-piece die-cast aluminium housing, that conforms to EN1706 AC-46500, with integral heat sink fins to optimise thermal management through conductive cooling. 1 or 2 ×10 LED modules are IP65 with individual lenses. The high grade aluminium housing transfers heat away from the LEDs and dissipates heat through the finned housing for cooling.

The LED driver is mounted separately from the LED modules to promote low operating temperature and long system life. Housing is completely sealed against moisture and environmental contaminants (IP65). Luminaire is suitable for wall mounting only. Installation via the rear-housing with cable entry via rear, top, bottom or sides.

3000K or warmer must be selected for IDA dark sky certification.

Copy specification to clipboard

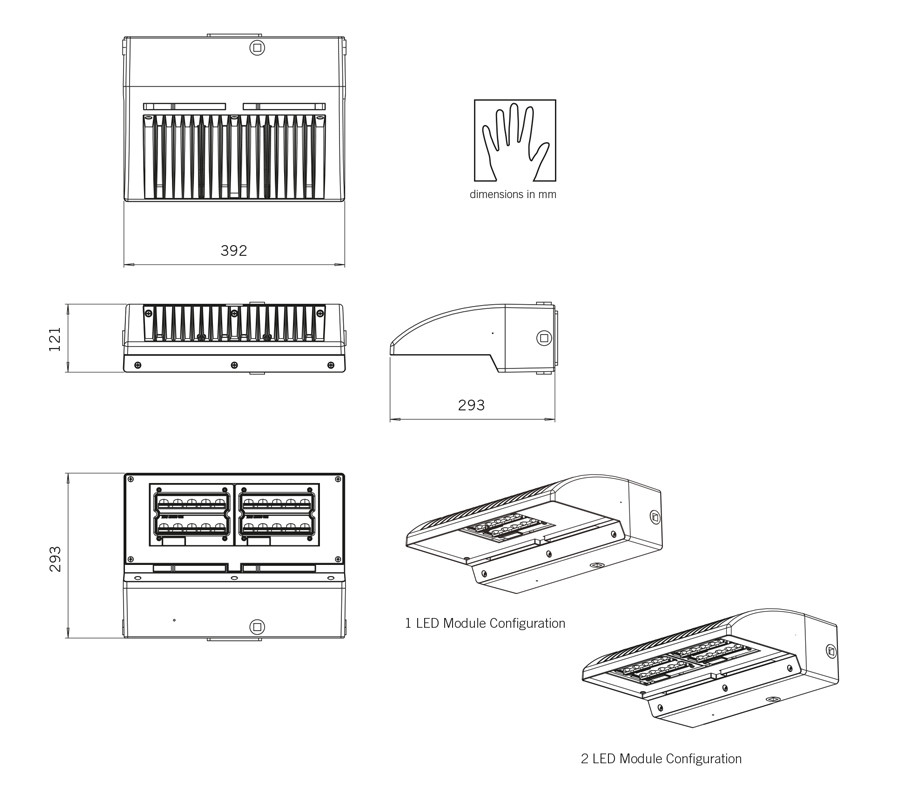

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
