Denver™ iD: Pole

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
1,9452,700Asymmetric15144
2,8782,700Asymmetric24144
4,0382,700Asymmetric30144
4,9602,700Asymmetric38144
5,8722,700Asymmetric48144
7,1742,700Asymmetric49144
8,1352,700Asymmetric57144
9,2182,700Asymmetric66144
10,3912,700Asymmetric69144
11,4912,700Asymmetric78144
12,5532,700Asymmetric87144
1,9663,000Asymmetric15144
2,9103,000Asymmetric24144
4,0803,000Asymmetric30144
5,0033,000Asymmetric38144
5,9423,000Asymmetric48144
7,2613,000Asymmetric49144
8,2183,000Asymmetric57144
9,2993,000Asymmetric66144
10,5223,000Asymmetric69144
12345678910...
Download all Photometry and BIM Data

Key Features

Featuring a patented Transition Zone the Denver iD: Pole offers improved visual comfort and lower perceived glare; perfect for the unique requirements of pedestrian-friendly amenity spaces.

Coupled with the latest LED technologies, smart controls integration and class-leading optical performance the new Denver iD: Pole truly brings together form and a feature rich luminaire system.

The Denver iD: Family consists of Pole, Wall and Bollard luminaires, offering the complete solution to your next outdoor environment.

  • Lumen packages from 2,000-12,000 lumens that allows a variety of applications challenges to be met.

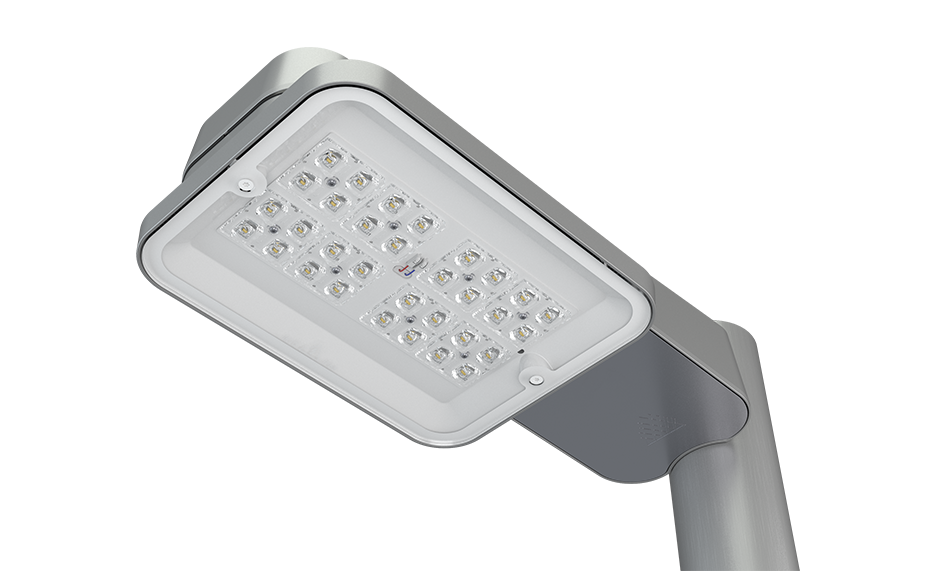

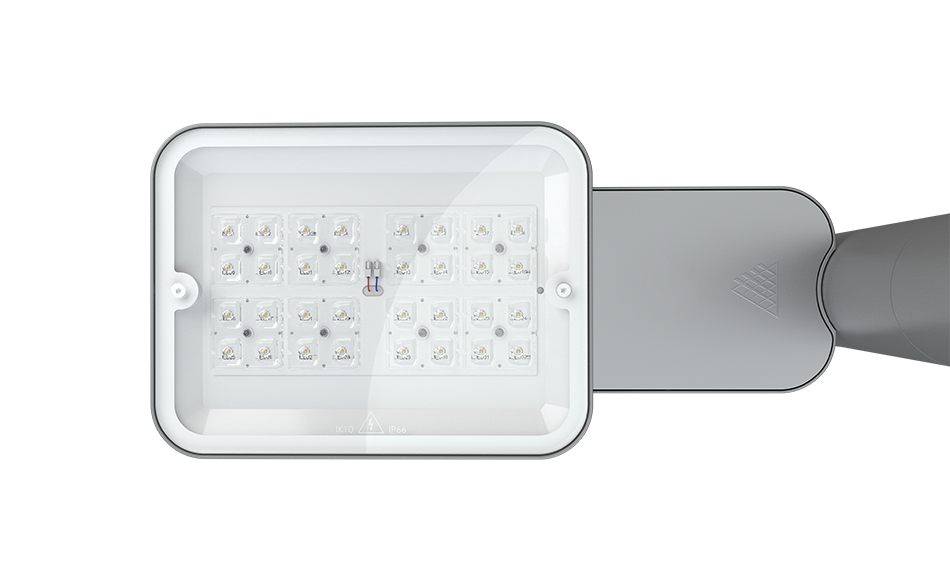

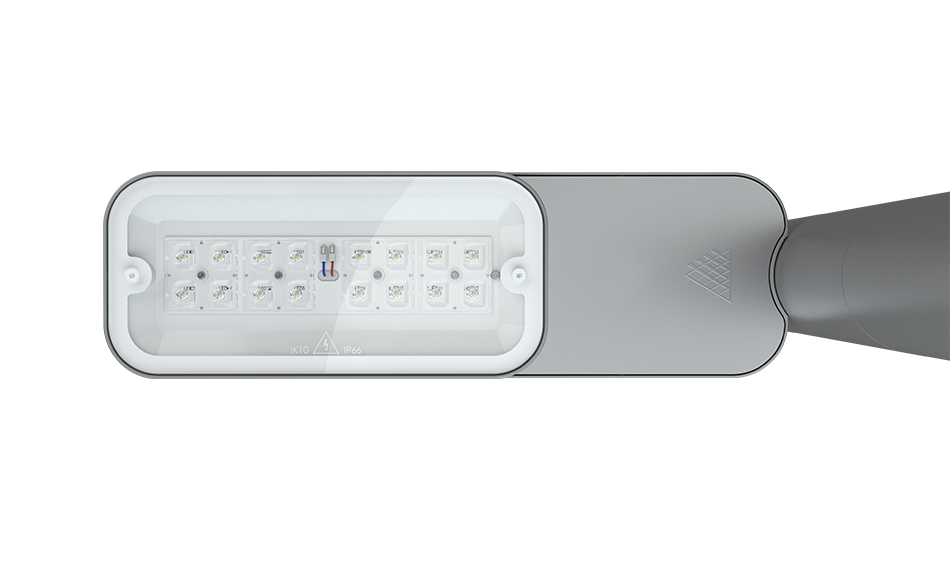

  • 5 optimised optical distributions delivered by LEDS with individual lenses behind a high-transparency hydrophilic glass cover.

  • Patented Transition Zone helps to achieve improved visual comfort and lower perceived glare.

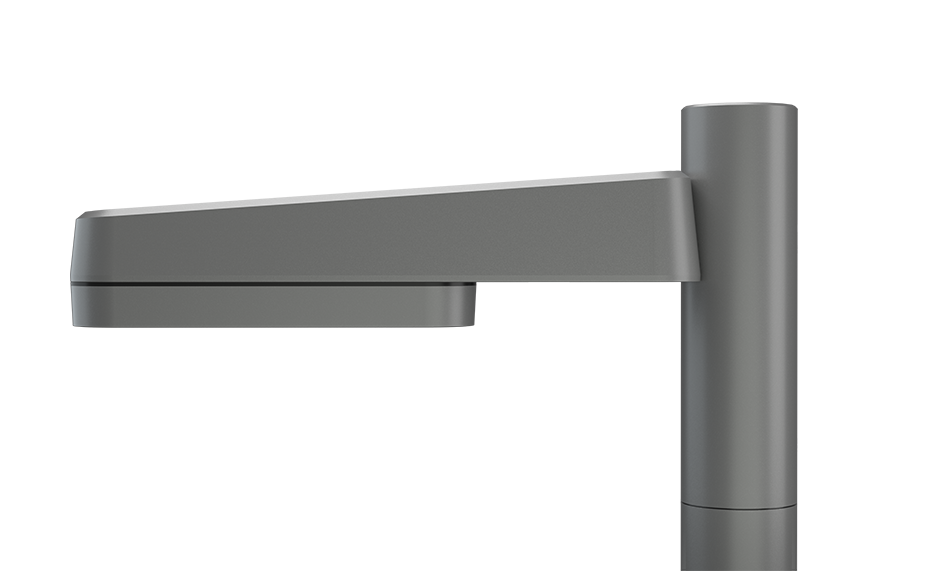

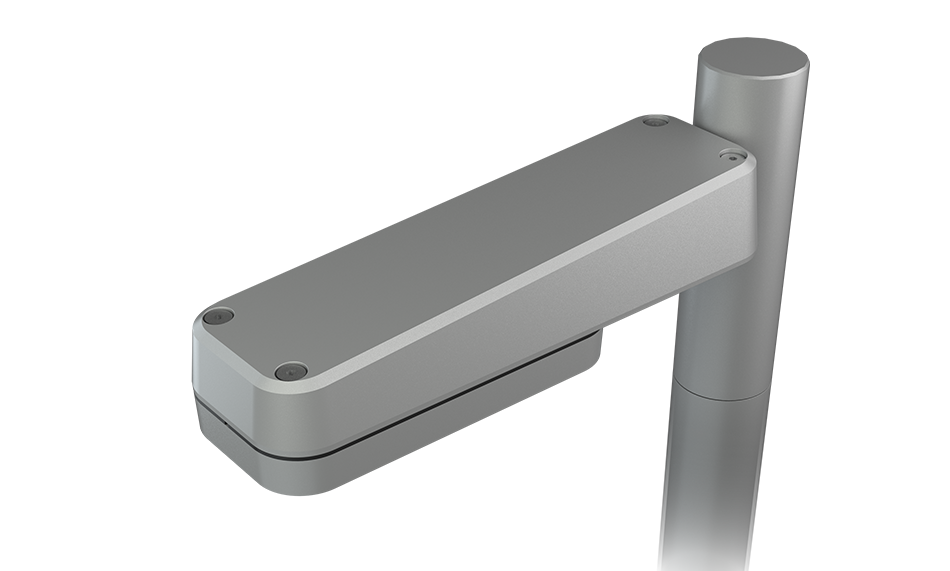

  • Bespoke post-top bracket required to facilitate mounting to a range of column spigot diameters.

  • A removable/upgradeable LED module and easy access to gear compartment ensures that key components can be removed and replaced if required.
  • Integrated ZD4i compatibility enabling connectivity. Compatibility with a range of 3rd party photocells, devices and sensors.

  • Compatible with Controlux Air.

Applications

Distribution

Asymmetric
Forward Throw
High Beam Long & Narrow
Long & Narrow

Specification

Holophane Denver iD: Pole consists of a 2-part body and a removable LED module manufactured from LM6 marine grade die-cast aluminium with integrated thermal management properties. The LED module optical arrangement consists of LEDs with individual PMMA optical lenses surrounded by a patented white Transition Zone to reduce perceived glare. This is sealed behind high-transparency ‘hydrophilic’ glass. Both luminaire body and LED module are sealed to IP65 and rated IK10. Drivers and LED are mounted separately from each other to promote low operating temperatures and long system life. Column mounting of the luminaire is facilitated by a bespoke post-top bracket with specific interface to attach luminaire to bracket. Cable entry and termination to the luminaire is a via an IP65 cable gland. Access to the luminaire is via 4 x nuts.

3000K or warmer must be selected for IDA dark sky certification.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
