VANTAGE

Photometry Filter

Download all Photometry and BIM Data

Key Features

The Vantage luminaire helps to create safe, clean and usable environments while providing an effective and energy efficient lighting solution within demanding applications.

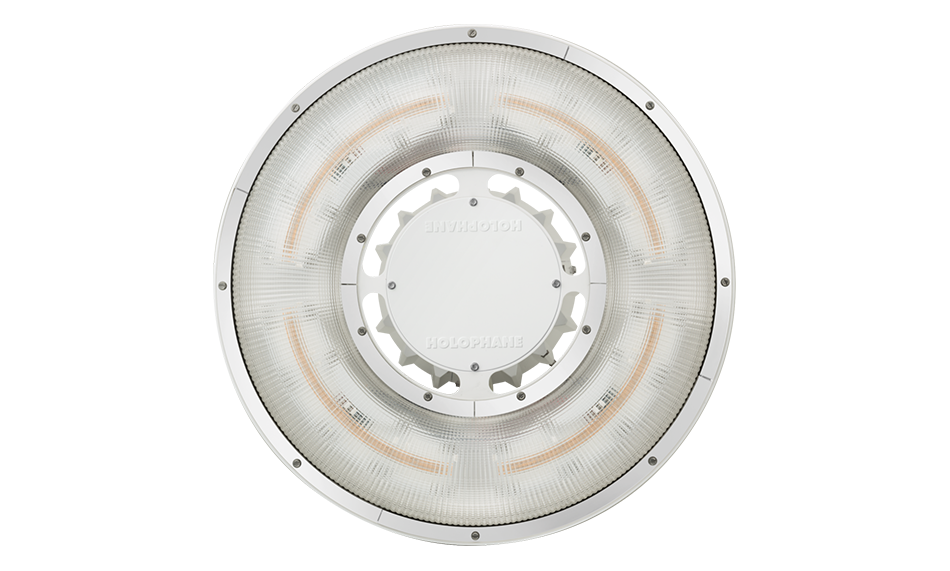

  • Fully sealed optical chamber with a single piece prismatic lens that maximises light output and controls glare.
  • Two distributions developed using an LED system that ensures superior uniformity and maximises spacing.

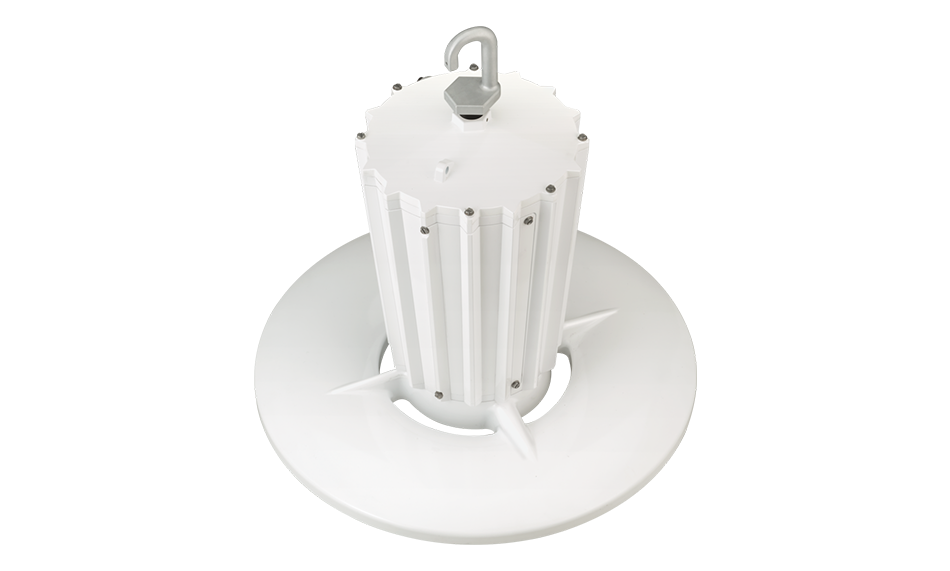

  • Design ensures water is allowed to run off the luminaire and that there is nowhere for food, dirt or debris to hide or accumulate.
  • DALI compatible driver as standard option enabling dimming facility.

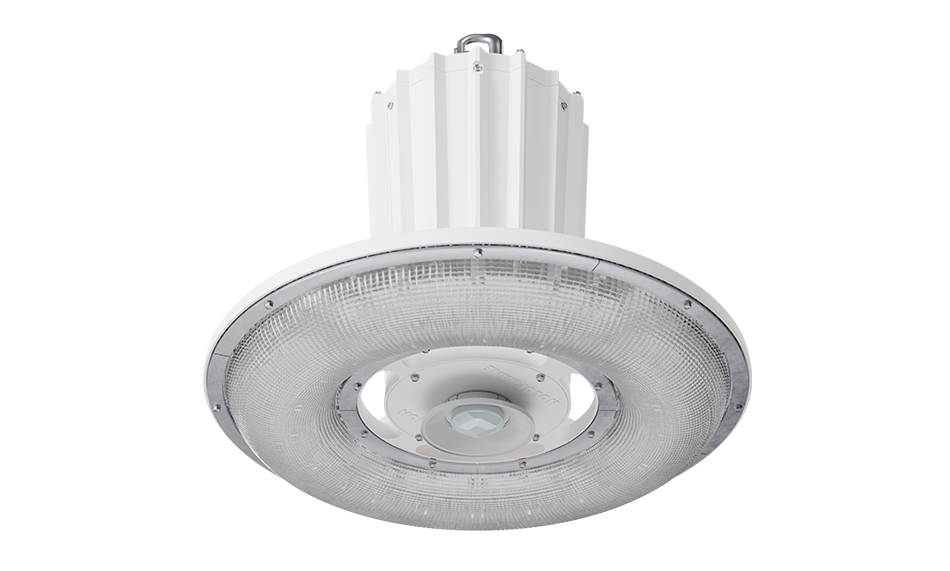

  • Integrated 360° PIR available for mounting of 3m to 13m.
  • Available with internal DC fuse to accept 170-275V DC. Luminaire will dim to 15% output when powered by VDC.

Applications

Distribution

Specification

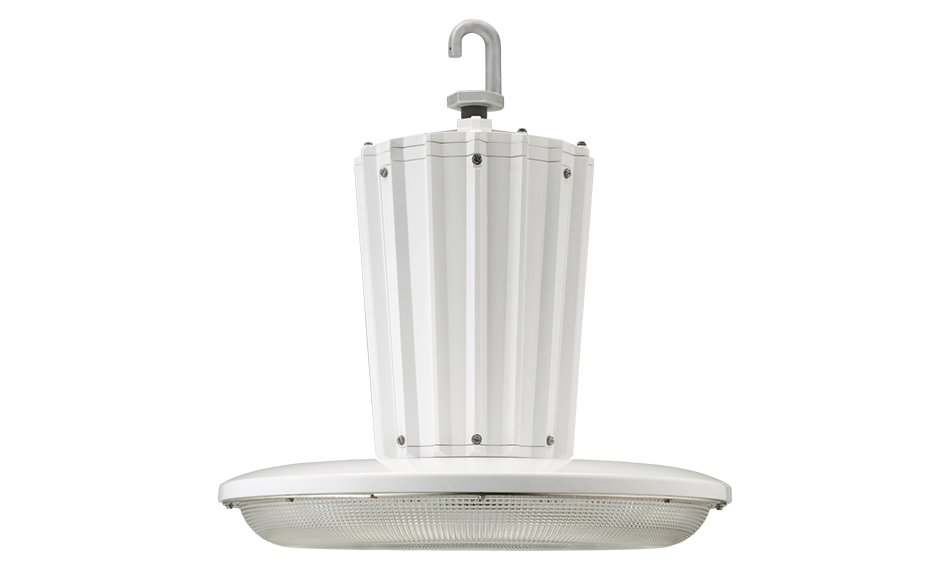

The luminaire shall consist of a single injection moulded high temperature acrylic prismatic lens that delivers a medium or wide distribution. The prismatic lens is mounted with specially designed screws and washers to hold the prismatic lens in place and ensure an IP65 seal is maintained. The luminaire chassis is manufactured from LM2 die cast aluminium to maximise heat transfer from the metal core LED light engine. The gear chamber housing the electronic drivers is manufactured from extruded aluminium (6063-T6) which is sealed with a die cast aluminium top.

 Copy specification to clipboard

Dimensions
