Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
4,9003,000Street - Midnight
3,6853,000Asymmetric - Midnight
5,1004,000Street - Midnight
3,8304,000Asymmetric - Midnight
5,7703,000Street - DALI Dimmable
4,0203,000Asymmetric - DALI Dimmable
5,9754,000Street - DALI Dimmable
4,2054,000Asymmetric - DALI Dimmable

Key Features

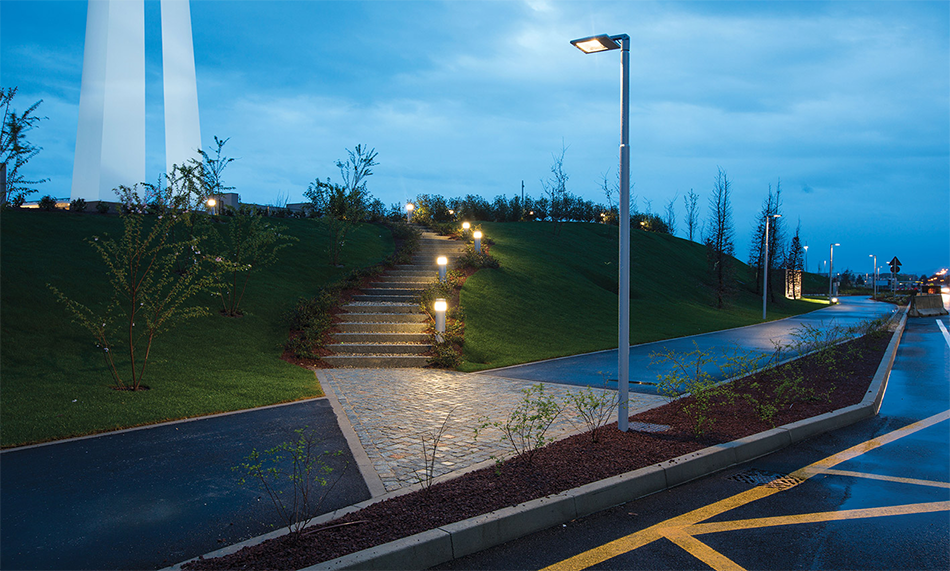

TARSIUS is equipped with a swivel adjustable with a pitch of 10°. A product designed to illuminate public areas, squares, car parks, cycle paths, it is also available in a version with smart driver which self-reduces the flow after midnight. TARSIUS is normally installed on poles with a height ranging between 4 and 8 meters.

Applications

Distribution

Asymmetric - DALI Dimmable
Asymmetric - Midnight
Street - DALI Dimmable
Street - Midnight

Specification

Die-cast body and flange made of aluminium alloy with very low copper content. High reflection anodized aluminium reflector. A4 Stainless steel screws. Gore valve to prevent condensing. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. PMMA diffuser Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on  products.

Copy specification to clipboard

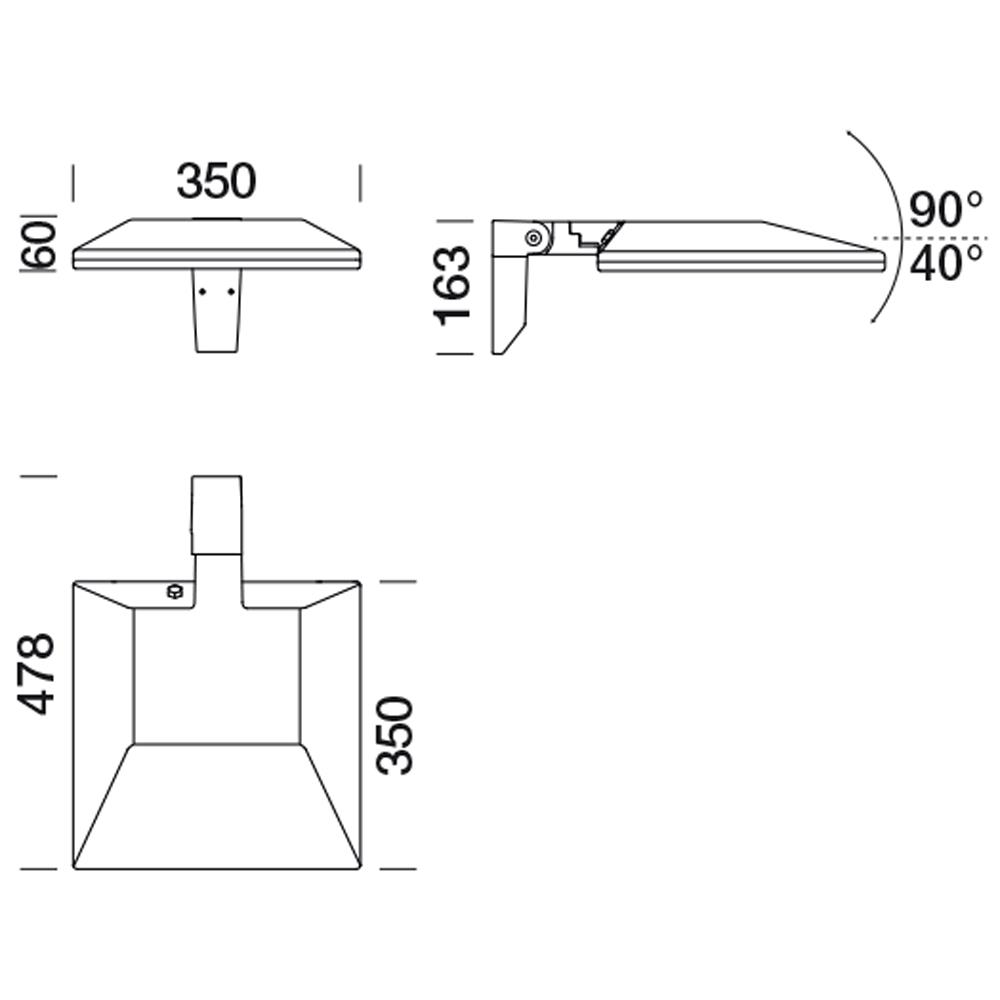

Dimensions
