Holophane - OBLO'

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

108°

28°

45°

9°

Elliptical

Lumen (lm)	Colour Temperature (K)	Distribution
2,100	3,000	108°
2,185	4,000	108°
2,950	3,000	108°
3,070	4,000	108°
2,010	3,000	28°
2,090	4,000	28°
1,895	3,000	45°
1,970	4,000	45°
2,150	3,000	9°
2,240	4,000	9°
1,870	3,000	Elliptical
1,945	4,000	Elliptical

Download all Photometry and BIM Data

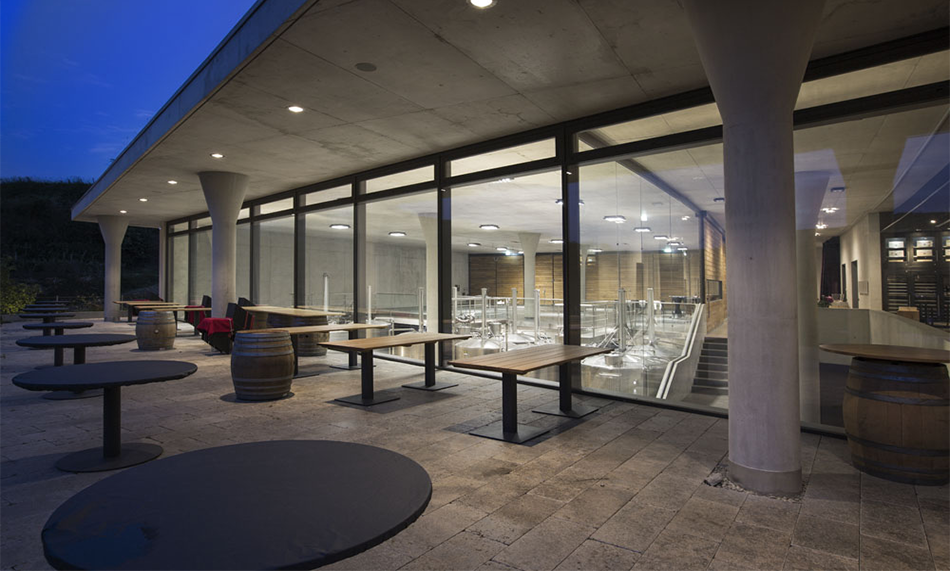

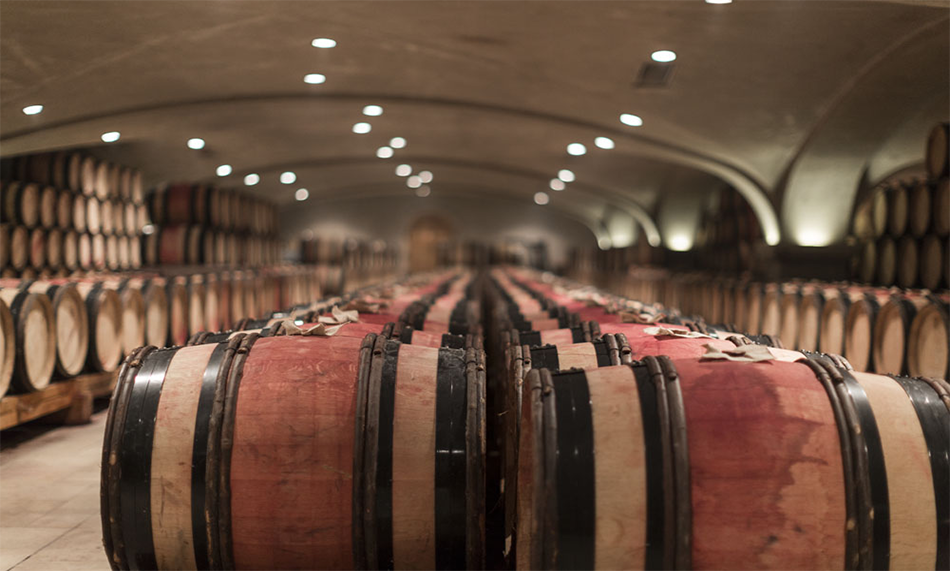

Gallery

Key Features

The result is a product by the ephemeral grazing presence on the surface of the ceiling. The narrow external ring makes OBLO a product from the discreet presence even when it is off. It is available with light sources in dynamic or monochromatic light.

Applications

Internal

Residential

Public Spaces

Distribution

108°

28°

45°

9°

Elliptical

Specification

Die-cast body made of aluminium alloy with very low copper content. Closing flange in painted steel. A4 Stainless steel screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on products.

Copy specification to clipboard

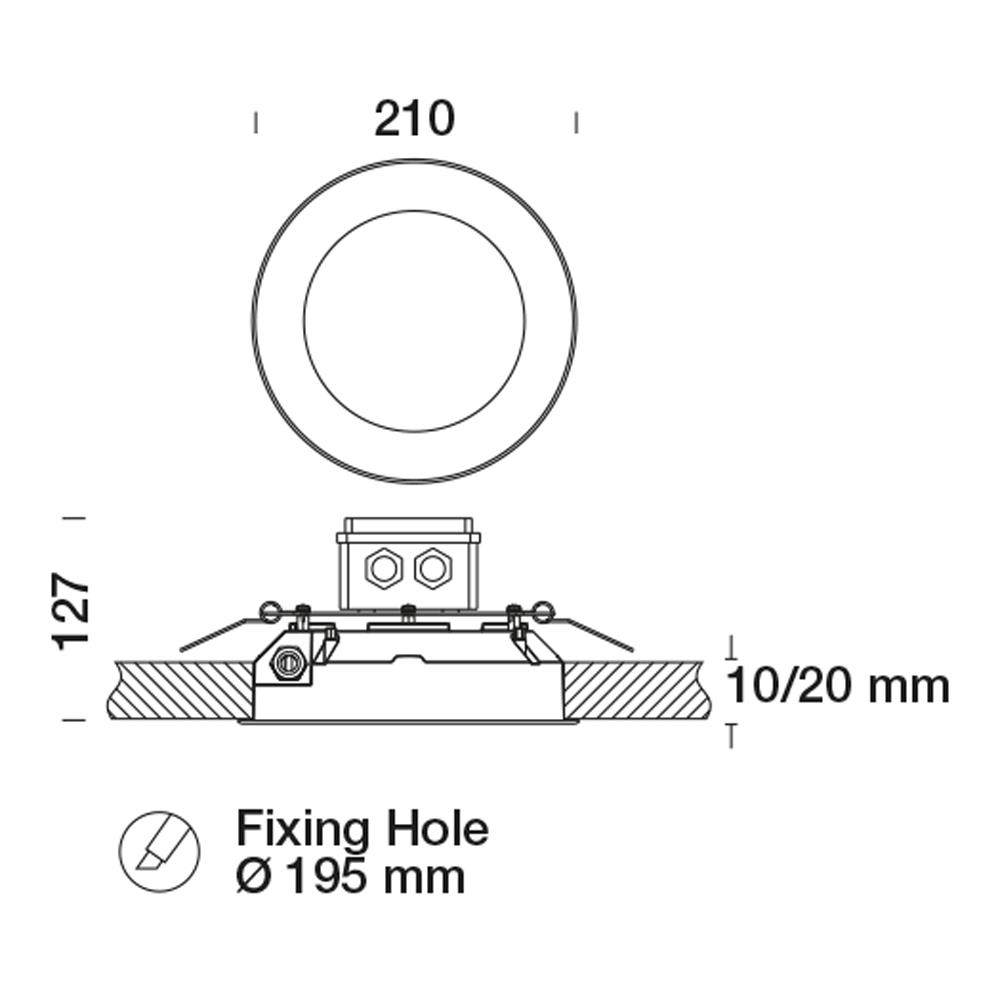

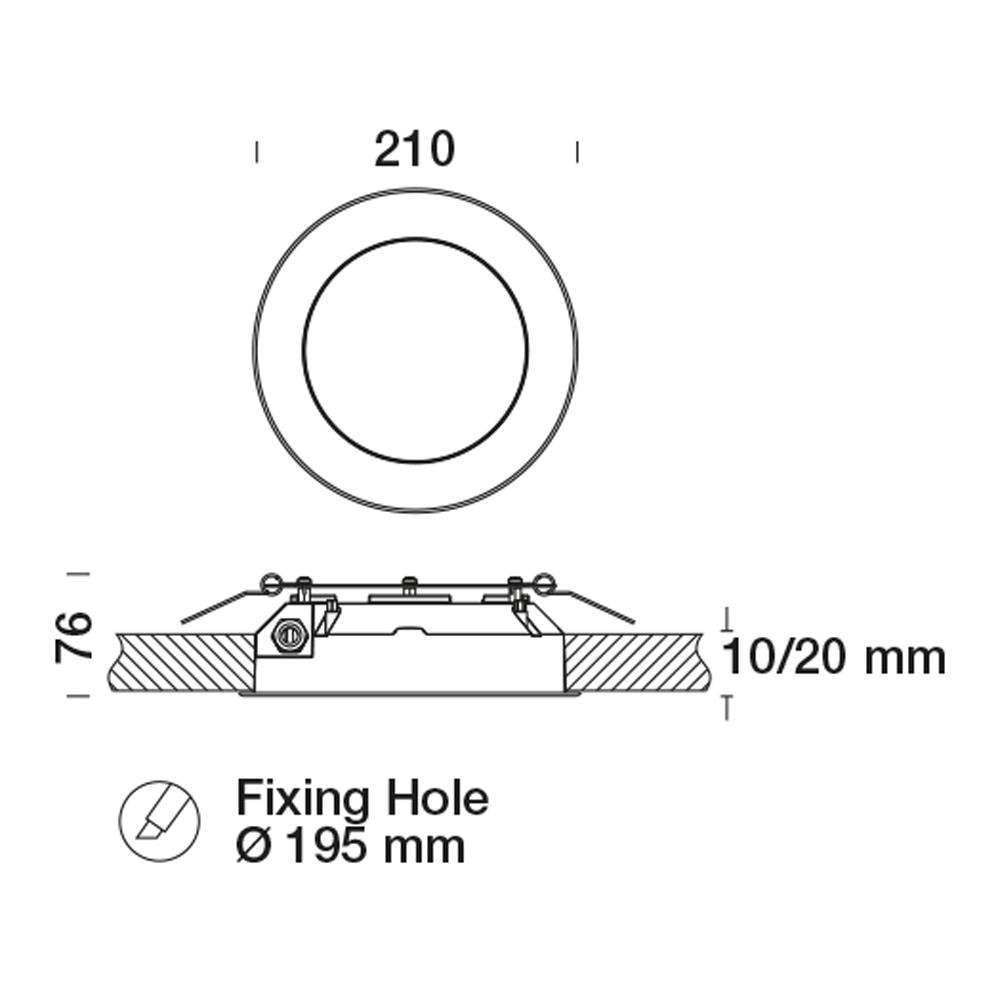

Dimensions

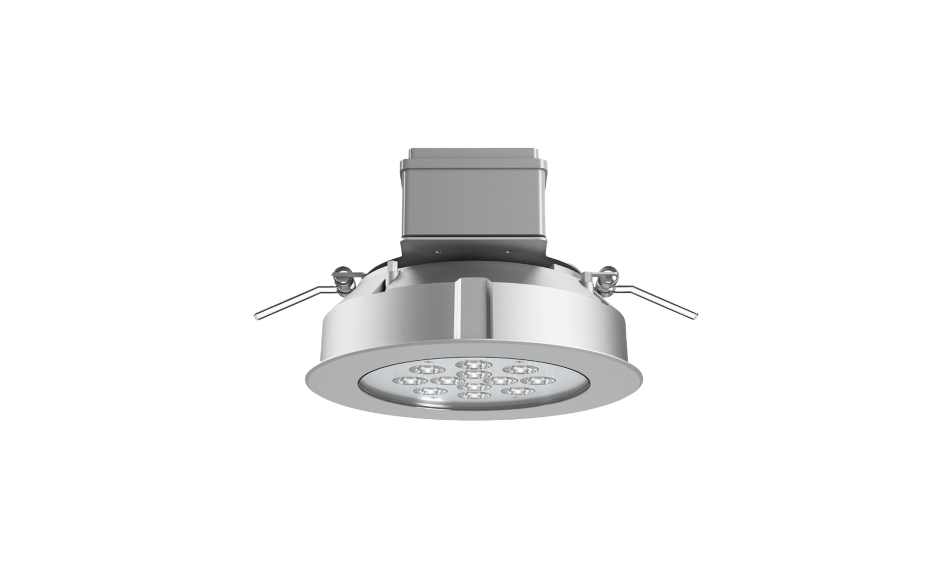

OBLO'

Product code: OBL

A series of ceiling recessed fittings by minimalist design: all its components are engineered to have minimum thicknesses.

Lumen	1,870 - 3,070
Power consumption	16 - 26
Distributions	5
IK Rating	IK08
IP Rating	IP65
Colour range	3,000 - 4,000
